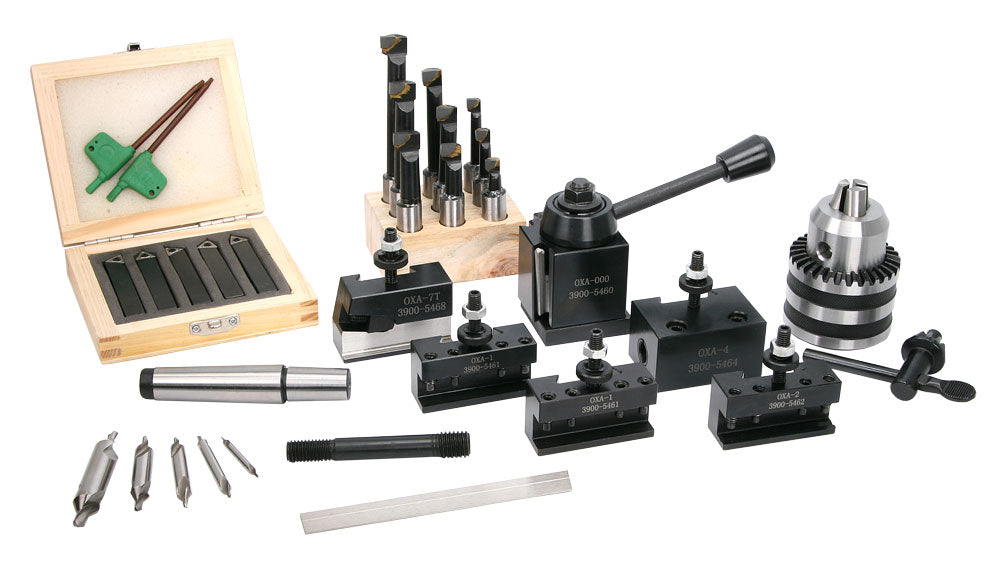

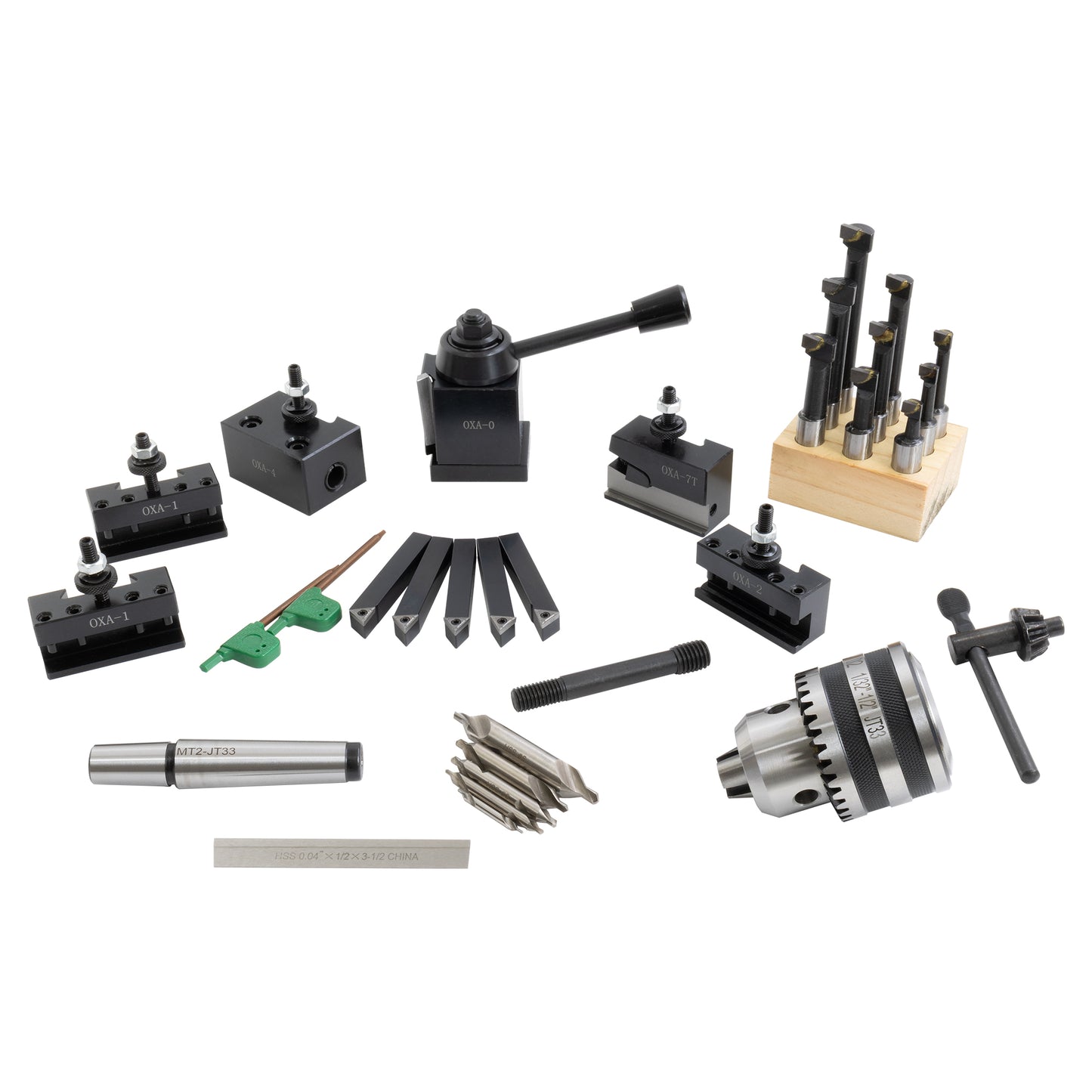

Bench Lathe Tooling Package, Basics + OXA QCTP

Bench Lathe Tooling Package, Basics + OXA QCTP

$319.95
$319.95
Sale Sold out
Shipping calculated at checkout.

In stock

4217 (BUNDLE)

Key Features

  • 0XA QCTP Set with post mount for SC4 Lathes
  • 3/8" Indexable TCMT Inserts, P1 Cut-Off Blade
  • 1/2" Drill Chuck, 2MT Standard to 33JT Drill Chuck Arbor
  • 9-piece carbide Boring Bar Set - 1/2" shank
  • 5 Center Drills (sizes 1-5)

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

If you have a bench lathe and work on smaller project with smaller tools (1/4", 5/16" etc.) and OXA tool post is a good option. If working on larger project or using larger tools, we recommend the AXA tool post.

This tooling package contains premium quality tooling and the hardware to replace a stock turret tool post for a LittleMachineShop.com HiTorque 8.5" Swing Bench Lathes. Also fits SIEG C4, SC4, and SC50 Lathes

Includes a 0XA (Series 000) quick change tool post set (3112) and a mounting post (4117). This set includes the tool post and the following tool holders:

  • 2 - #1 Turning and Facing
  • 1 - #2 Boring, Turning and Facing
  • 1 - #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars
  • 1 - #7 Universal Parting Blade (for 1/2 inch cut-off blade - horizontal
The quick-change tool post is made from hardened steel. No tools are required to change tools. Additional tool holders are available. It may require some work in order to make a T-slot nut, to mount this QCTP on your lathe.

The turning tool holders accept tools up to 1/2" shank. The turning and boring tool holder accepts boring bars with up to 1/2" round shanks. The cut-off tool holder holds 1/2" tall parting blades.

This set also includes:

  • The 1/2" capacity drill chuck (1212) is mounted on a standard 2 Morse taper arbor (2955). The rated capacity of the drill chuck is 1 mm (0.039") to 13 mm (0.512").
  • Set of 5 indexable turning tools (AR, AL, BR, BL, E), inserts, a wrench, and extra screws. It comes in a wooden case. The carbide inserts are TCMT-21.51 (1669).
  • The 9-piece carbide tipped boring bar set includes three different length boring bars each for minimum bores of 5/16", 3/8", and 7/16". The bore depth ranges from 3/4" to 2-1/4". Heat treated, alloy steel shanks (1247).
  • The P1 parting blade is 1/16" x 1/2" x 4-1/2" and made from M2 HSS. These T-shape parting blades provide great side clearance (1930).
  • 5-piece combined drills and countersinks (center drills). The center drill set is high speed steel and includes sizes 1, 2, 3, 4, and 5. These are 60-degree center drills. These are the sizes that are most used by bench top machinists (1230).
