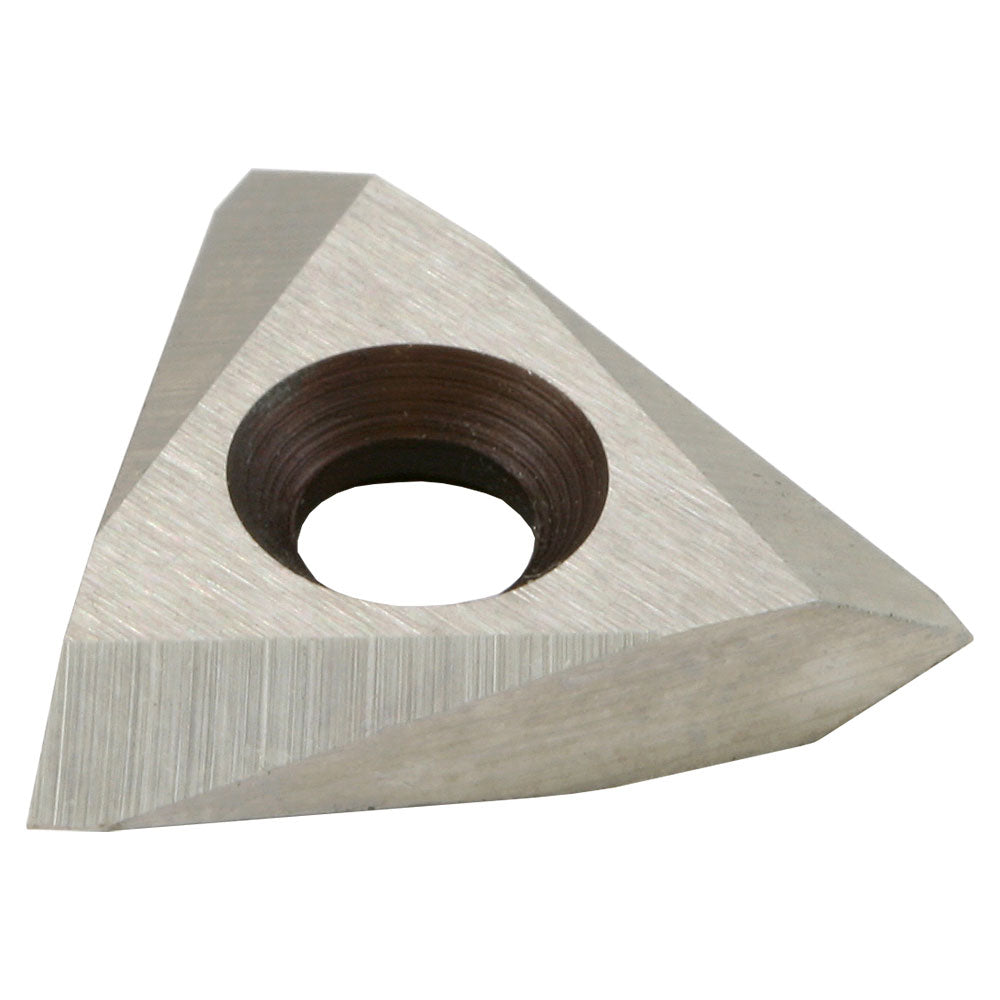

Insert, Threading, TNMC-32-NV HSS

These TNMC-32-NV inserts are made from T-15 high speed steel. Combine the advantages of high-speed steel cutting tools with the convenience of indexable tooling.

The insert has a 60-degree thread angle with a 0-degree relief angle, and a 10 degree back rake angle. The center hole is 0.150" with an 82-degree double countersink.
The inside circumference (IC) is 3/8" (0.375") and the thickness is 1/8" (0.125"). There is no chip breaker on this insert.

*NOTE: Make sure you get the correct inserts and retaining screws for your indexable turning tools. Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

T-15 is a grade of cobalt tool steel, which offers the highest hardness of most common high speed steel grades.

This heavy-duty, high-speed steel grade offers maximum cutting-edge endurance and wear resistance due to its high Vanadium content. The Cobalt content additionally lends it high temperature hardness and resistance to tempering.

We are big fans of High-Speed Steel. Find out why... What's So Good About High-Speed Steel?

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
