Insert, TPMB-322 HSS
Insert, TPMB-322 HSS
Made in United States of America (USA)
SKU:1622
In stock
Key Features
Key Features
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Description

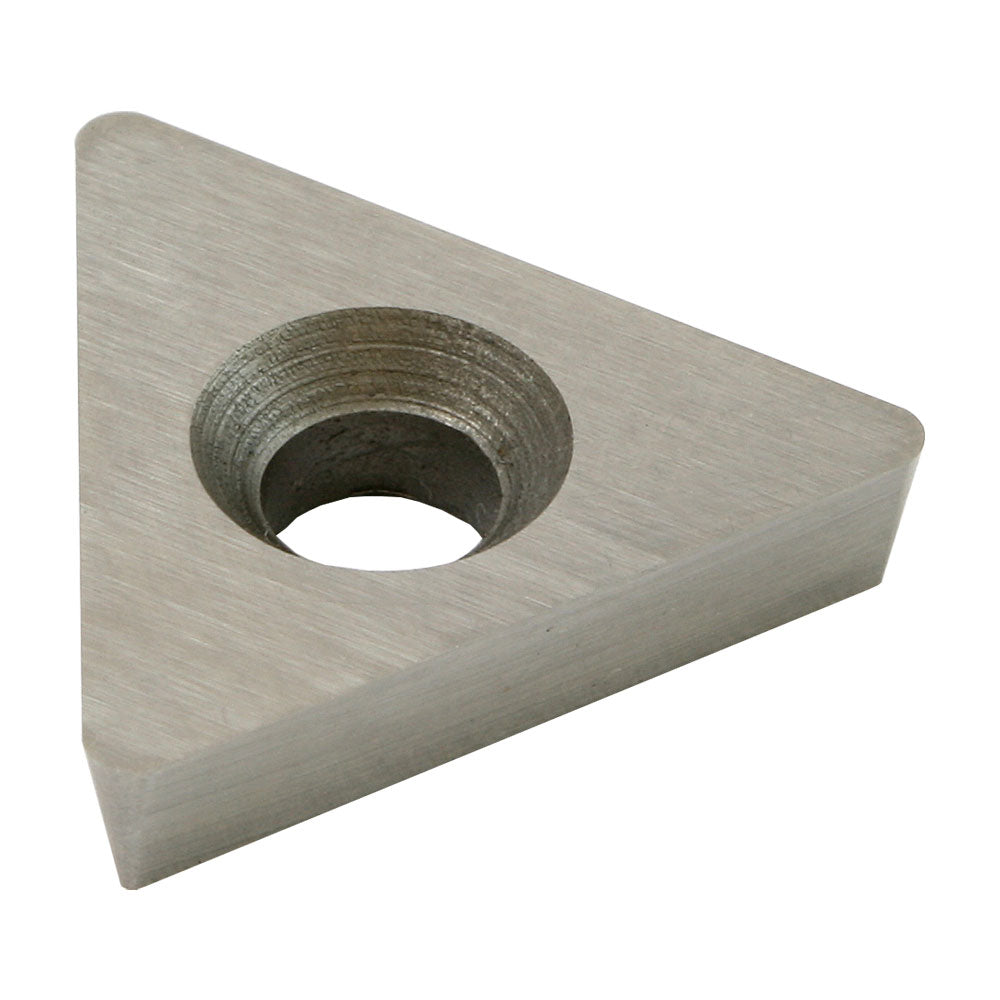

TPMB-322 insert made from T-15 high speed steel, combine the advantages of high speed steel cutting tools with the convenience of indexable tooling.

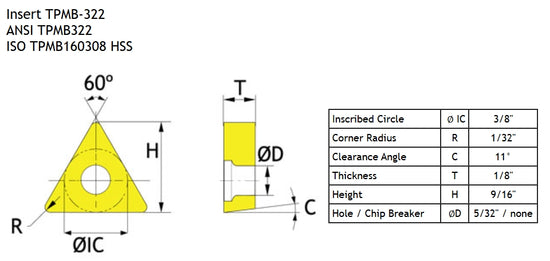

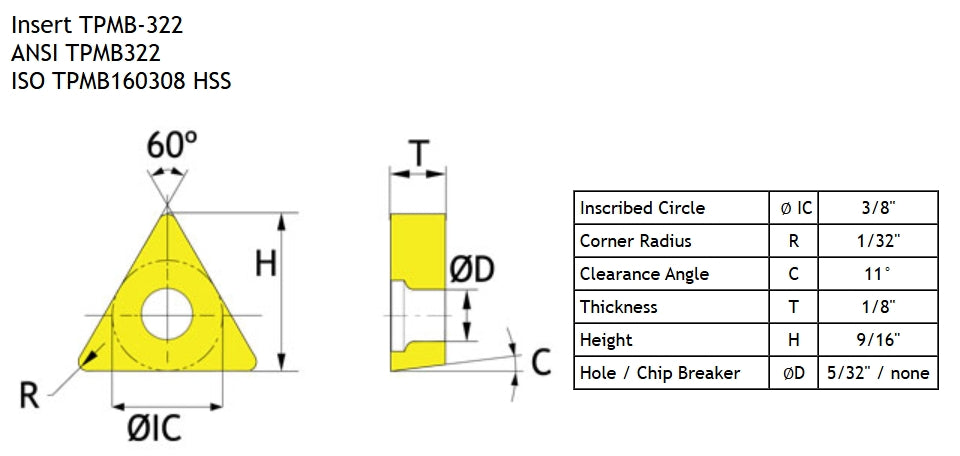

Insert is a 60° triangle with a 11° relief. The center hole is a 70°-90° single countersink, and there is no chip breaker.
It has an inscribed circle (IC) of 0.375" (3/8"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0313 (1/32").
The insert is designated TPMB322 (ANSI) or TPMB160308 HSS (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.
This high-quality insert is made in America by the Arthur R Warner company.
Inserts are sold individually—no need to buy a pack of 10 inserts.
Chris's Tips
Make sure you get the correct inserts and retaining screws for your indexable turning tools.
Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
