A R Warner

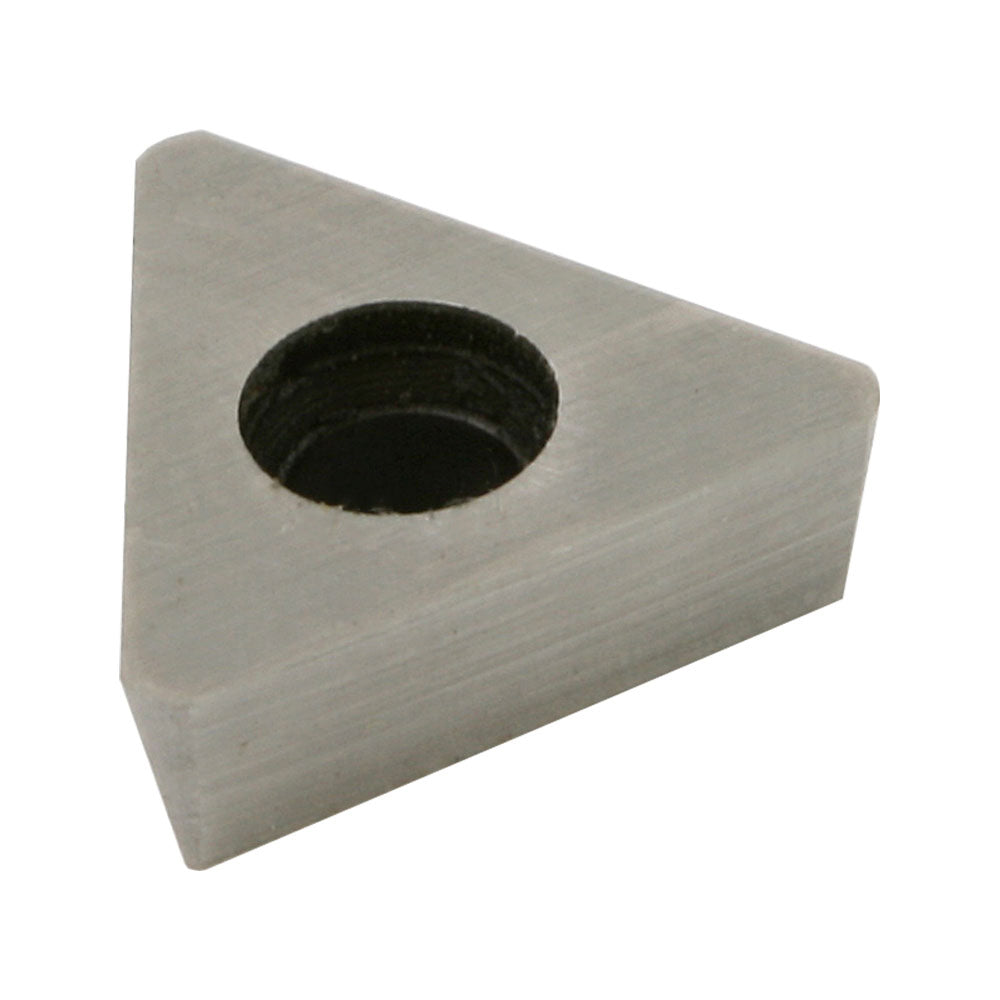

Insert, TPMW-222 HSS
Insert, TPMW-222 HSS
Made in United States of America (USA)
SKU:1621
In stock
Key Features
Key Features
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Description
TPMW-222 insert made from T-15 high speed steel, combine the advantages of high speed steel cutting tools with the convenience of indexable tooling.

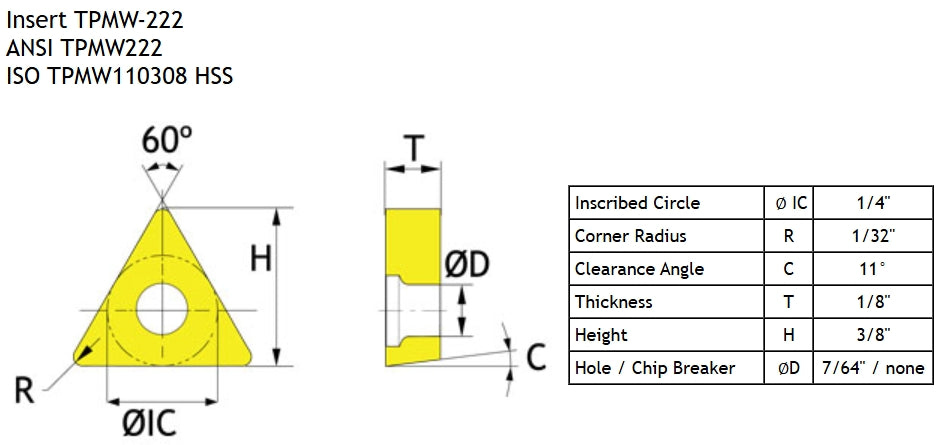

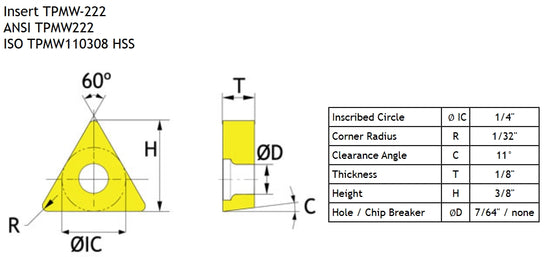

Insert is a 60° triangle with a 11° relief. The center hole is a 40°-60° single countersink, and there is no chip breaker.
It has an inscribed circle (IC) of 0.25" (1/4"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0313 (1/32").
The insert is designated TPMW222 (ANSI) or TPMW110308 HSS (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.
This high-quality insert is made in America by the Arthur R Warner company.
Inserts are sold individually—no need to buy a pack of 10 inserts.
Chris's Tips
This heavy-duty, high-speed steel grade offers maximum cutting-edge endurance and wear resistance due to its high Vanadium content. The Cobalt content additionally lends it high temperature hardness and resistance to tempering.
Make sure you get the correct inserts for your indexable turning tools.
Our chart of indexable inserts shows which inserts to use with each of our indexable tools.
