A R Warner

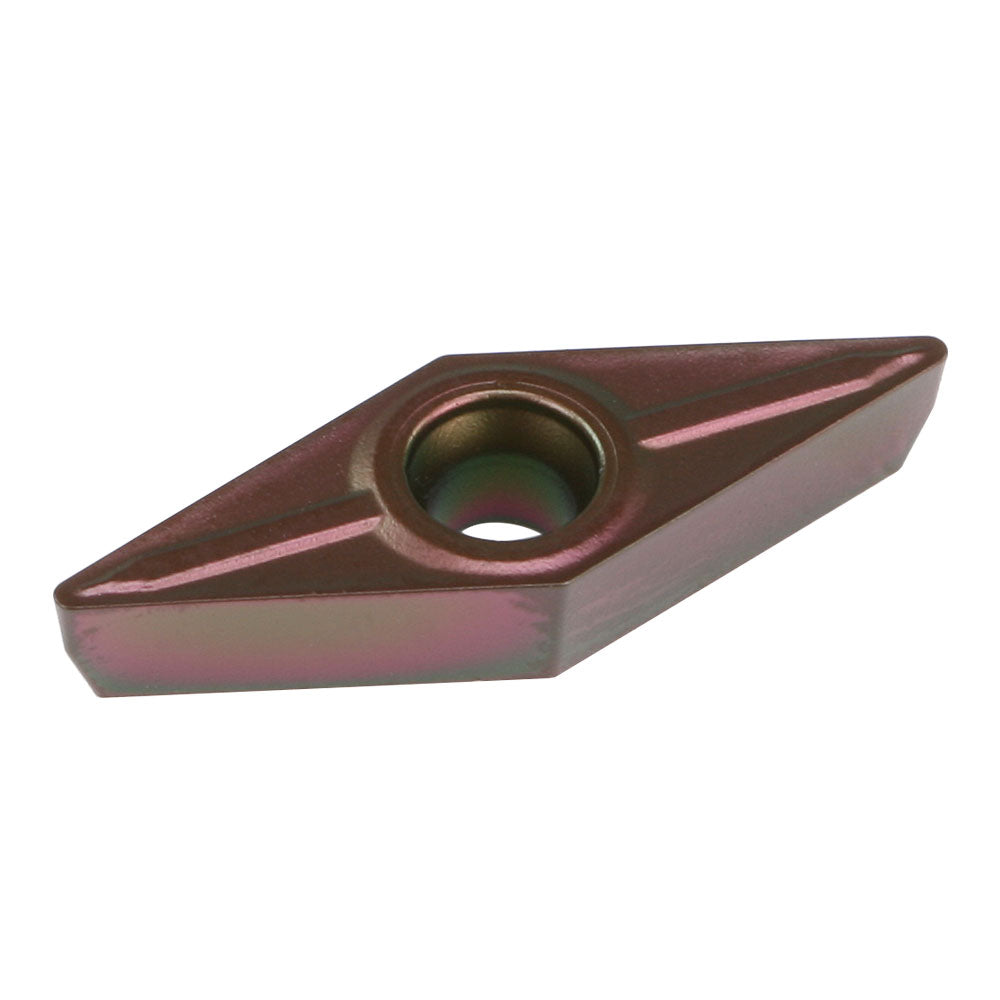

Insert, VCMT-221 Carbide

Name: Insert, VCMT-221 Carbide
Brand: Arthur R. Warner Co.
SKU: 5648
Price: 15.95 USD
Availability: InStock

Made in United States of America (USA)

$15.95

Sale Sold out

Shipping calculated at checkout.

Quantity

In stock

SKU:5648Shelf Location: (D04 - 22)

Key Features

Coated carbide
35° diamond, 7° relief
40°-60° single countersink, single-sided chip breaker
0.0156" (1/64") corner radius
ANSI: VCMT221, ISO: VCMT110304

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

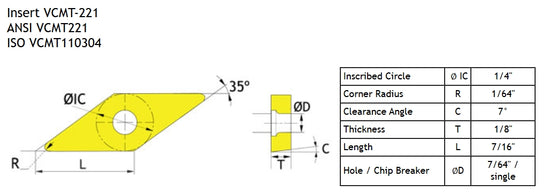

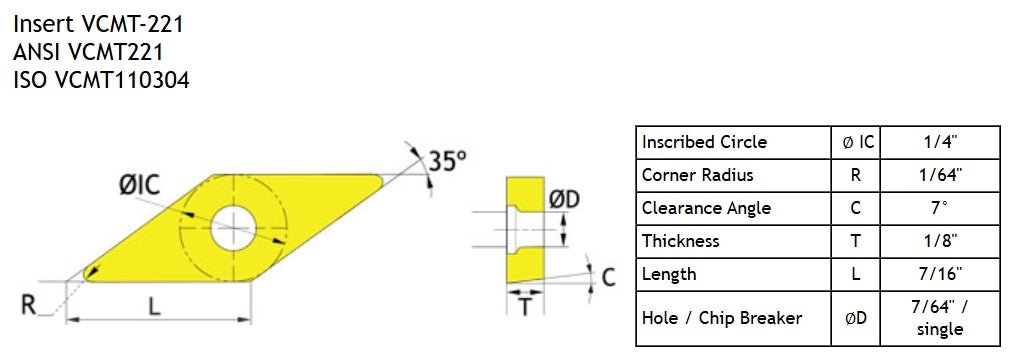

VCMT-221 carbide insert is a 35° diamond with a 7° relief. The center hole is a 40°-60° single countersink, and a single-sided chip breaker.
It has an inscribed circle (IC) of 0.25" (1/4"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0156" (1/64").
The insert is designated VCMT221 (ANSI) or VCMT110304 (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.
This high-quality insert is made in America by the Arthur R Warner company.
Inserts are sold individually—no need to buy a pack of 10 inserts.

Chris' Tips

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
