Profiling Tool, 3/8" Indexable, 35 Deg Diamond Inserts, A R Warner Kit #15

This Arthur R. Warner Co. precision profiling tool uses high speed steel or carbide inserts. Combine the advantages of high speed steel cutting tools with the convenience of indexable tooling.

This profiling tool is great for CNC applications, and can be used for most of your turning needs.

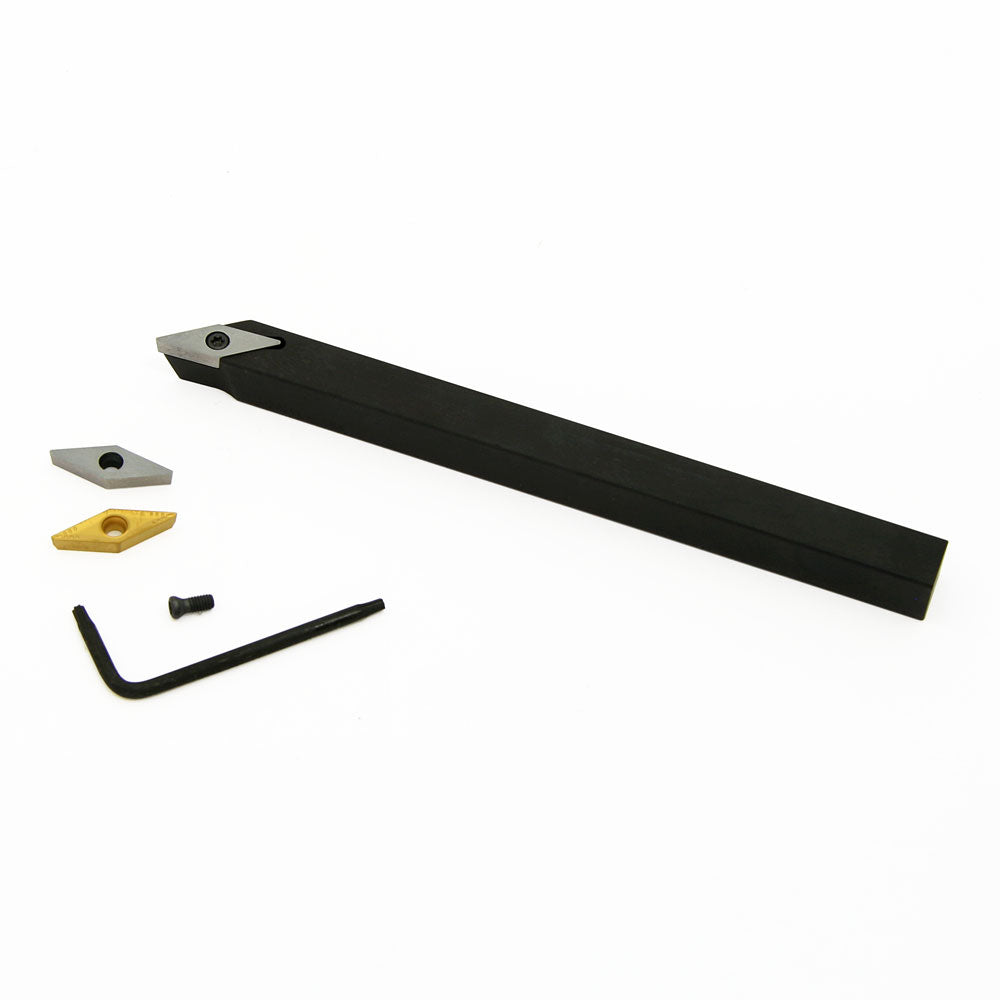

Contents:

1 Right Hand bar 3/8 inch shank 6.0 inches overall length, side angle: 3 degree

2 Inserts T-15 High Speed Steel VCMW-221

Relief : 7 degree, IC: 0.250 inch, Thickness: 0.125 inch, Hole: 0.110 inch, Top opening: 0.146 inch, Radius: 0.015 inch

1 Insert Carbide VCMT-221

Relief : 7 degree, IC: 0.250 inch, Thickness: 0.125 inch, Hole: 0.110 inch Top opening: 0.146 inch, Radius: 0.015 inch

Screws: (2) MS-1153

Wrench: T-7

The Arthur R. Warner Co. is a family-owned American manufacturer of high speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high speed steel. Their quality is excellent and LittleMachineShop.com is proud to carry their products.

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Here's a video that talks about high speed steel tooling.
