Description

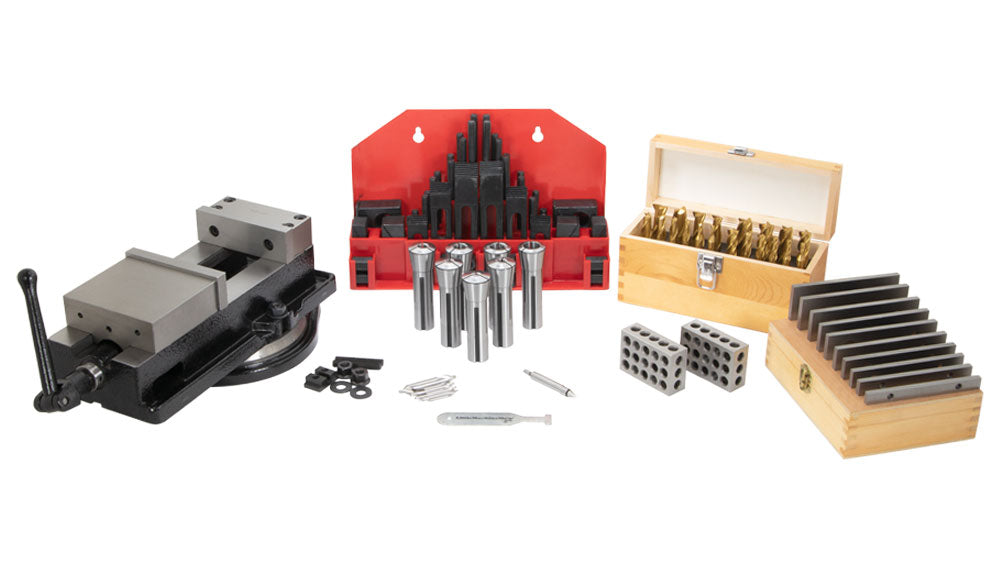

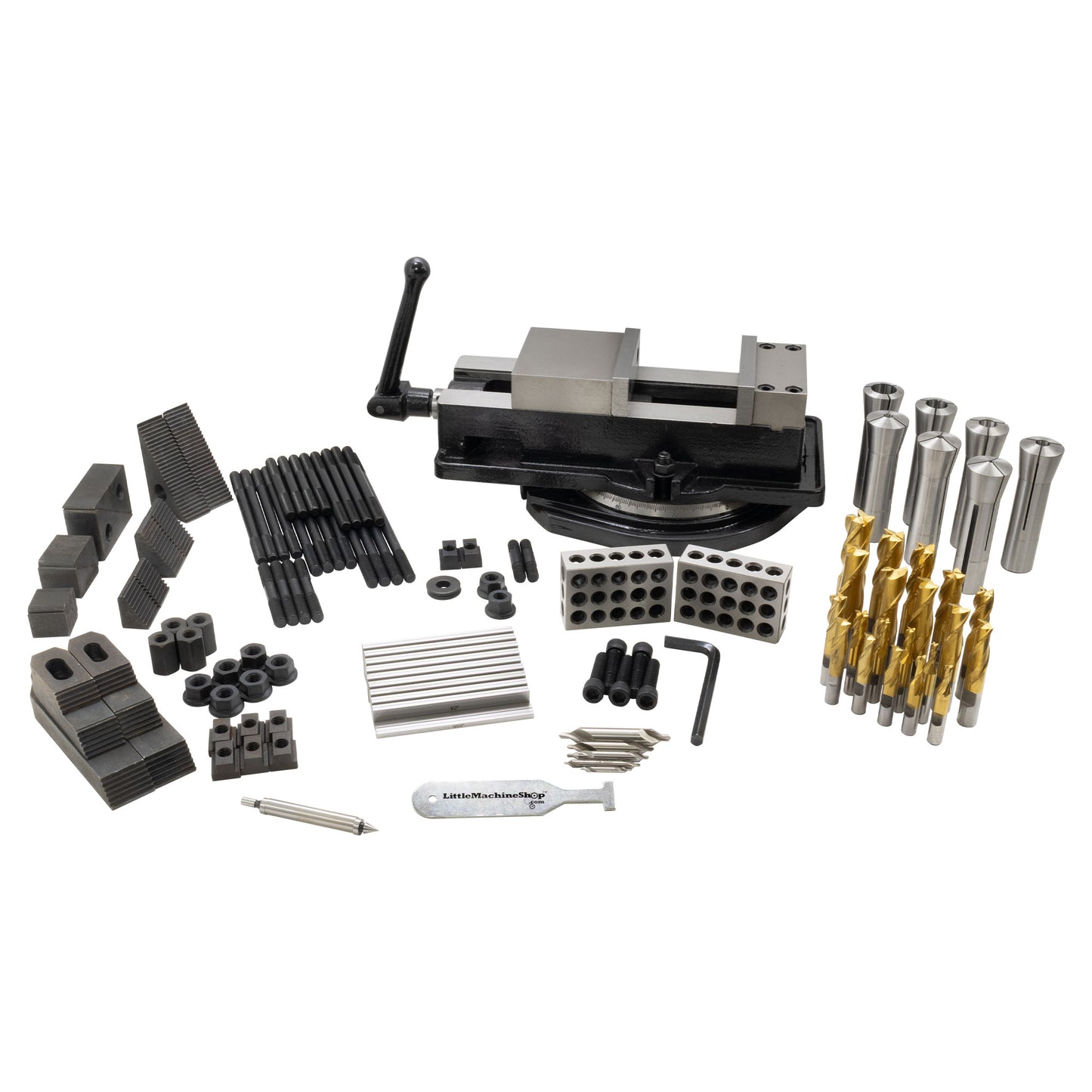

Tooling package with all the tool for an R8 large bench mill.
58-piece clamping kit 3/8"-16, 7/16" T-Slot.
Milling Vise: Precision 4" Kurt-style milling vice. The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground. The jaws are hardened and ground. The fixed jaw is bolted from the top for enhanced rigidity. The jaws are 4" wide, 1.27" deep and open 5". With the base, the vise is 9.7" wide, 13.4" long, and 4.75" high.
Thin Parallels: Set of ten pairs, 1/8" thick x 4" long, in fitted case. Made of high-grade alloy steel hardened to 52-58 RC, parallel within 0.0003" on top and bottom. Parallel Heights are 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", and 1-5/8".
End Mills: TWO 6-piece sets include 2 flute and 4 flute center cutting TiN coated HSS end mills sizes: 1/8", 3/16", 1/4", 5/16", 3/8", and 1/2" end mills. All end mills have 3/8" shank.
R8 Collets: Set of seven high-grade tool hardened steel, sizes 1/8", 3/16", 1/4", 3/8", 1/2", 5/8", 3/4".
1-2-3 Blocks: Ground and hardened on all sides to 50-60 RC, sizes 1" x 2" x 3". Parallel within 0.0002", flat within 0.0002", and square within 0.00021". Set has two matched blocks, 23 holes of which 5 are threaded 3/8"-16 NC.
Center Drills: Five sizes combined drills and countersinks made of high speed steel. Sizes 1, 2, 3, 4, and 5 with 60 degree counter sinks.
Edge and Center Finder, 3/8" Shank, Fisher
