Description

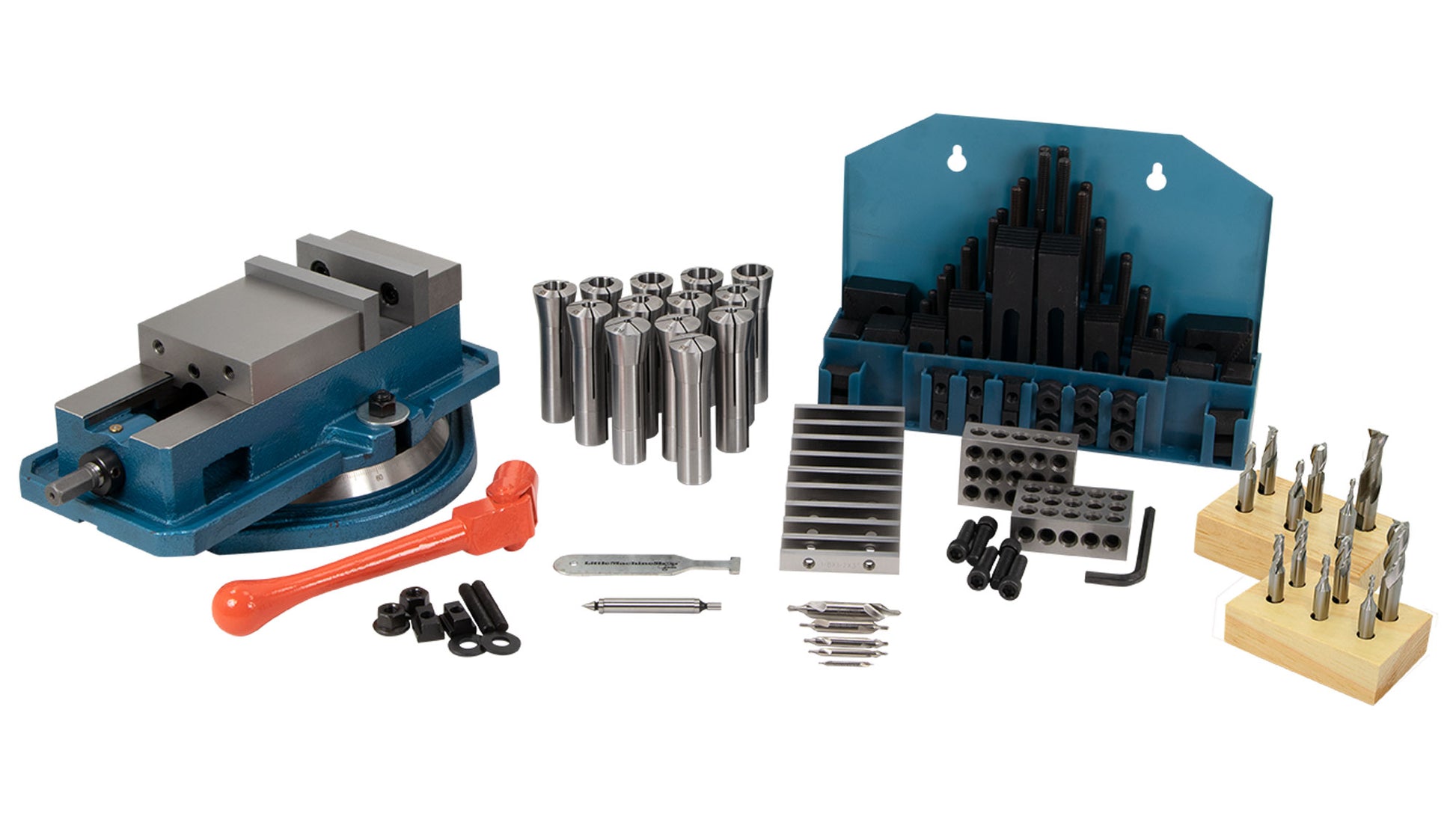

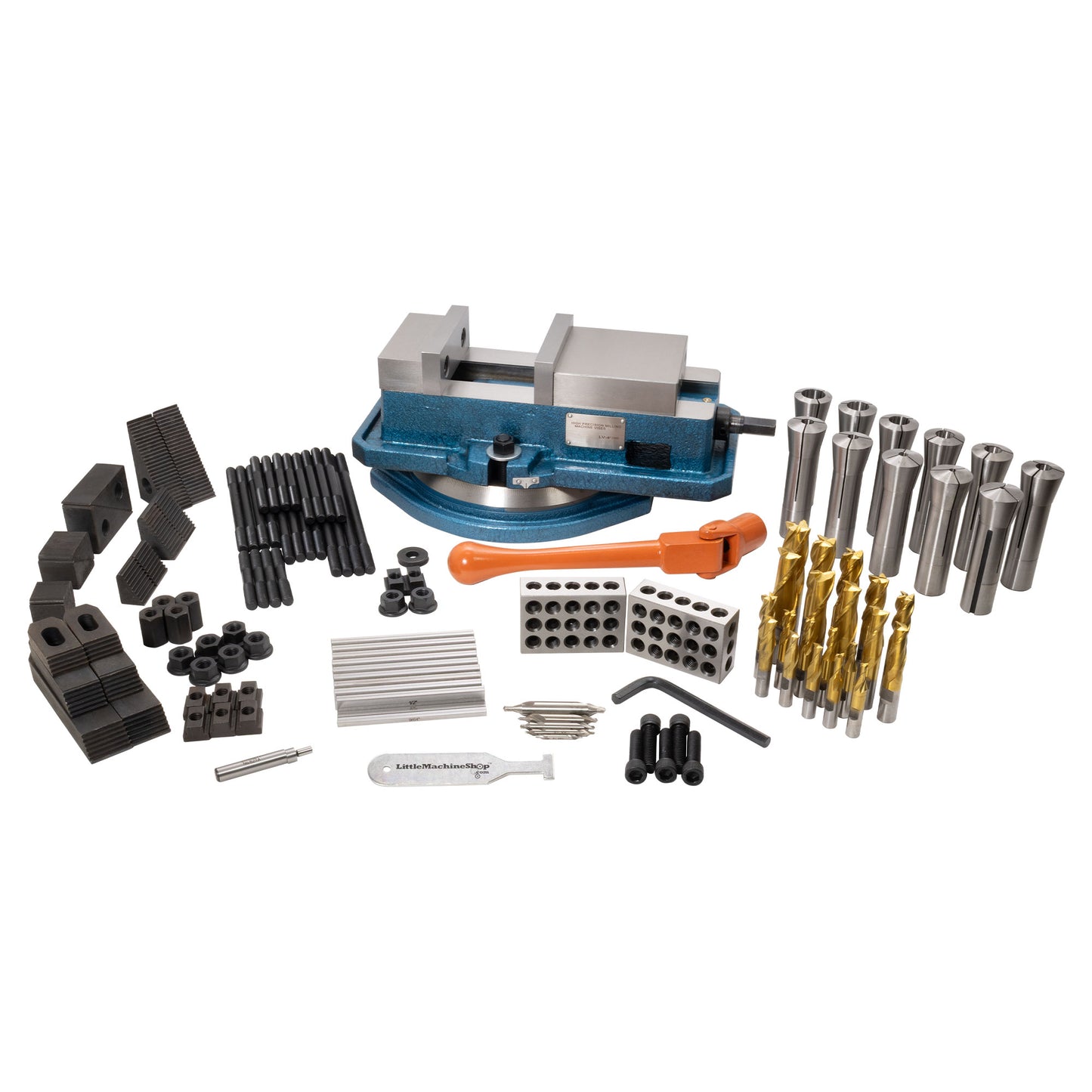

Premium tooling package with all the best products for your R8 bench mill.
58-piece clamping kit 3/8"-16, 7/16" T-Slot.
Milling Vise: 4" Kurt-style professional milling vice with detachable 360 degree swivel base and easy to read divisions. Top, gib, jaws, swivel base, bottom of vise bed and all plate mounting surfaces are ground. The angle tight positive lock style jaws are interchangeable with industry standard machine vises, are hardened and ground, and can be mounted on either end of the fixed and movable jaw supports for a wide range of clamping distances.
Overall length is 11.6" and the height is 3.1" without base, and 4.3" with base. Jaws are 3.15" wide, 0.9" deep, open 3", and are perpendicular to the ways within 0.0004" in 4". The ways are parallel to the base within 0.0003" in 4" without the swivel.
Starrett single end edge finder.
Thin Parallels: Set of ten 4" pairs, 1/8" thick. Made of high-grade alloy steel hardened to 52-58 Rc, parallel within 0.0003" on top and bottom. Parallel heights: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", and 1-5/8"
End Mills: 20-piece TiN coated HSS end mill set Includes both 2 flute and 4 flute Center cutting end mills: 3/16" to 3/4" by 16ths
R8 Collets: 11 R8 round collets sizes 1/8" to 3/4" by 16ths. Made of high-grade tool steel, hardened and ground. This set includes all the sizes required for common end mills.
1-2-3 Blocks: Premium precision 1-2-3 blocks, ground and case hardened on all sides to 55-60 Rc. Blocks are 1" x 2" x 3" parallel, flat, and square within 0.0001". Set includes two matched blocks and 5 cap screws. Blocks have 23 holes, five are threaded 3/8"-16 NC.
Center Drills: Five piece M42 8% cobalt combined drills and countersinks sizes 1, 2, 3, 4, and 5 with 60 degree countersinks.
