Lathe Chuck, 3-Jaw 5"

Lathe Chuck, 3-Jaw 5"
  • 3-Jaw Lathe Chuck
  • 5" (125 mm) diameter
  • Includes chuck key, inside and outside jaws
  • Plain back mounting
  • High quality steel, hardened and ground
Part Number: 2337
Weight: 11.0 lb

Price: $123.95

This product is currently backordered.

Estimated availability:
13-Nov-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.



PayPal Credit
5 inch, 3-Jaw self-centering lathe chuck.

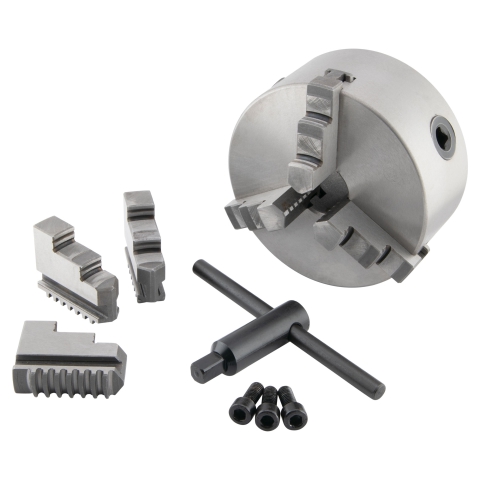

Includes chuck key, inside and outside jaws, and mounting bolts.

The chuck can hold work up to 110 mm (4.33") in diameter.

The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

Chris Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications
Rated Capacity, Inside Jaws 0.10" - 1.57" (2.5 mm - 40.0 mm)
Rated Capacity, Jamming Range 1.50" - 4.92" (38.0 mm - 125.0 mm)
Rated Capacity, Outside Jaws 1.50" - 4.33" (38.0 mm - 110.0 mm)
Practical Maximum Capacity, Inside Jaws 2.00" (50.8 mm)
Practical Maximum Capacity, Outside Jaws 4.00" (101.6 mm)
Runout (Max) ≤ 0.003" (0.08 mm)
Diameter, Overall 4.92" (125.0 mm)
Registration Recess Diameter 3.74" (95.0 mm)
Registration Recess Depth 0.14" (3.5 mm)
Bolt Circle Diameter 4.25" (108.0 mm)
Center Hole Diameter 1.18" (30.0 mm)
Height 2.28" (58.0 mm)
Jaw Height Above Face 1.10" (28.0 mm)
Height with Jaws 3.39" (86.0 mm)
Number and Size of Bolts 3 M8
Chuck Key 0.374" (9.50 mm)
Max RPM 4900 RPM
Chuck Designation K11-125
