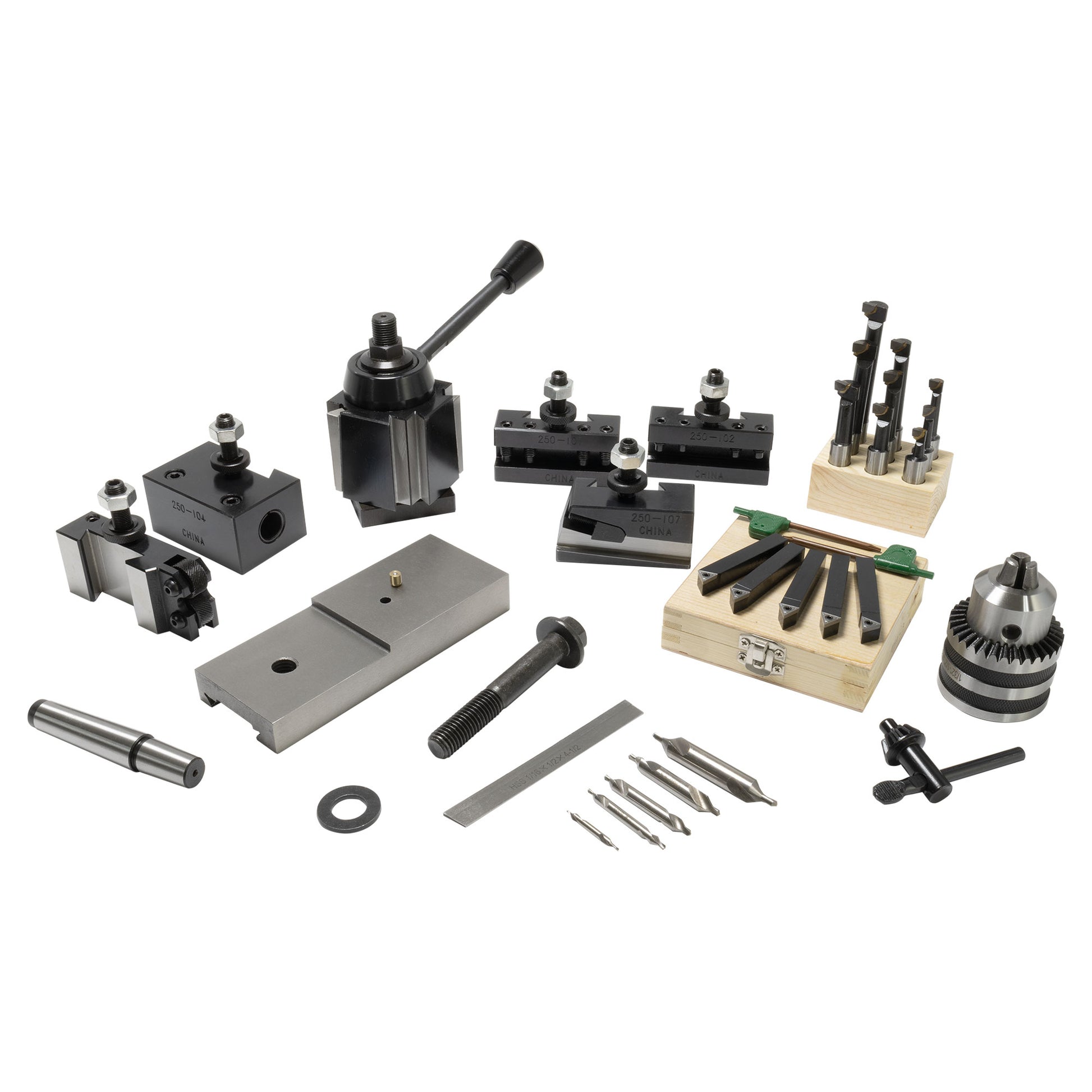

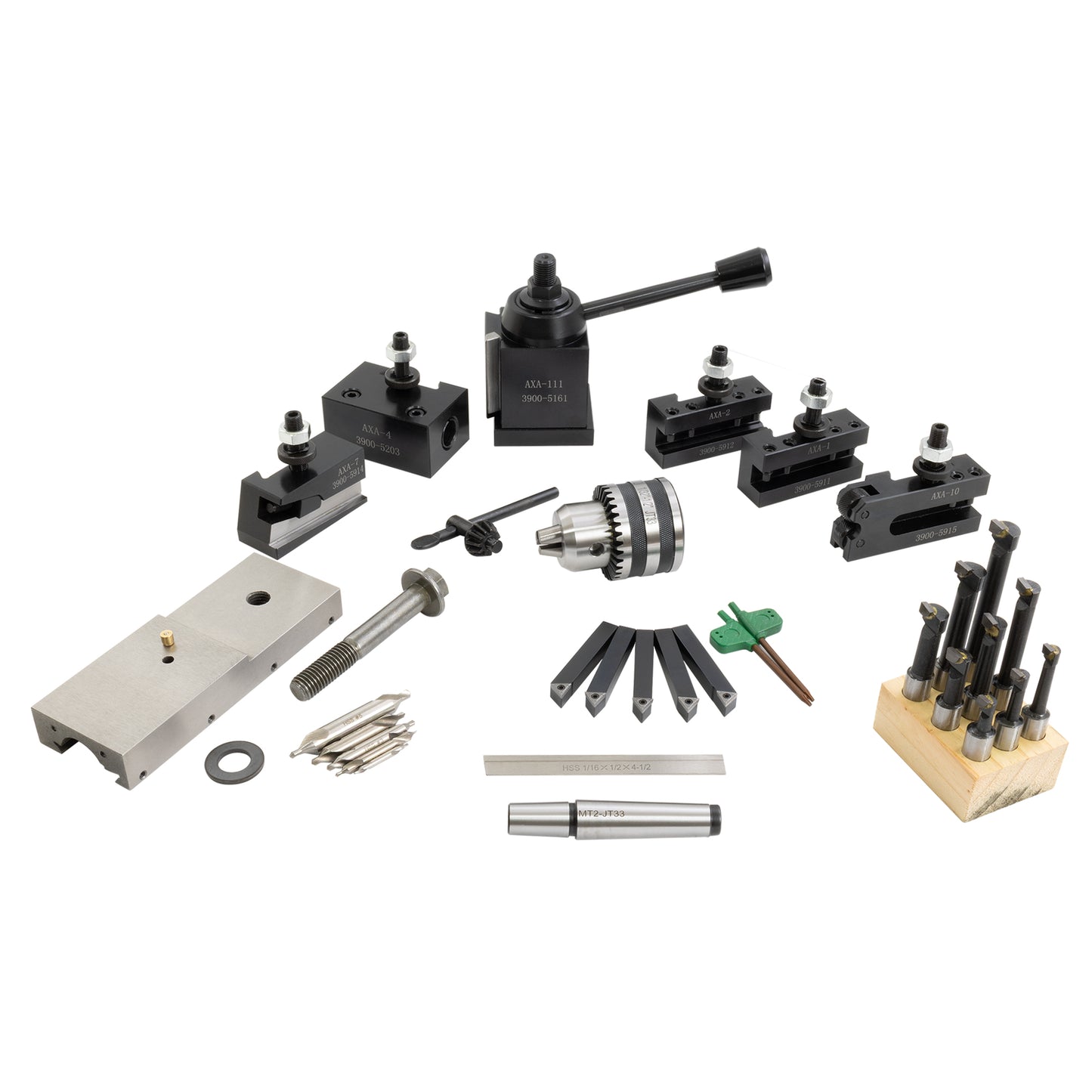

Bench Lathe Tooling Package, Basics + AXA QCTP (9x20 HiTorque)

DESIGNED SPECIFICALLY TO UPGRADE HITORQUE BENCH LATHES (7600) WITH A 9" SWING TO AN AXA TOOLPOST. Current SC50 compound rest top must be swapped with the 6573 top that is included with this kit in order to mount the AXA post

This package contains all the tooling you need to be productive with your lathe on the first day you own it. It works with the LittleMachineShop.com HiTorque 9x20 bench lathes as well as other SC50 lathes.

Includes an AXA (Series 100) quick change tool post set (QCTP). This set includes the tool post and the following tool holders:
2 - #1 Turning and Facing
1 - #2 Boring, Turning and Facing
1 - #4 Heavy Duty Boring will hold both 5/8 and 3/4 boring bars
1 - #7 Universal Parting Blade (for 1/2-inch cut-off blade - horizontal)

The quick-change tool post is made from hardened steel. No tools are required to change tools. Additional tool holders are available.

The turning tool holders accept tools up to 1/2" shank. The turning and boring tool holder accepts boring bars with up to 1/2" round shanks. The cut-off tool holder holds 1/2" tall parting blades.

The 1/2" capacity drill chuck is mounted on a standard 2 Morse taper shank. The rated capacity of the drill chuck is 1 mm (0.039") to 13 mm (0.512").

This set of indexable turning tools includes 5 indexable tools (AR, AL, BR, BL, E), inserts, a wrench, and extra screws. It comes in a wooden case. The carbide inserts are TCMT-21.51.

• Style AR right hand tool
• Style BR right hand tool with a 15° lead angle
• Style E Neutral threading tool with 60° included angle
• Style BL left hand tool with a 15° lead angle
• Style AL left hand tool


The carbide tipped 9-piece boring bar set includes three different length boring bars each for minimum bores of 5/16", 3/8", and 7/16". The bore depth ranges from 3/4" to 2-1/4". The heat treated, alloy steel shanks are held to 0.000 to -0.0005" from the nominal diameter.

The P1 parting blade is 5/64" x 1/2" x 4-1/2" and made from M2 HSS. These T-shape parting blades provide great side clearance.

This package includes 5 different sizes of combined drills and countersinks, commonly called center drills. The center drill set is high speed steel and includes sizes 1, 2, 3, 4, and 4. These are 60-degree center drills. These are the sizes that are most used by bench top machinists.
