Quick Change Tool Post Set, AXA

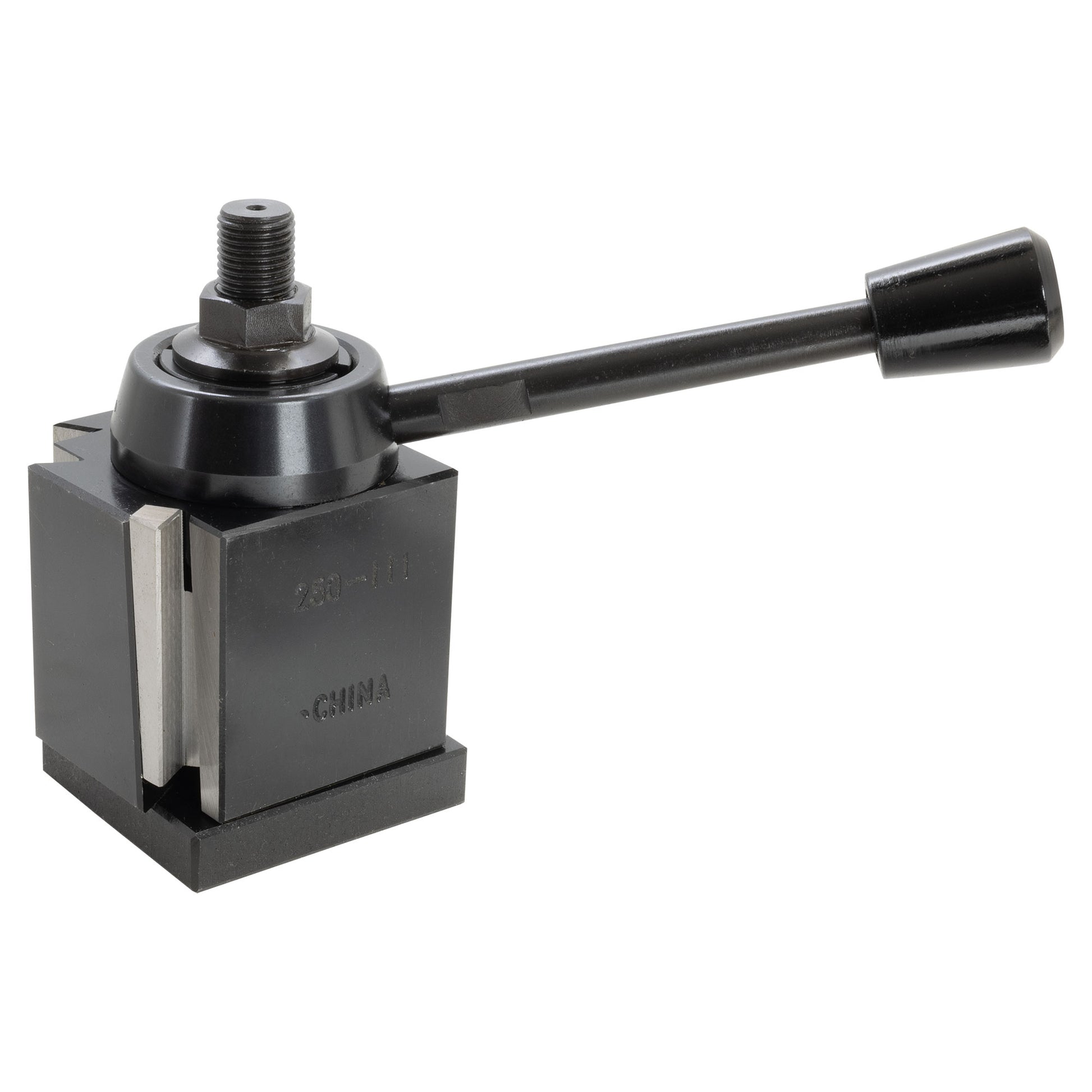

AXA, or series 100, wedge type quick change tool post set is designed for lathes with up to 12" swing.

All working parts are hardened and ground. This lathe tool post set is completely sealed for maintenance-free operation.

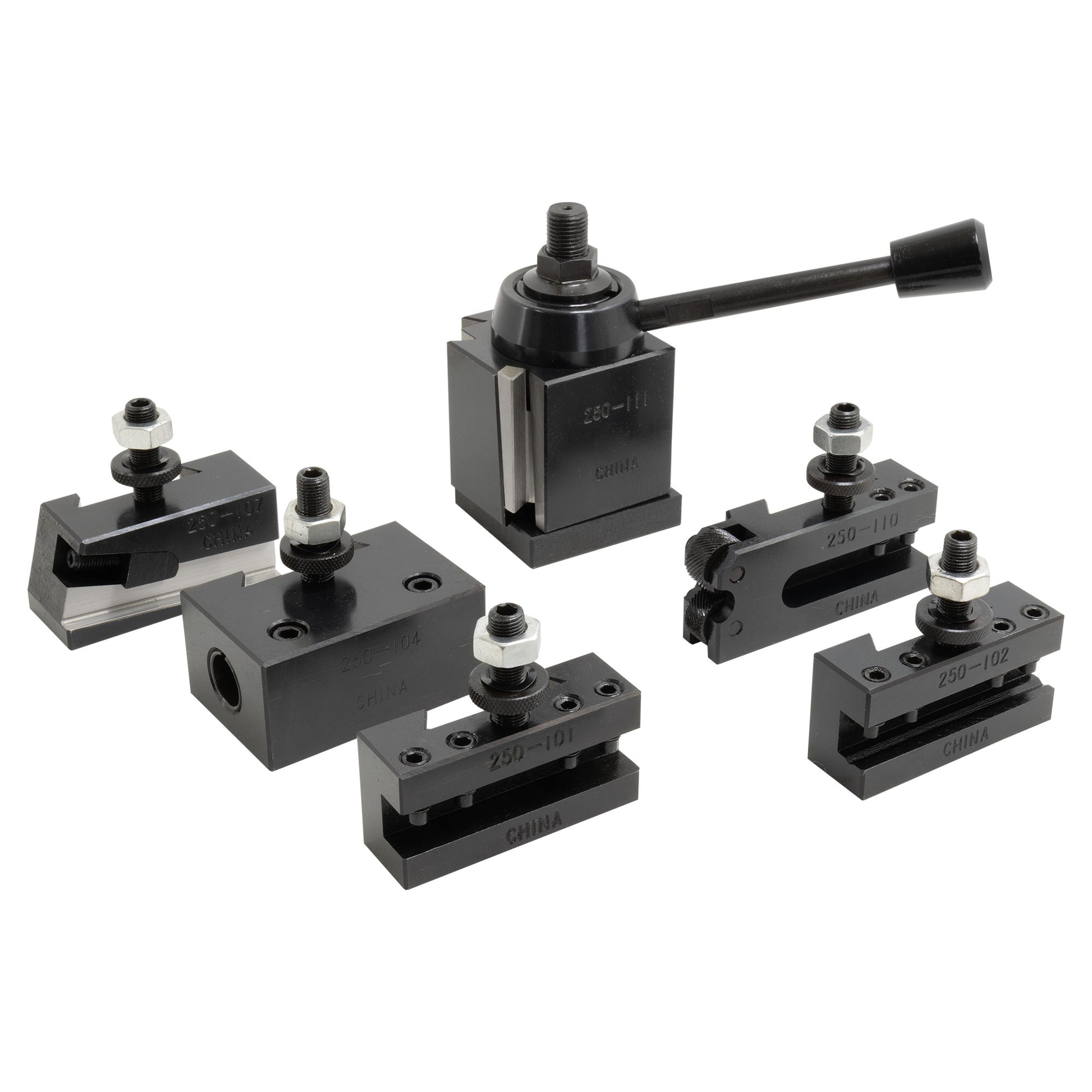

This lathe tool post set includes the tool post and the following tool holders:

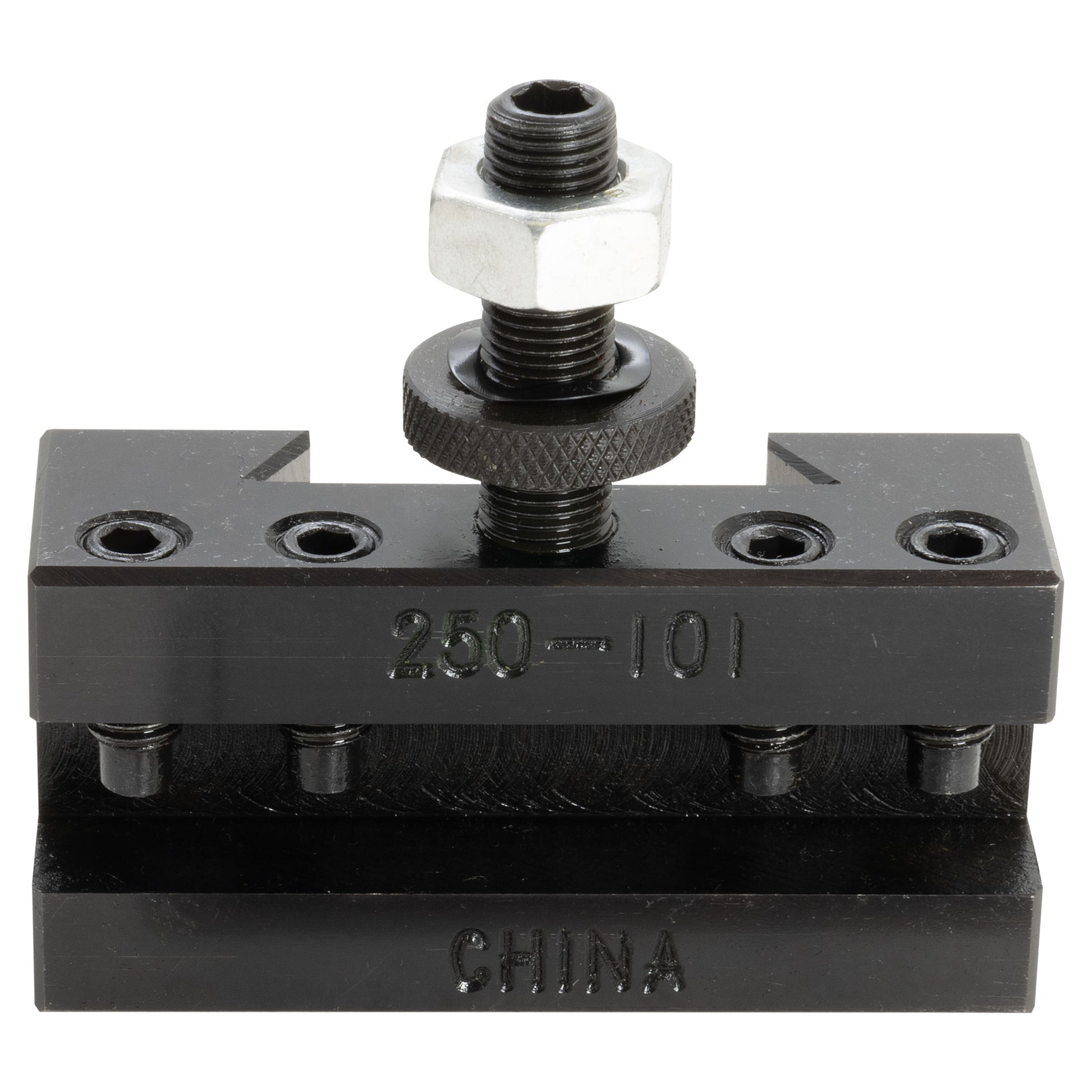

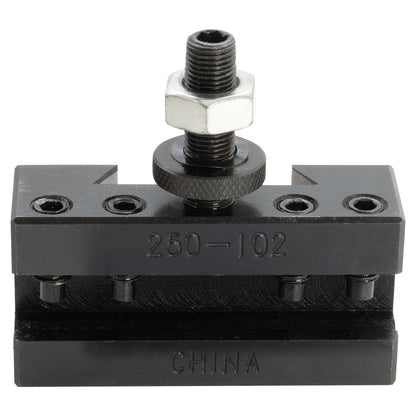

No. 1 - Turning & Facing Tool Holder

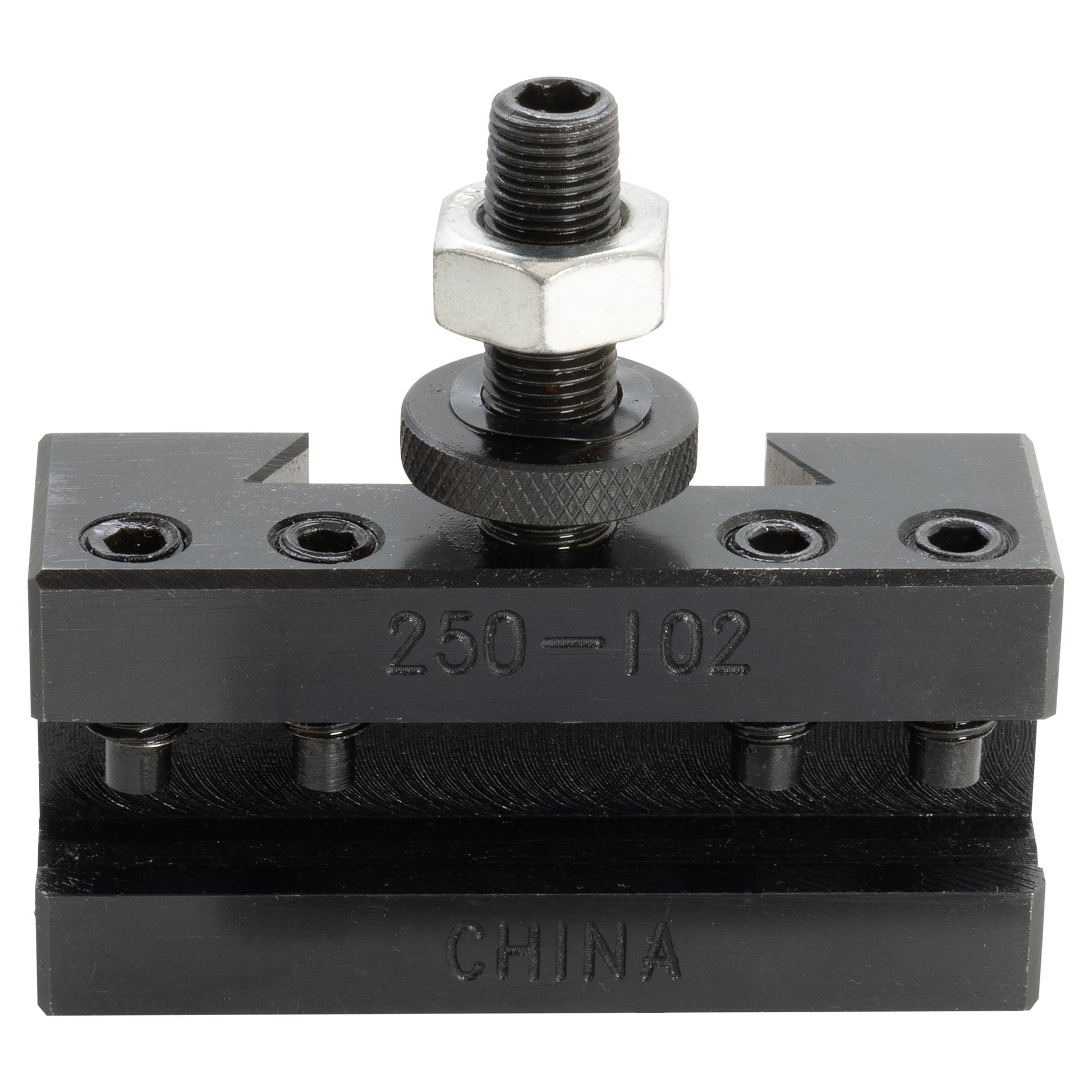

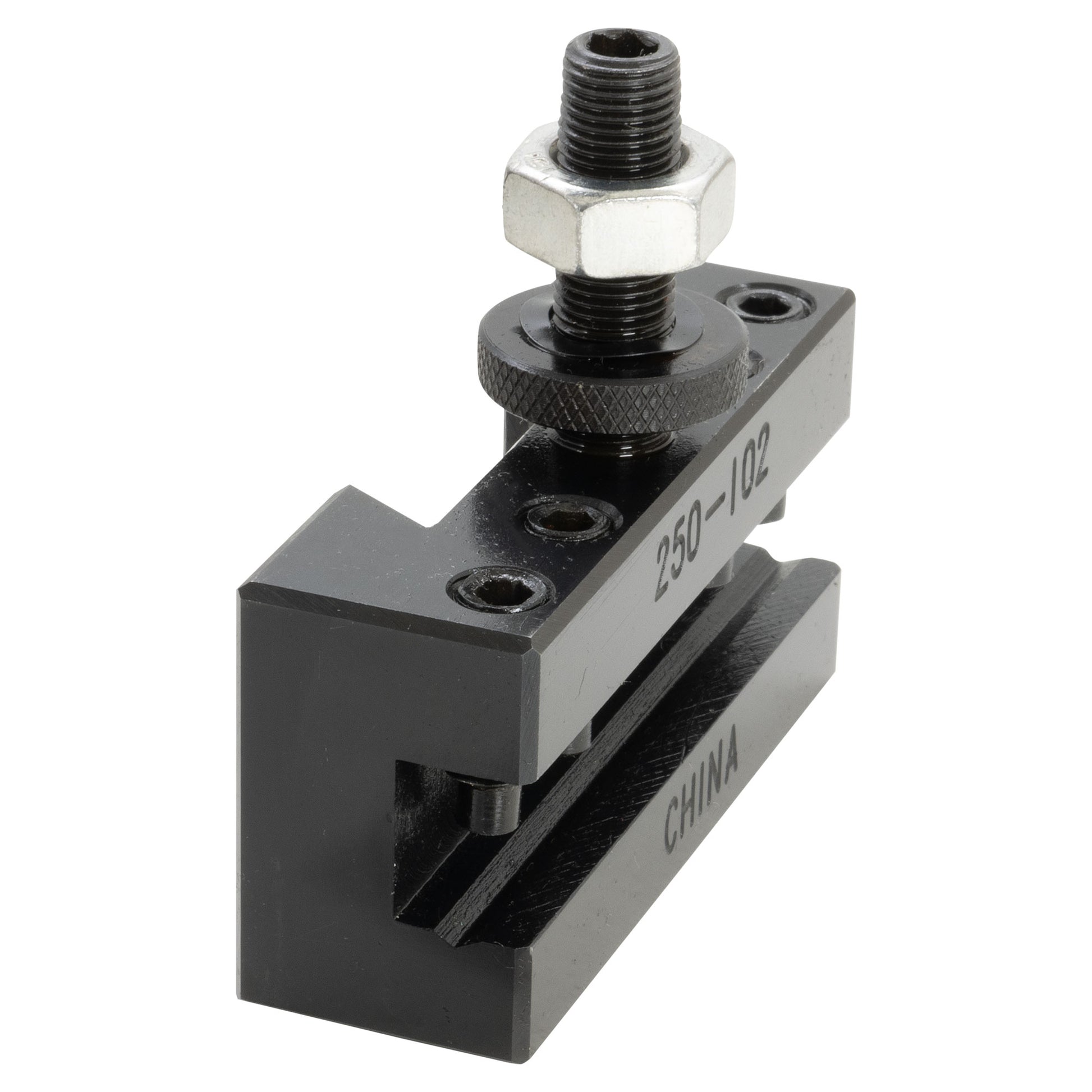

No. 2 - Boring, Turning & Facing Tool Holder

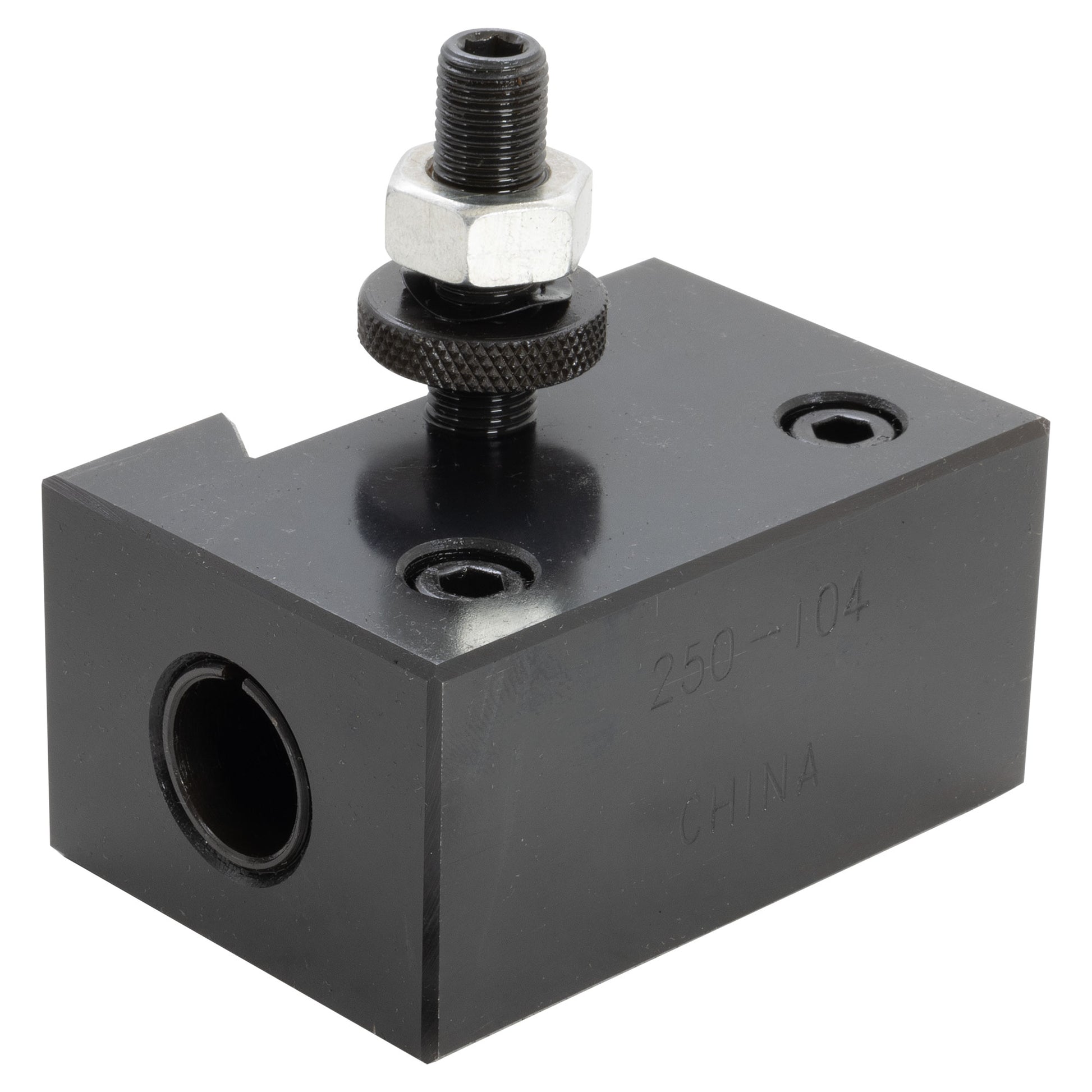

No. 4 - Heavy Duty Boring Tool Holder, will hold 5/8" or 3/4" round shanks.

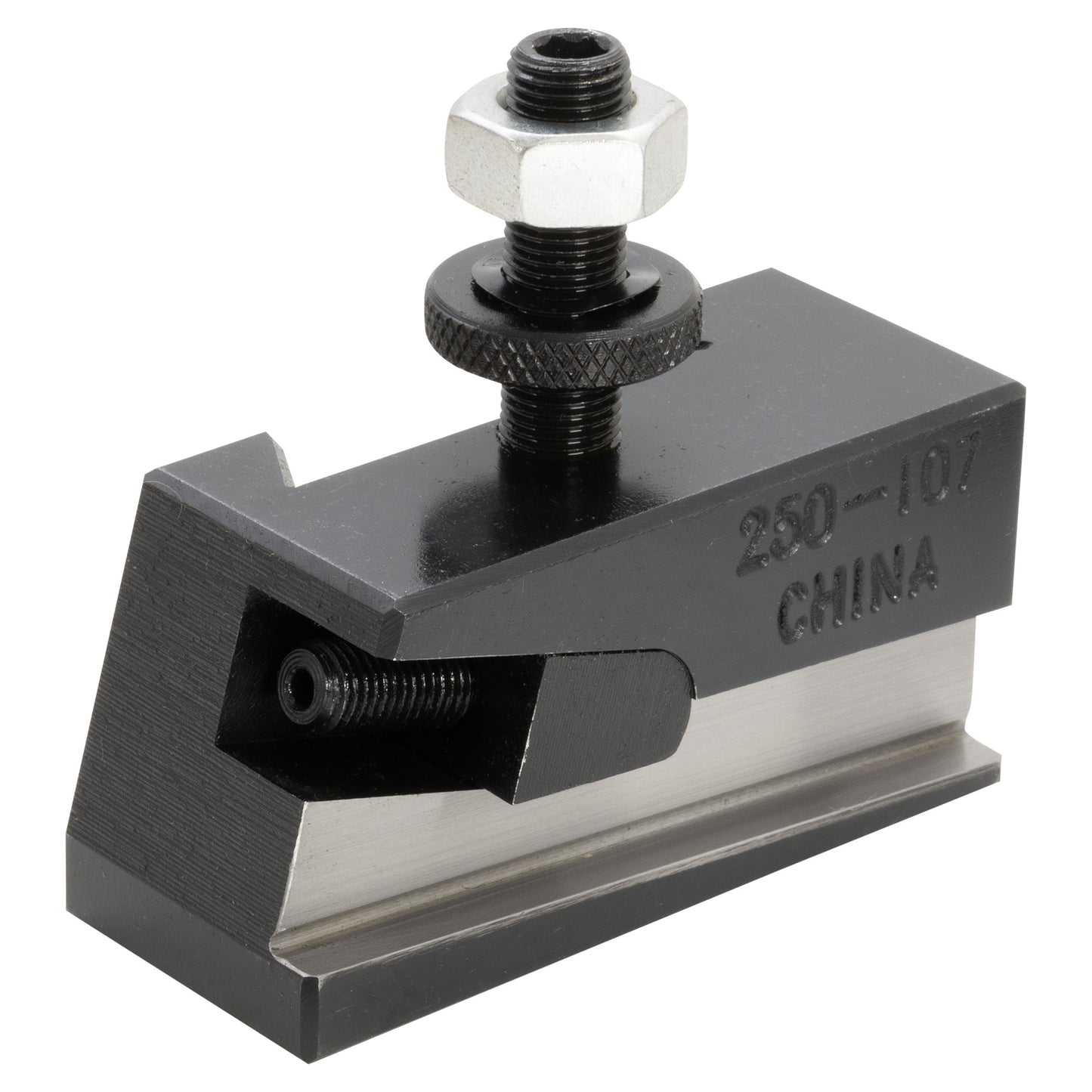

No. 7 - Universal Parting Blade Holder

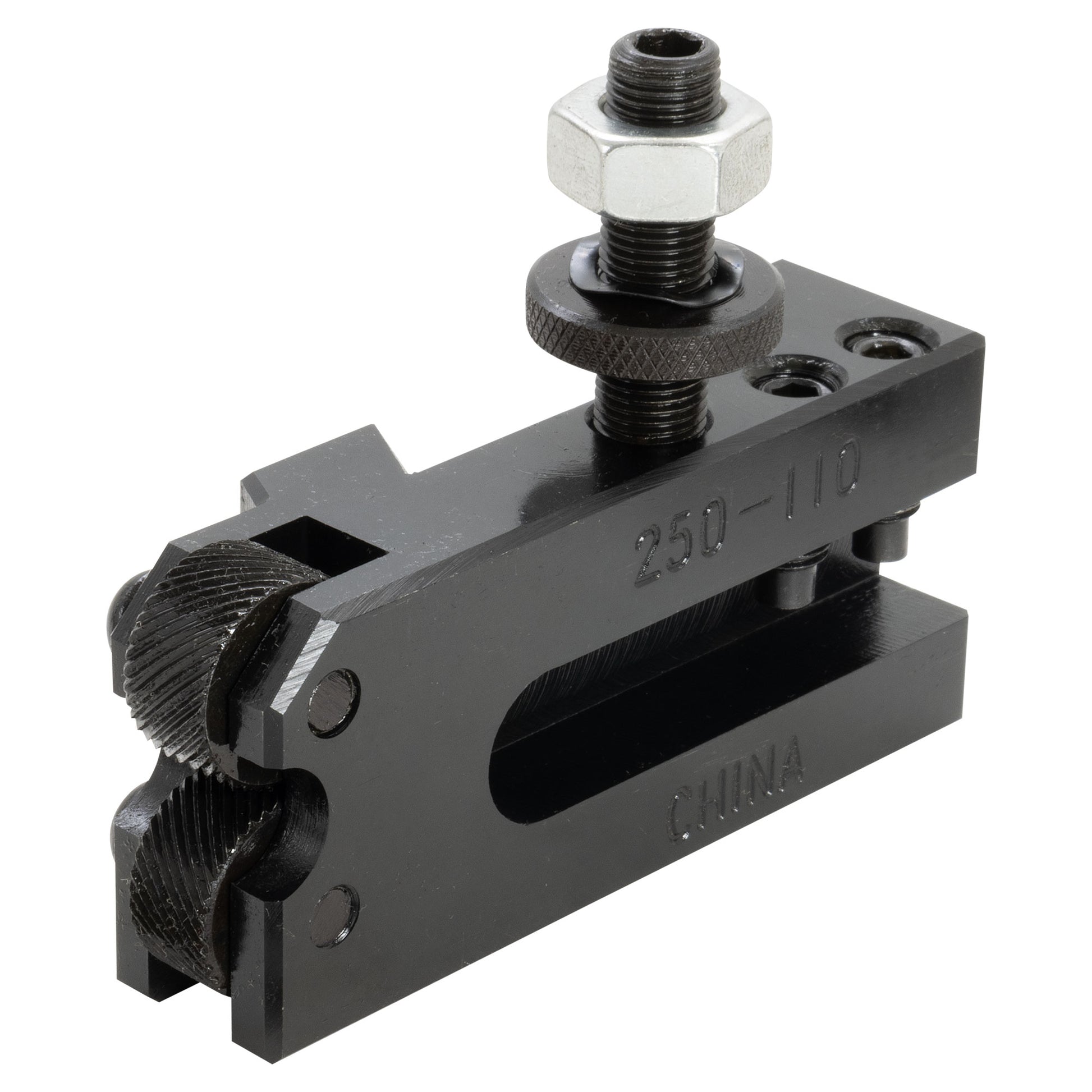

No.10 - Knurling, Facing & Turning.

This set includes a 9/16"-18 threaded stud and a piece of steel from which you can make a T-slot nut to fit your lathe. The tool holders interchange with Aloris, Dorian, and Phase II.

TO ENSURE POPER FIT:
- If adding to a HiTorque machine from LMS you may need a modified compound if your machine originally came with a traditional turret post. (see Chris's tips).
- It is a good fit on 9x20 lathes but requires some modification or our mounting sleeve (see Chris's tips).
- Many people feel that these tool posts are too large for mini lathes, but others like the mass and rigidity they provide. Some modification may be required to install correctly (see Chris's tips).

This QCTP is not always a bolt-on accessory for every lathe.

For an 8"- 8 1/2" swing HiTorque bench lathe from LMS (SIEG SC4) with installed turret post, add a Compound Rest Top, 8.5x20 Bench Lathe for AXA QCTP (4914)

For 9" swing HiTorque bench lathe from LMS (SIEG SC50) it is a bolt-on accessory with the addition of our Quick-Change Tool Post Conversion Kit, AXA for 9x20 Bench Lathe (6728)

For other 9" swing bench lathes it is a bolt-on accessory with the addition of our Stud, AXA QCTP, for Grizzly/JET/Harbor Freight 9x20 Lathes (3712)

For a mini-Lathe (7"X) you can use one of our modified compound rest bottoms (1777 OR 1881) that has been milled down 1/4" to use this QCTP on a min lathe.

See the comparison chart of the quick-change tool post sets we carry.
