Description

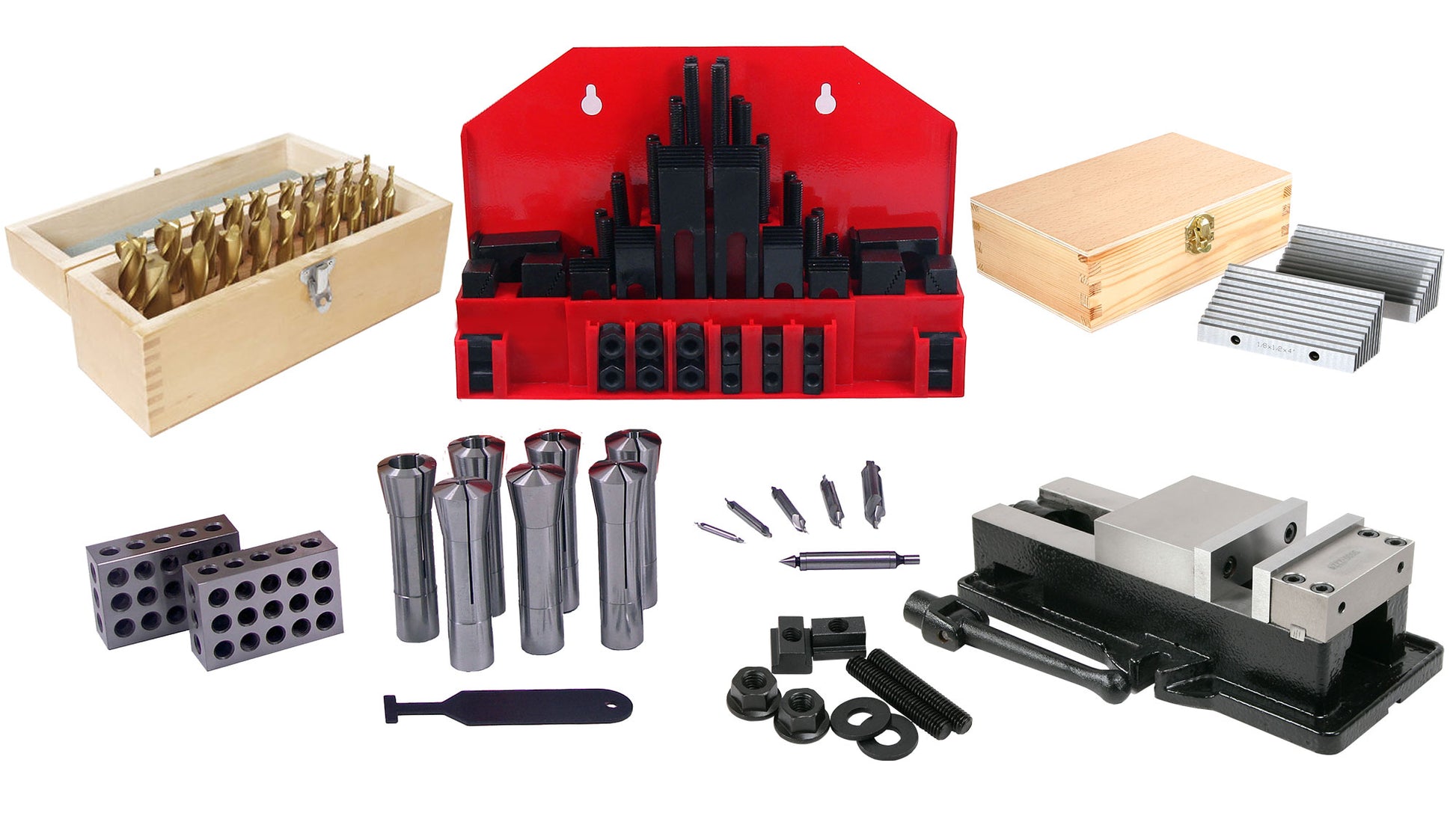

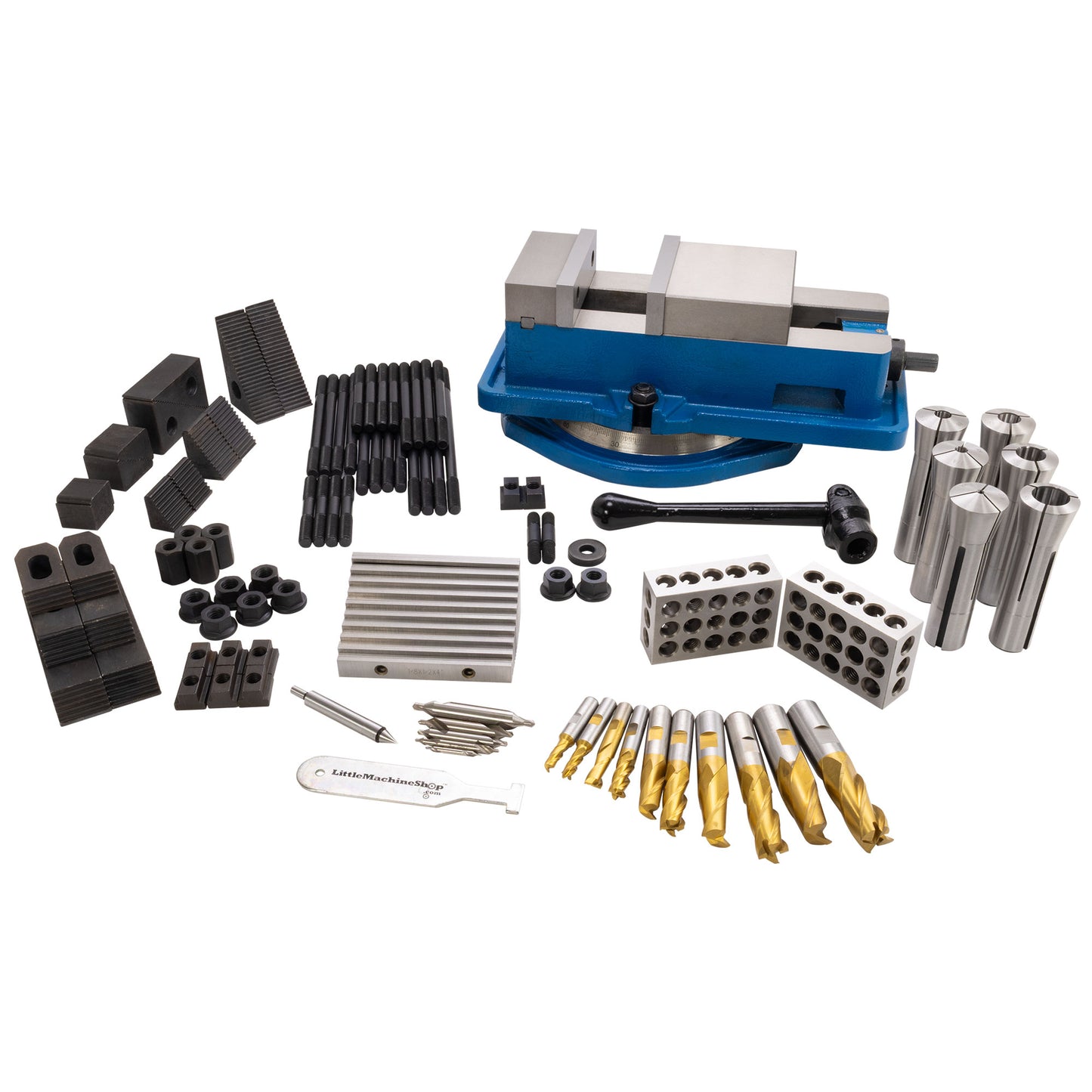

Tooling package with all the essentials for an R8 bench mill.
58-piece clamping kit 3/8"-16, 7/16" T-Slot.
Milling Vise: Precision 4" Kurt-style milling vice. Top, gib, jaws, bottom of vise bed and all plate mounting surfaces are ground. The angle tight positive lock style jaws are interchangeable with industry standard machine vises, are hardened and ground, and can be mounted on either end of the fixed and movable jaw supports for a wide range of clamping distances.
Overall length is 13.4" and the height is 3.46". Jaws are 4" wide, 1.27" deep, open 4", and are perpendicular to the ways within 0.002" in 4". The ways are parallel to the base within 0.0006" in 4" without the swivel.
Thin Parallels: Set of ten pairs, 1/8" thick x 4" long, in fitted case. Made of high-grade alloy steel hardened to 52-58 RC, parallel within 0.0002" on top and bottom. Parallel heights: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", and 1-5/8" (pairs matched within 0.0004").
End Mills: This 10 piece TiN coated HSS end mill set includes both 2 flute and 4 flute end mills. Includes 1/4", 3/8", 1/2" , 5/8", and 3/4" end mills
R8 Collets: Set of 7 high-grade tool hardened steel, sizes 1/8, 1/4, 3/16", 3/8", 1/2", 5/8", 3/4".
1-2-3 Blocks: Ground and hardened on all sides to 50-60 RC, sizes 1" x 2" x 3". Parallel within 0.0002", flat within 0.0002", and square within 0.00021". Set has two matched blocks, 23 holes of which 5 are threaded 3/8"-16 NC.
Center Drills: Four sizes combined drills and countersinks made of high-speed steel. Sizes 1, 2, 3, 4, with 60-degree counter sinks.
