Description

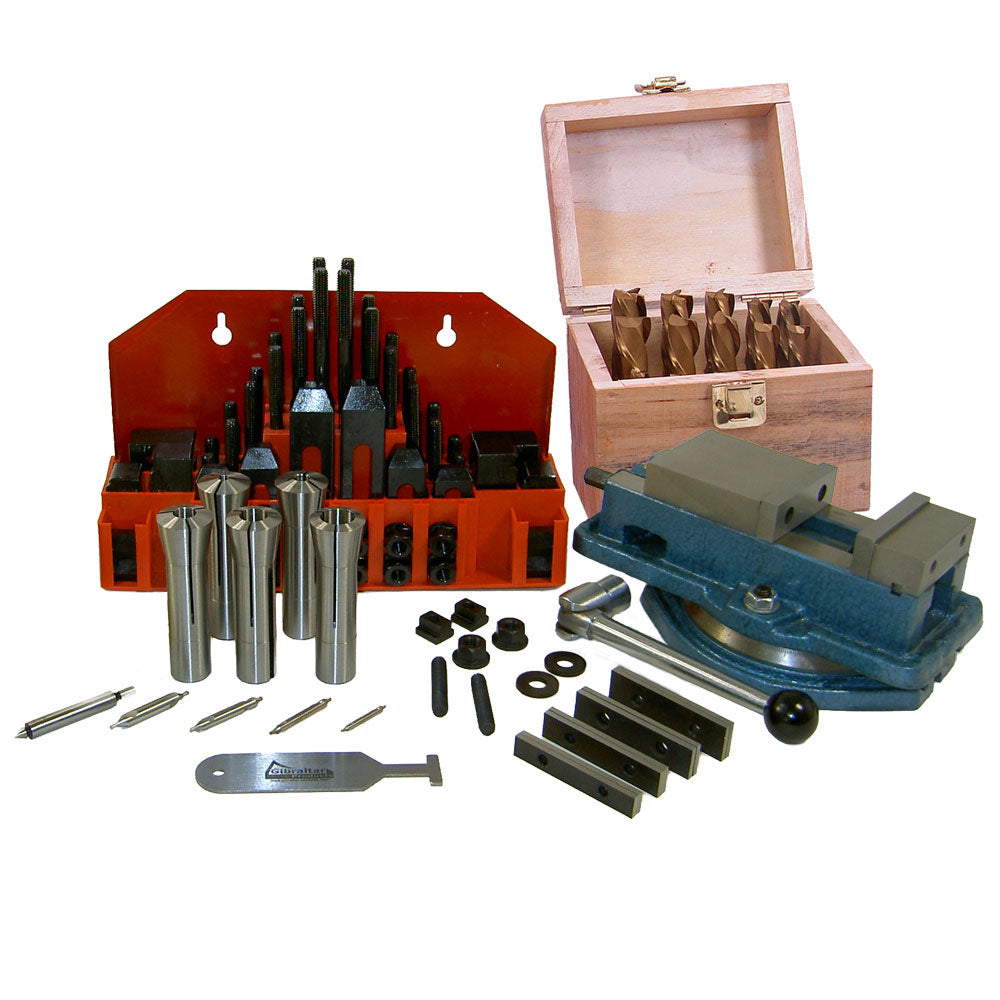

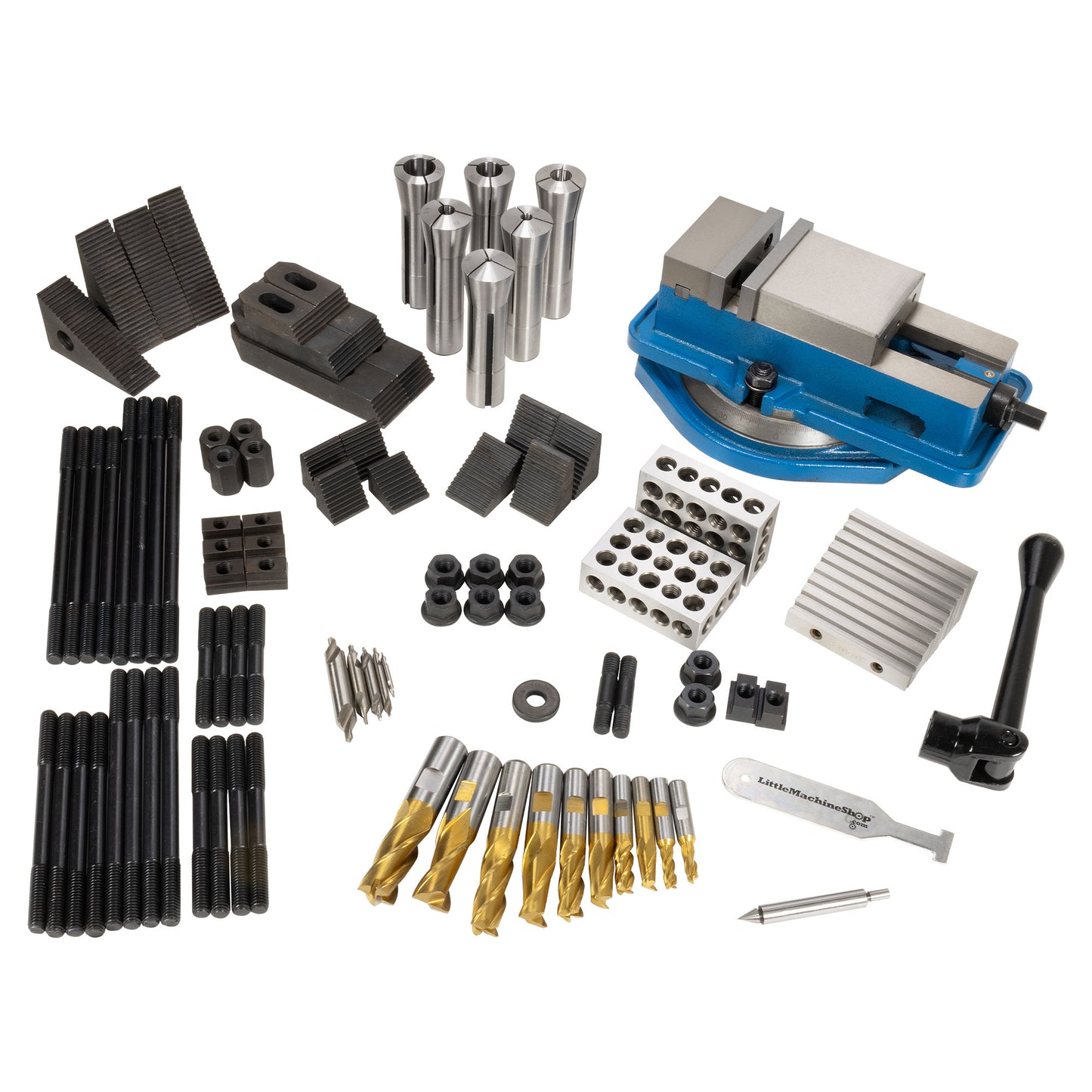

Tooling package with the basic tooling for an R8 mini mill.
58-piece clamping kit 3/8"-16, 7/16" T-Slot.
Milling Vise: The precision 3" Kurt-style milling machine vise has a detachable swivel base that features easy to read divisions.
The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground. The hardened and ground replaceable jaws on this vise are 3.15" wide, 0.93" deep, and open 2.83". The vise is 10.24" long. Without the base, the vise is 2.91" high. With the base, the vise is 3.94" high. The replaceable jaws can be mounted on either end of the fixed and movable jaw supports providing a wide range of clamping distances.
Thin Parallels: Set of ten pairs, 1/8" thick x 3" long, in fitted case. Made of high-grade alloy steel hardened to 52-58 Rc, parallel within 0.0002" on top and bottom. Parallel heights: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", and 1-5/8" (pairs matched within 0.0004").
End Mills: This 10 piece TiN coated HSS end mill set includes both 2 flute and 4 flute end mills.
R8 Collets: Set of five R8 round collets includes the sizes 3/16", 3/8", 1/2", 5/8", 3/4". They are made of high grade tool steel, hardened and ground to close tolerance.
Center Drills: Four sizes combined drills and countersinks made of high speed steel. Sizes 1, 2, 3, and 4 with 60 degree counter sinks.
