Collection: LittleMachineShop.com 1012

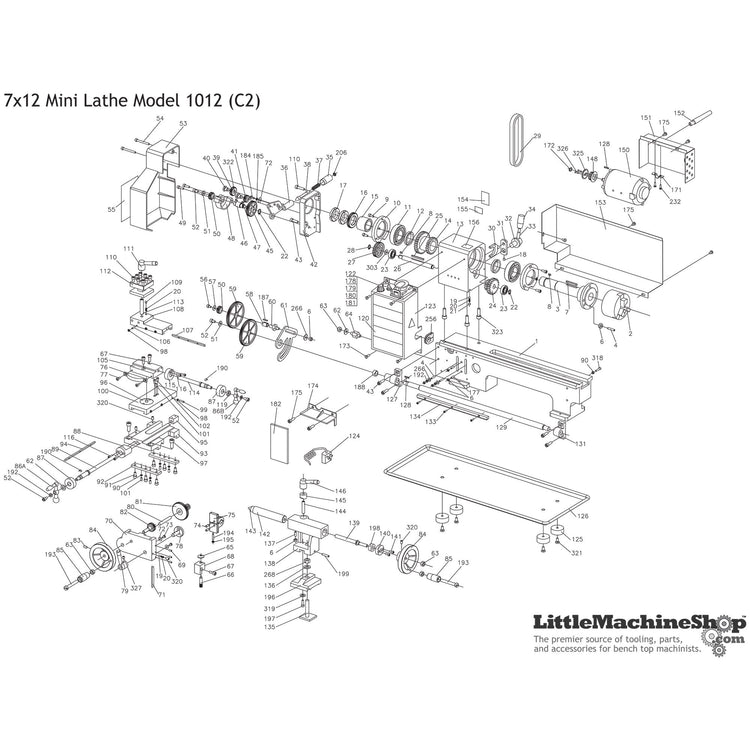

Download Diagram
Jump to item:
-
Product Sku1542
Cap Screw, M6x25, Socket Head
Regular price $0.55Regular priceUnit price / perItem: 110
-
Product Sku1105
Belt, Timing 7x12 7x14 Mini Lathes, 70 Teeth
Regular price $14.95Regular priceUnit price / perItem: 29
-
Product Sku1106
Gear, 80 Teeth, Mini Lathe
Regular price $8.95Regular priceUnit price / perItem: 59
-
Product Sku1207
Gear, 2-Speed Intermediate Shaft
Regular price $9.95Regular priceUnit price / perItem: 24
-
Product Sku1541
Cap Screw, M6x20, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 43
-
Product Sku1205
Pulley, Timing, Motor, 7x12 Mini Lathe
Regular price $5.95Regular priceUnit price / perItem: 148
-
Product Sku1282
Potentiometer, FC Controllers
Regular price $14.95Regular priceUnit price / perItem: 180
-
Product Sku1202
Pulley, Timing, Intermediate, Mini Lathe
Regular price $4.95Regular priceUnit price / perItem: 27
-
Product Sku1773
Spring, Adjustable Dial, Mini and Bench Lathes
Regular price $0.95Regular priceUnit price / perItem: 190
-
Product Sku1586
Washer, M8 Flat
Regular price $0.15Regular priceUnit price / perItem: 191
-
Product Sku1565
Screw, M8x55 Fillister Head Slotted Machine
Regular price $0.99Regular priceUnit price / perItem: 193
-
Product Sku1362
Bushing and Key, Mini Lathe
Regular price $4.79Regular priceUnit price / perItem: 187
-
Product Sku1210
Gear, 2-Speed Spindle
Regular price $11.95Regular priceUnit price / perItem: 14
-
Product Sku1686
Motor Brushes
Regular price $9.95Regular priceUnit price / perItem: 0
-
Product Sku1363
Shaft, B & C Gears
Regular price $7.49Regular priceUnit price / perItem: 60
-
Sold outProduct SkuDead Center, 2MT Short
Regular price $7.95Regular priceUnit price / perItem: 143
Sold out -
Product Sku1182
Retaining Ring, M12 External
Regular price $0.29Regular priceUnit price / perItem: 22
-
Product Sku3042
Control Box Assembly, Mini Lathe
Regular price $239.95Regular priceUnit price / perItem: 182
-
Sold outProduct SkuFuse Holder
Regular price $2.95Regular priceUnit price / perItem: 179
Sold out -
Product Sku1376
Key, 4x8 mm
Regular price $0.95Regular priceUnit price / perItem: 8
-
Product Sku1346
Knob, 8 mm
Regular price $2.95Regular priceUnit price / perItem: 34
-
Product Sku1526
Threading Dial Assembly (Inch)
Regular price $22.49Regular priceUnit price / perItem: 68
-
Product Sku1351
Pinion, 25 Teeth
Regular price $9.95Regular priceUnit price / perItem: 39
-
Sold outProduct SkuGear, 65 Teeth, Mini Lathe
Regular price $9.75Regular priceUnit price / perItem: 165
Sold out -
Product Sku1380
Handwheel, Mini Lathe
Regular price $19.95Regular priceUnit price / perItem: 84
-
Product Sku1373
Half Nuts, Mini Lathe, Inch
Regular price $24.95Regular priceUnit price / perItem: 75
-
Product Sku1353
Pinion, 20 Teeth
Regular price $9.95Regular priceUnit price / perItem: 41
-
Product Sku1185
Retaining Ring, M10 External
Regular price $0.35Regular priceUnit price / perItem: 28
-
Product Sku2562
Lead Screw Chip Guard
Regular price $2.89Regular priceUnit price / perItem: 256
-
Product Sku1357
Key, 3x8 mm
Regular price $0.95Regular priceUnit price / perItem: 47
-
Product Sku1385
Graduated Dial, 40 Divisions, Mini Lathe
Regular price $13.95Regular priceUnit price / perItem: 87
-
Product Sku1288
Handle, Tool Post, Mini Lathe
Regular price $5.49Regular priceUnit price / perItem: 111
-
Product Sku1285
Cover, Spindle Bearing, Mini Lathe and Mini Mill
Regular price $2.95Regular priceUnit price / perItem: 10
-
Product Sku1226
Nut, M6 Hardened
Regular price $0.25Regular priceUnit price / perItem: 6
-
Product Sku1543
Cap Screw, M6x8, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 52
-
Product Sku1388
Retainer, Saddle, Mini Lathe
Regular price $11.49Regular priceUnit price / perItem: 92
-
Product Sku1187
Lathe Chuck - 3", 3-Jaw
Regular price $99.95Regular priceUnit price / perItem: 2
-
Product Sku1587
Spacer, Dial
Regular price $0.95Regular priceUnit price / perItem: 119
-
Product Sku1345
Lever, High-Low Shifter 8 mm
Regular price $3.95Regular priceUnit price / perItem: 33
-
Product Sku1338
Spring, 5 mm x 10 mm
Regular price $0.95Regular priceUnit price / perItem: 20
-
Product Sku1297
Key, 3x16 mm
Regular price $0.95Regular priceUnit price / perItem: 128
-
Product Sku1203
Nut, Cross Slide Feed
Regular price $15.95Regular priceUnit price / perItem: 95
-
Product Sku1383
Crank Handle, Compound Rest
Regular price $13.35Regular priceUnit price / perItem: 86B
-
Product Sku1321
Gear, 45 Teeth, Mini Lathe
Regular price $4.95Regular priceUnit price / perItem: 160
-
Product Sku1568
Set Screw, M4x16, Socket Dog Point
Regular price $0.45Regular priceUnit price / perItem: 99
-
Product Sku1360
Cover, Change Gears, Mini Lathe
Regular price $15.95Regular priceUnit price / perItem: 53
-
Product Sku1334
Knob, Speed Control, Mini Lathes and Mills
Regular price $3.95Regular priceUnit price / perItem: 180
-
Product Sku1332
Emergency Stop Switch, Mini Mills and Lathes
Regular price $15.95Regular priceUnit price / perItem: 178
-
Product Sku1323
Gear, 55 Teeth, Mini Lathe
Regular price $5.95Regular priceUnit price / perItem: 162
-
Product Sku1322
Gear, 50 Teeth, Mini Lathe
Regular price $4.95Regular priceUnit price / perItem: 161
-
Product Sku1319
Gear, 40 Teeth, Mini Lathe
Regular price $4.95Regular priceUnit price / perItem: 159
-
Product Sku2957
Lead Screw Support
Regular price $5.95Regular priceUnit price / perItem: 270
-
Sold outProduct SkuCrank Handle, Cross Slide
Regular price $16.69Regular priceUnit price / perItem: 86A
Sold out -
Product Sku1359
Gear, 20 Teeth, Mini Lathe
Regular price $14.95Regular priceUnit price / perItem: 50
-
Product Sku1318
Gear, 35 Teeth, Mini Lathe
Regular price $3.95Regular priceUnit price / perItem: 158
-
Product Sku2176
Washer, M6 Lock
Regular price $0.95Regular priceUnit price / perItem: 192
-
Product Sku1329
Nut, Spindle M27x1.5
Regular price $3.79Regular priceUnit price / perItem: 17
-
Product Sku1110
Gib, Mini Lathe Compound Rest, 120 mm
Regular price $6.95Regular priceUnit price / perItem: 107
-
Product Sku1361
Label, Thread Cutting Table (Inch)
Regular price $1.95Regular priceUnit price / perItem: 55
-
Product Sku1324
Gear, 57 Teeth, Mini Lathe
Regular price $8.09Regular priceUnit price / perItem: 163
-
Product Sku1311
Motor, 250 Watt, Mini Lathe
Regular price $169.95Regular priceUnit price / perItem: 150
-
Product Sku
Feed Screw, Compound Rest, Mini Lathe
Regular price $19.95Regular priceUnit price / perItem: 114
Sold out -
Product Sku1677
Compound Rest Bottom, Mini Lathe, Drilled
Regular price $36.95Regular priceUnit price / perItem: 105
-
Product Sku1387
Feed Screw, Cross Slide, C2/C3 Mini Lathe
Regular price $19.95Regular priceUnit price / perItem: 89
-
Product Sku1325
Gear, 60 Teeth, Mini Lathe
Regular price $7.95Regular priceUnit price / perItem: 164
-
Product Sku1310
Spacer, Spindle Mini Lathe, 32 mm
Regular price $5.95Regular priceUnit price / perItem: 15
-
Product Sku1317
Gear, 30 Teeth, Mini Lathe
Regular price $3.95Regular priceUnit price / perItem: 157
-
Product Sku1306
Quill, Tailstock, Mini Lathe
Regular price $19.95Regular priceUnit price / perItem: 142
-
Product Sku1287
Pin, Tool Post Detent
Regular price $4.85Regular priceUnit price / perItem: 109
-
Product Sku1291
Spacer, Spindle 7.5 mm
Regular price $0.95Regular priceUnit price / perItem: 12
-
Product Sku1184
Retaining Ring, M8 External
Regular price $0.35Regular priceUnit price / perItem: 172
-
Product Sku1108
Gib, Mini Lathe Cross Slide, 150 mm
Regular price $6.95Regular priceUnit price / perItem: 94
-
Product Sku1369
Key, 5x40 mm
Regular price $0.95Regular priceUnit price / perItem: 7
-
Product Sku1302
Clamp, Tailstock
Regular price $6.55Regular priceUnit price / perItem: 135
-
Product Sku1218
Bearing, 6001-2RS
Regular price $7.95Regular priceUnit price / perItem: 23
-
Product Sku1219
Bearing, 6206-2RS
Regular price $14.95Regular priceUnit price / perItem: 11
-
Product Sku1903
Spacer, Lead Screw
Regular price $1.59Regular priceUnit price / perItem: 188
-
Product Sku1386
Retainer, Cross Slide Screw, Mini Lathe
Regular price $7.95Regular priceUnit price / perItem: 88
-
Product Sku1337
Ball, Steel, 5 mm
Regular price $0.95Regular priceUnit price / perItem: 19
-
Sold outProduct SkuHandle, Quill Clamp
Regular price $5.49Regular priceUnit price / perItem: 146
Sold out -
Product Sku1290
Retainer, Compound Rest Screw, Mini Lathe
Regular price $9.95Regular priceUnit price / perItem: 115
-
Product Sku2265
Label, Half Nut Lever, Mini Lathe
Regular price $0.95Regular priceUnit price / perItem: 302
-
Product Sku1537
Cap Screw, M5x45, Socket Head
Regular price $0.89Regular priceUnit price / perItem: 54
-
Product Sku1530
Cap Screw, M4x12, Socket Head
Regular price $0.99Regular priceUnit price / perItem: 116
-
Product Sku1300
Bracket, Lead Screw Mounting (Right)
Regular price $10.95Regular priceUnit price / perItem: 131
-
Product Sku1204
Tool Post, Mini Lathe, Four-Position
Regular price $22.65Regular priceUnit price / perItem: 112
-
Sold outProduct SkuLabel, Threading Dial (Inch)
Regular price $2.95Regular priceUnit price / perItem: 0
Sold out -
Product Sku1356
Shaft, A-Gear
Regular price $6.69Regular priceUnit price / perItem: 46
-
Product Sku1339
Key, 4x45 mm
Regular price $0.95Regular priceUnit price / perItem: 25
-
Product Sku1304
Screw, Tailstock, Mini Lathe
Regular price $21.69Regular priceUnit price / perItem: 139
-
Product Sku4193
Nut, Hex Thin Chamfered M5
Regular price $0.45Regular priceUnit price / perItem: 90
-
Product Sku1567
Set Screw, M4x14, Socket Dog Point
Regular price $0.39Regular priceUnit price / perItem: 106
-
Product Sku1529
Cap Screw, M4x10, Socket Head
Regular price $0.25Regular priceUnit price / perItem: 141
-
Product Sku1371
Gib, Mini Lathe Half Nut, 67 mm
Regular price $2.95Regular priceUnit price / perItem: 71
-
Product Sku1354
Cover, Drive Belt, Mini Lathe
Regular price $21.99Regular priceUnit price / perItem: 42
-
Product Sku1528
Cap Screw, M3x10, Socket Head
Regular price $0.29Regular priceUnit price / perItem: 133
-
Product Sku1378
Gear, Saddle Drive 11/54 Teeth, Mini Lathe
Regular price $26.95Regular priceUnit price / perItem: 81
-
Product Sku1349
Spring, 10 mm x 33 mm
Regular price $1.59Regular priceUnit price / perItem: 37
-
Product Sku1296
Bracket, Lead Screw Mounting (Left)
Regular price $10.95Regular priceUnit price / perItem: 127
-
Product Sku1410
Lead Screw, Mini Lathe 7x12
Regular price $19.95Regular priceUnit price / per$29.95Sale price $19.95Item: 129
Sale -
Product Sku2914
Label, Thread Cutting Table (Metric)
Regular price $1.95Regular priceUnit price / perItem: 0
-
Product Sku1777
Compound Rest Bottom, Mini Lathe, Drilled & Milled
Regular price $45.95Regular priceUnit price / perItem: 105
-
Product Sku1576
Set Screw, M6x6, Socket Cone Point
Regular price $0.49Regular priceUnit price / perItem: 21
-
Product Sku1559
Screw, M5x8 Pan Head Phillips Machine
Regular price $0.25Regular priceUnit price / perItem: 175
-
Product Sku1569
Set Screw, M5x10, Socket Flat Point
Regular price $0.45Regular priceUnit price / perItem: 101
-
Product Sku1557
Screw, M4x8 Pan Head Phillips Machine
Regular price $0.19Regular priceUnit price / perItem: 170
-
Sold outProduct Sku
Handle, Half Nut
Regular price $5.49Regular priceUnit price / perItem: 79
Sold out -
Product Sku1313
Strain Relief, Power Cord, 7x Mini Lathes
Regular price $1.95Regular priceUnit price / perItem: 152
-
Product Sku1308
Clamp, Quill
Regular price $5.79Regular priceUnit price / perItem: 145
-
Product Sku1215
Compound Rest Bottom, Mini Lathe
Regular price $24.95Regular priceUnit price / perItem: 105
-
Product Sku4186
Set Screw, M6x14 Socket Dog Point
Regular price $0.95Regular priceUnit price / perItem: 137
-
Product Sku1572
Set Screw, M6x12, Socket Cone Point
Regular price $0.55Regular priceUnit price / perItem: 83
-
Product Sku1570
Set Screw, M5x8, Socket Cone Point
Regular price $0.49Regular priceUnit price / perItem: 18
-
Product Sku1350
Detent Rod, Mini Lathe
Regular price $2.95Regular priceUnit price / perItem: 38
-
Product Sku1348
Pivot, Back Gear Shifter
Regular price $10.95Regular priceUnit price / perItem: 36
-
Product Sku1341
Spindle, Mini Lathe, 3MT
Regular price $55.95Regular priceUnit price / perItem: 3
-
Product Sku1316
Label, High/Low, Mini Lathe
Regular price $0.95Regular priceUnit price / perItem: 155
-
Product Sku1580
Stud, M10x65
Regular price $2.15Regular priceUnit price / perItem: 113
-
Product Sku1566
Set Screw, M4x10, Slot Cone Point
Regular price $0.39Regular priceUnit price / perItem: 69
-
Product Sku1540
Cap Screw, M6x16, Socket Head
Regular price $0.65Regular priceUnit price / perItem: 321
-
Product Sku1535
Cap Screw, M5x20, Socket Head
Regular price $0.55Regular priceUnit price / perItem: 318
-
Product Sku1531
Cap Screw, M4x8, Socket Head
Regular price $0.45Regular priceUnit price / perItem: 102
-
Product Sku1370
Apron, Mini Lathe
Regular price $29.95Regular priceUnit price / perItem: 70
-
Product Sku1358
Mount, Change Gear
Regular price $11.69Regular priceUnit price / perItem: 48
-
Product Sku1352
Screw, Back Gear Mounting
Regular price $4.19Regular priceUnit price / perItem: 40
-
Product Sku1335
Switch, Forward, Off, Reverse
Regular price $27.95Regular priceUnit price / perItem: 181
-
Product Sku1305
Retainer, Tailstock
Regular price $8.29Regular priceUnit price / perItem: 140
-
Product Sku1206
Compound Rest Top
Regular price $39.99Regular priceUnit price / perItem: 108
-
Product Sku1107
Protractor, Compound Rest
Regular price $12.95Regular priceUnit price / perItem: 104
-
Product Sku2915
Label, Threading Dial (Metric)
Regular price $2.95Regular priceUnit price / perItem: 0
-
Product Sku3050
Handle, Back Gear Shifter
Regular price $4.95Regular priceUnit price / perItem: 35
-
Product Sku1581
Washer, M10 Flat
Regular price $0.19Regular priceUnit price / perItem: 136
-
Product Sku1573
Set Screw, M6x10, Socket Flat Point
Regular price $0.55Regular priceUnit price / perItem: 320
-
Product Sku1579
Stud, M8x40
Regular price $1.49Regular priceUnit price / perItem: 144
-
Product Sku1538
Cap Screw, M5x8, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 56
-
Product Sku1533
Cap Screw, M5x16, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 197
-
Product Sku1372
Pin, M5x12
Regular price $0.95Regular priceUnit price / perItem: 74
-
Product Sku1342
Fork, High-Low Shifter, Mini Lathes and Mills
Regular price $5.79Regular priceUnit price / perItem: 30
-
Product Sku1320
Gear, Change Gear Drive 45 Teeth, Mini Lathe
Regular price $16.99Regular priceUnit price / perItem: 16
-
Product Sku1286
Cross Slide, 7x Mini Lathes
Regular price $49.95Regular priceUnit price / perItem: 100
-
Product Sku6595
Cap Screw, M8x25, Socket Head
Regular price $0.95Regular priceUnit price / perItem: 323
-
Product Sku4063
Cover, Limit Switch
Regular price $21.29Regular priceUnit price / perItem: 210
-
Product Sku4185
Set Screw, M5x25 Socket Dog Point
Regular price $0.95Regular priceUnit price / perItem: 199
-
Product Sku1583
Washer, M4 Flat Large Diameter
Regular price $0.15Regular priceUnit price / perItem: 72
-
Product Sku1575
Set Screw, M6x25, Socket Flat Point
Regular price $0.79Regular priceUnit price / perItem: 177
-
Product Sku1544
Cap Screw, M8x20, Socket Head
Regular price $0.99Regular priceUnit price / perItem: 97
-
Product Sku1532
Cap Screw, M5x12, Socket Head
Regular price $0.45Regular priceUnit price / perItem: 9
-
Product Sku1374
Cam, Half Nut
Regular price $27.95Regular priceUnit price / perItem: 78
-
Product Sku1344
Pivot, High-Low Shifter
Regular price $9.19Regular priceUnit price / perItem: 32
-
Product Sku
Rear Splashguard, Mini Lathe, 7x10, 7x12
Regular price $9.95Regular priceUnit price / per$29.95Sale price $9.95Item: 153
Sold out -
Product Sku1887
Control Box
Regular price $23.95Regular priceUnit price / perItem: 123
-
Product Sku1909
Screw, M4x6 Round Head Phillips Machine
Regular price $0.19Regular priceUnit price / perItem: 232
-
Product Sku1584
Washer, M5 Flat
Regular price $0.15Regular priceUnit price / perItem: 319
-
Product Sku1539
Cap Screw, M6x12, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 304
-
Product Sku1534
Cap Screw, M5x18, Socket Head
Regular price $0.55Regular priceUnit price / perItem: 49
-
Product Sku1377
Shaft, Saddle Drive
Regular price $6.95Regular priceUnit price / perItem: 80
-
Product Sku1367
Shaft, Threading Dial
Regular price $9.95Regular priceUnit price / perItem: 66
-
Product Sku1365
Stud, Change Gear Adjusting
Regular price $5.49Regular priceUnit price / perItem: 64
-
Product Sku1366
Indicator, Threading Dial
Regular price $6.55Regular priceUnit price / perItem: 65
-
Product Sku1315
Label, Left Feed/Stop/Right Feed
Regular price $1.95Regular priceUnit price / perItem: 154
-
Product Sku1299
Headstock Casting, 7x Mini Lathes
Regular price $49.95Regular priceUnit price / perItem: 13
-
Product Sku1294
Rubber Foot, Mini Lathe
Regular price $4.15Regular priceUnit price / perItem: 125
-
Product Sku1225
Stud, M6x30
Regular price $0.95Regular priceUnit price / perItem: 4
-
Product Sku1340
Shaft, Intermediate 7x10, 7x12 Lathes
Regular price $13.69Regular priceUnit price / perItem: 26
-
Product Sku4187
Bushing, Tailstock, Mini Lathe
Regular price $6.95Regular priceUnit price / perItem: 198
-
Product Sku4189
Set Screw, M6x8 Socket Dog Point
Regular price $0.45Regular priceUnit price / perItem: 327
-
Product Sku1901
Set Screw, M10x35, Socket Dog Point
Regular price $0.99Regular priceUnit price / perItem: 329
-
Product Sku1558
Screw, M5x10 Pan Head Phillips Machine
Regular price $0.35Regular priceUnit price / perItem: 184
-
Product Sku1555
Screw, M4x10 Flat Head Phillips Machine
Regular price $0.19Regular priceUnit price / perItem: 103
-
Product Sku1390
Swivel Disk
Regular price $11.95Regular priceUnit price / perItem: 96
-
Product Sku1379
Gear, Saddle Drive 24 Teeth, Mini Lathe
Regular price $18.95Regular priceUnit price / perItem: 82
-
Product Sku1364
Adjustment Plate, Change Gear
Regular price $11.79Regular priceUnit price / perItem: 61
-
Product Sku1343
Arm, High-Low Shifter
Regular price $9.75Regular priceUnit price / perItem: 31
-
Product Sku1328
Brace, Chip Tray
Regular price $18.95Regular priceUnit price / perItem: 169
-
Product Sku1411
Rack, Mini Lathe 7x12
Regular price $9.99Regular priceUnit price / per$16.99Sale price $9.99Item: 134
Sale -
Product Sku3380
Power Cord with Plug
Regular price $9.95Regular priceUnit price / perItem: 124
-
Product Sku1389
Saddle, Mini Lathe
Regular price $49.95Regular priceUnit price / perItem: 93
-
Product Sku1330
Clamp, Power Cord
Regular price $0.95Regular priceUnit price / perItem: 171
-
Product Sku1312
Cover, Motor, Mini Lathe, 7x10, 7x12
Regular price $13.39Regular priceUnit price / perItem: 151
-
Product Sku1381
Handle Set, Handwheel, Mini Mill
Regular price $8.45Regular priceUnit price / perItem: 85
-
Product Sku4963

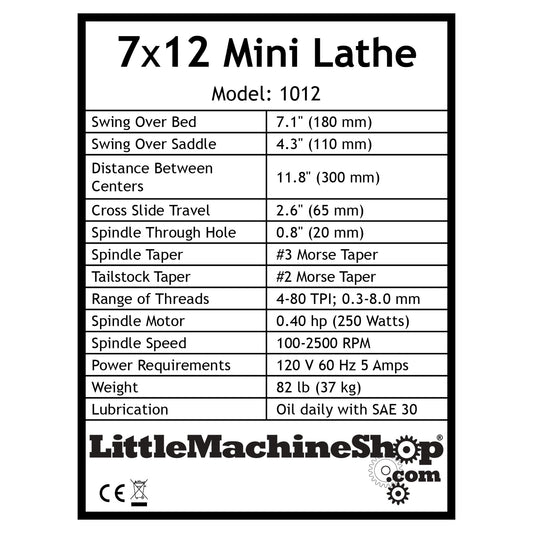

Label, 7x12 Mini Lathe
Regular price $5.95Regular priceUnit price / perItem: 000
-
Product Sku1886
Label, Control Panel, 7x12 and 7x14 Mini Lathe
Regular price $4.95Regular priceUnit price / per$8.95Sale price $4.95Item: 122
Sale -
Product Sku1585
Washer, M6 Flat
Regular price $0.19Regular priceUnit price / perItem: 208
-
Product Sku1368
Housing, Threading Dial
Regular price $16.79Regular priceUnit price / perItem: 68
-
Product Sku1327
Rubber Pad, Mini Lathe
Regular price $0.95Regular priceUnit price / perItem: 168
