Starrett Precision Tools

Starrett Precision Tools - LittleMachineShop.com

Starrett, a leader who has set the standard for fine precision tools in industry for over 120 years, has rightfully earned the title, "World's Greatest Toolmakers". LittleMachineShop.com carries Starrett products, so you can choose products that will last a lifetime. Get great measuring tools as well as premium-quality saw blades.

4235   4th Axis 6" Rotary Table Package, Tormach
The 4th Axis kit includes a motorized rotary table, driver, and complete installation wiring harness to add a 4th axis to the PCNC 770 or PCNC 1100. The kit supports coordinated motion between X, Y, Z and 4th axis. The 4th axis extends your machining capability to include rotation of the work piece. This is a fully integrated axis, allowing simultaneous and coordinated motion with all other axes. Whether you're cutting timing screws, cable winding drums, turbine impellers, or simply engraving on cylinders, our 4th axis options are just the ticket. Includes: Motorized rotary table, mounting hardware, axis driver, wiring, and connection port.

3519   4th Axis Rotary Table for CNC

  • Includes stepper motor
  • Includes tailstock
  • Includes adapter to mount a 3" lathe chuck
  • Includes hold down clamps to mount the rotary table on the mill table
This 4" (100 mm) 4th axis rotary table is great for small CNC milling machines.

4917   Air Compressor

  • Syclone 4610 Air Compressor
An Ultra Quiet 1HP 4.6 Gallon Twin Steel Tank compressor. 72 decibel operation. 3000 hr lifecycle compared to 500 hr lifecycle typical of consumer grade compressors. Features an integrated regulator and two integrated pressure gauges to monitor both tank pressure and regulated output pressure. Two universal quick connectors allow for simultaneous use of two tools. Oil-free pump has factory preset start (95 psi) and shut-off (116 psi) pressures for worry-free power draw bar operation. 110VAC/60Hz.

2620   Automatic Center Punch, Starrett
Starrett Automatic Center Punch with adjustable stroke. Starrett catalog number 818. This punch has a lightweight, knurled aluminum handle for a positive grip and easy handling. No hammer is required! Just hold the punch in an upright position, press the handle down, and a built-in mechanism strikes a perfect center mark every time. The force of the blow can be adjusted by turning the knurled cap. All working parts are made of tool steel, properly hardened. The hardened tool steel point can easily be removed for resharpening or replacement. Works on metal, plastics, wood and other machinable materials.

3553   Automatic Center Punch, Starrett

  • Starrett Automatic Center Punch with adjustable stroke
  • Starrett catalog number 18A
Rugged automatic punches have all-steel handles and parts. These punches have a mechanism that automatically strikes a blow when downward pressure is applied. No hammer is required, making one hand always free to steady the work. The adjustable knurled cap regulates the force of the blow. Should a heavy mark be required, the cap is screwed down. Progressively lighter marks are obtained by turning the cap upward. The tension of the spring, which regulates the blow is constant, so marks made by the point are uniform in depth and size for each setting. The point can be easily removed for regrinding and/or replacement. All sizes are identical in style, differing only in the striking power.

4290   Automatic Tool Changer, PCNC 1100

  • 10 position Tool Tray
  • Slide activation via double acting pneumatic cylinder with cushion
  • Integrated touch-off routine (requires electronic tool setter)
  • Requires power drawbar.
The Tormach Tooling System ATC is a 10 tool carousel-style automatic TTS tool changer for the PCNC 1100 Mill. The side mounted changer integrates with our existing power draw bar system to automatically change tools via controller command. The design features a retractable carousel cover for chip protection, and automated air-blast to clear chips from the tool shank. The carousel slides into position with a double-acting air cushioned pneumatic cylinder. Exchangeable virtual tool trays mean that tooling can be changed en mass by a simple tray swap, allowing a different tray to be dedicated to each job. Tool pockets can be independently assigned to any tool number, so there’s no need to change existing programs so they match tool tray pockets numbers. The control software integrates with Mach3, and includes a graphical screenset for quick identification of tool location in the carousel. A built-in integrated tool touch-off routine allows automated tool setting of the entire carousel with a single button (requires optional electronic tool setter). When needed, the ATC can be easily bypassed or used in conjunction with manual tool changes if more than 10 tools are needed for a job. Carousel position feedback ensures the ATC is in the correct position prior to a tool change. Control software interlocks detect and warn against potential collision scenarios and a low-air pressure warning protects against ATC actuation prior to reaching proper holding pressure.

4782   Automatic Tool Changer, PCNC 770

  • 10 position Tool Tray
  • Slide activation via double acting pneumatic cylinder with cushion
  • Integrated touch-off routine (requires electronic tool setter)
  • Requires power drawbar.
The Tormach Tooling System ATC is a 10 tool carousel-style automatic TTS tool changer for the PCNC 770 Mill. The side mounted changer integrates with our existing power draw bar system to automatically change tools via controller command. The design features a retractable carousel cover for chip protection, and automated air-blast to clear chips from the tool shank. The carousel slides into position with a double-acting air cushioned pneumatic cylinder. Exchangeable virtual tool trays mean that tooling can be changed en mass by a simple tray swap, allowing a different tray to be dedicated to each job. Tool pockets can be independently assigned to any tool number, so there’s no need to change existing programs so they match tool tray pockets numbers. The control software integrates with Mach3, and includes a graphical screenset for quick identification of tool location in the carousel. A built-in integrated tool touch-off routine allows automated tool setting of the entire carousel with a single button (requires optional electronic tool setter). When needed, the ATC can be easily bypassed or used in conjunction with manual tool changes if more than 10 tools are needed for a job. Carousel position feedback ensures the ATC is in the correct position prior to a tool change. Control software interlocks detect and warn against potential collision scenarios and a low-air pressure warning protects against ATC actuation prior to reaching proper holding pressure.

4936   Band Saw Blade, 44-7/8", Univerz Bi-Metal 10-14/S, Starrett

  • 10-24 Teeth per inch, straight set, zero rake, variable pitch
  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws. This is a single band saw blade.

4932   Band Saw Blade, 44-7/8", Univerz Bi-Metal 10/S, Starrett

  • 10 Teeth per inch, straight set, zero rake, uniform pitch
  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws. This is a single band saw blade.

4937   Band Saw Blade, 44-7/8", Univerz Bi-Metal 14-18/W, Starrett

  • 14-18 Teeth per inch, wavy set, zero rake, variable pitch
  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws. This is a single band saw blade.

4933   Band Saw Blade, 44-7/8", Univerz Bi-Metal 14/S, Starrett

  • 14 Teeth per inch, straight set, zero rake, uniform pitch
  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws. This is a single band saw blade.

4934   Band Saw Blade, 44-7/8", Univerz Bi-Metal 18/W, Starrett

  • 18 Teeth per inch, wavy set, zero rake, uniform pitch
  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws. This is a single band saw blade.

4935   Band Saw Blade, 44-7/8", Univerz Bi-Metal 24/W, Starrett

  • 24 Teeth per inch, wavy set, zero rake, uniform pitch
  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws. This is a single band saw blade.

4461   Band Saw Blade, 64-1/2", Duratec FB 10/S, Starrett

  • 10 Teeth per inch
  • For sections 1/2" to 1" thick
Starrett Duratec PH band saw blade 64 1/2" x 1/2" x 0.025". This blade has 10 teeth per inch, for cutting sections over 1/2" to 1" thick. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. Made from carbon steel with a flexible back, Duratec FB is ideal for economical cutting on easy-to-machine ferrous or nonferrous metal, low alloy steel, wood, and plastic. The flexible carbon steel back is ideal for both contour and straight cutting.

4462   Band Saw Blade, 64-1/2", Duratec FB 14/S, Starrett

  • 14 Teeth per inch
  • For sections 1/4" to 3/4" thick
Starrett Duratec PH band saw blade 64 1/2" x 1/2" x 0.025". This blade has 14 teeth per inch, for cutting sections over 1/4" to 3/4" thick. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. Made from carbon steel with a flexible back, Duratec FB is ideal for economical cutting on easy-to-machine ferrous or nonferrous metal, low alloy steel, wood, and plastic. The flexible carbon steel back is ideal for both contour and straight cutting.

4463   Band Saw Blade, 64-1/2", Duratec FB 24/W, Starrett

  • 24 Teeth per inch
  • For sections up to 1/4" thick
Starrett Duratec PH band saw blade 64 1/2" x 1/2" x 0.025". This blade has 24 teeth per inch, for cutting sections up to 1/4” thick. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. Made from carbon steel with a flexible back, Duratec FB is ideal for economical cutting on easy-to-machine ferrous or nonferrous metal, low alloy steel, wood, and plastic. The flexible carbon steel back is ideal for both contour and straight cutting.

4460   Band Saw Blade, 64-1/2", Duratec FB 6/S, Starrett

  • 6 Teeth per inch
  • For sections over 1" thick
Starrett Duratec PH band saw blade 64 1/2" x 1/2" x 0.025". This blade has 6 teeth per inch, for cutting sections over 1” thick. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. Made from carbon steel with a flexible back, Duratec FB is ideal for economical cutting on easy-to-machine ferrous or nonferrous metal, low alloy steel, wood, and plastic. The flexible carbon steel back is ideal for both contour and straight cutting.

1876   Band Saw Blade, 64-1/2", Intenss PRO-DIE 10-14S, Starrett
Starrett Intenss PRO-DIE band saw blade 64-1/2" x 1/2" x 0.025". This blade has 10-14 teeth per inch, for cutting sections over 1/4” to 1-1/4” thick. The regular tooth shape is the conventional tooth for general purpose sawing, straight zero rake. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. The variable tooth pitch reduces noise levels and vibration and cuts structurals, tubing and solids smoothly and quickly. Intenss PRO-DIE is the ideal general-purpose metal sawing blade. Intenss PRO-DIE band saw blades have bi-metal unique saw technology, triple tempered M-42 cobalt HSS teeth combined with alloy steel backing strip for heat, abrasion and shock resistance, longevity and chip clearing. Ideal for tool, die and mold steels, stainless and nickel based and non-ferrous alloys.

1854   Band Saw Blade, 64-1/2", Intenss PRO-DIE 6/P-HP, Starrett
Starrett Intenss PRO-DIE band saw blade 64-1/2" x 1/2" x 0.025". The hook tooth shape has a 10" positive rake for fast cutting of non-ferrous metals and non-metallics. This blade has 6 teeth per inch, for cutting sections over 1” thick. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. The hook tooth shape has a 10" positive rake for fast cutting of non-ferrous metals and non-metallics. Intenss PRO-DIE is the ideal general-purpose metal sawing blade. Intenss PRO-DIE band saw blades have bi-metal unique saw technology, triple tempered M-42 cobalt HSS teeth combined with alloy steel backing strip for heat, abrasion and shock resistance, longevity and chip clearing. Ideal for tool, die and mold steels, stainless and nickel based and non-ferrous alloys.

1855   Band Saw Blade, 64-1/2", Intenss PRO-DIE 8-12S, Starrett
Starrett Intenss PRO-DIE band saw blade 64-1/2" x 1/2" x 0.025". This blade has 8-12 teeth per inch, for cutting sections over 11/32" to 1-1/2" thick. The regular tooth shape is the conventional tooth for general purpose sawing, straight zero rake. These blades fit the popular 4x6 band saw sold by Harbor Freight, Grizzly and many others. The variable tooth pitch reduces noise levels and vibration and cuts structurals, tubing and solids smoothly and quickly. Intenss PRO-DIE is the ideal general-purpose metal sawing blade. Intenss PRO-DIE band saw blades have bi-metal unique saw technology, triple tempered M-42 cobalt HSS teeth combined with alloy steel backing strip for heat, abrasion and shock resistance, longevity and chip clearing. Ideal for tool, die and mold steels, stainless and nickel based and non-ferrous alloys.

2555   Band Saw Blades, Duratec FB, Starrett
Starrett Duratec PH band saw blade 64 1/2" x 1/2" x 0.025". Made from carbon steel with a flexible back, Duratec FB is ideal for economical cutting on easy-to-machine ferrous or nonferrous metal and wood. It is for general purpose contour and straight cutting on a variety of machines.

2556   Band Saw Blades, Intenss PRO-DIE, Starrett
Starrett Intenss PRO-DIE band saw blade 64-1/2" x 1/2" x 0.025". Intenss PRO-DIE band saw blades have bi-metal unique saw technology, triple tempered M-42 cobalt HSS teeth combined with alloy steel backing strip for heat, abrasion and shock resistance, longevity and chip clearing. Ideal for tool, die and mold steels, stainless and nickel based and non-ferrous alloys.

4931   Band Saw Blades, Porta-Band Bi-Metal, Starrett

  • 44-7/8" (1140 mm) x 1/2" (13 mm) x 0.020" (0.5 mm)
  • Triple tempered M-42 cobalt high speed steel teeth with a fatigue resistant alloy steel backer
  • Patented "Twin Tooth" design of the Split-Chip advantage "bi-metal unique"
  • Faster cutting and longer life than ordinary blades
  • Available in a variety of tooth pitches
These blades utilize Starrett’s exclusive bi-metal unique saw technology for faster cutting and longer blade life. Besides fitting LittleMachineShop.com portable band saws, these blades fit Black & Decker, DeWalt, Greenlee, Makita, Unitec, Porter-Cable, Ridgid, Rockwell, Skil, Milwaukee portable band saws.

4918   Cable Package

  • One Video Extension Cable, SVGA
  • Two USB Extension Cables 10'
  • One USB Bulkhead Port Assembly
These are the cables you need to connect a computer through the machine arm to the keyboard and monitor.

4869   Cables, Tormach Extension

  • Two USB extension cables
  • One video extension cable, SVGA
These extension cables reach through the Tormach machine arm. All cables are 10' long.

2654   Case, Precision Machinists Level, 12", Starrett

  • Case for Starrett 98-12 level
  • Starrett catalog number 98Z-12
Wooden case for Starrett 98-12 12" precision machinist's level.

1829   Center Gage, 60 Degree, Starrett

  • Starrett 60 degree center gage
  • Starrett catalog number C391
  • Extremely handy for use in grinding and setting thread cutting tools
These gages meet the following standards: American National or U.S. 60°, Whitworth or English 55°, and Metric 60°. They also have a very useful scale for finding the number of threads per inch through graduations in 14ths, 20ths, 24ths and 32nds of an inch. The gage also has a table of double depths of threads for determining size of tap drills.

1820   Center Punches, Starrett
Starrett Center Punches with round shanks. Set of 5, Nos. 117AA, A, B, C, D in Plastic Case Starrett catalog number S117PC. This set includes the following sizes, measured at the top of the tapered point: 1/16”, 5/64”, 3/32”, 1/8”, and 5/32” diameter. Starrett No. 117 Center Punches are made of specially selected steel, hardened and properly tempered. They are well proportioned, nicely finished and have a knurled finger grip. The points are ground at the proper angle to give maximum service, and the tips are accurately centered. These punches are universally used, but most often by machinists. They are well-proportioned for ease of use. The specially selected tool steel is hardened and tempered to the proper hardness. All of them feature nicely knurled finger grips for ease of handling. A special tempering process makes the head less likely to fracture from a hard, off-center blow. ALWAYS WEAR SAFETY GLASSES WHEN USING STRIKING AND STRUCK TOOLS.

2652   Collet Adapter for Edge Finders, Starrett

  • Starrett catalog number PT28314
This is a time saving accessory for edge finders with a 3/8" shank. The collet adapter allows quick installation and removal of the edge finder, eliminating the need for collet changes on Bridgeports and similar machines. It can be used with any attachment with a 3/8" shank. The progressive steps are 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" and 1". Step depths vary from .100" to .200".

3589   Combination Square Set, 12", Starrett

  • Starrett 12" combination square set
  • Includes square head, center head and reversible protractor head
  • Starrett catalog number C435-12-4R
  • Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths
The combination square set has reversible lock bolts, scriber, spirit level in both square head and protractor head, direct reading double 180° protractor scale, hardened steel, photoengraved blade. Cast iron heads with black wrinkle finish. The blade is 1" wide and 3/32" thick and has a satin chrome finish.

2656   Combination Square Set, 6", Starrett

  • Starrett 6" junior combination square set
  • Includes square head and center head
  • Starrett catalog number 33JHC-6-4R
  • Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths
Starrett catalog number 33JHC-6-4R. Starrett 6" junior combination square set with square head and centering head and blade. These squares are used by mechanics, toolmakers and patternmakers because of their compact, small size and light weight. Both blade and heads are smaller than on regular squares. Heads are drop forged, hardened steel and have smooth, black enamel finish. The blade is 3/4" wide and 5/64" thick.

1839   Combination Square, 12", Starrett

  • Starrett 12" combination square with square head
  • Starrett catalog number 11H-12-4R
  • Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths
The square has a reversible lock bolt, scriber, spirit level, and hardened steel, photoengraved blade with regular finish. Cast iron head with black wrinkle finish. The blade is 1" wide and 3/32" thick.

2451   Combination Square, 4", Starrett

  • Starrett 4" combination square with square head
  • Starrett catalog number 11H-4-4R
  • Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths
Starrett catalog number 11H-4-4R. The square has a reversible lock bolt, scriber, spirit level, and hardened steel, photoengraved blade with regular finish. Cast iron head with black wrinkle finish. The blade is 5/8" wide and 1/16" thick.

4244   Computer, Machine Controller

  • Dual Core Atom processor
  • 60 GB solid state drive
  • 2 GB Memory
  • 19" Flat screen monitor
  • Keyboard & Mouse
The Mini-ITX Dual Core Atom computer includes the computer, a 19" flat screen monitor, plus keyboard and mouse. It comes with a fully licensed copy of Windows 7 Home Premium. This computer mounts on the back of the flat-screen monitor using the VESA mounting holes. This is a very compact setup for your shop. We even include a short monitor cable. This computer includes a parallel port on the motherboard, and is guaranteed to work with LittleMachineShop.com CNC milling machines with parallel interface. This computer is optimized to run Mach3. It's not designed to run CAD/CAM software. But you don't want to use those programs in your shop anyway. Install CAD/CAM programs on your desktop computer.

3834   Coolant Kit, Tormach PCNC 770 CNC Mill
This flood coolant kit is highly recommended for general metal cutting. The kit includes a coolant reservoir tank, pump, hose, and necessary fittings and mounting brackets. It also includes a backsplash surround and chip guard. Shown with the PCNC 770 mill and stand (not included)

3433   Coolant Line Assembly, 12" Loc-Line

  • Kool Mist part number PML-12
This coolant line assembly fits Kool Mist flexline, and PortaMist models. This is a 12" long Loc-Line coolant line assembly.

3546   Depth Gage, 6" Combination, Starrett

  • Starrett 6" combination gage, 32nds/64ths
  • Starrett catalog number 236
  • Combination depth gage and protractor
This depth gage has an added feature permitting its use as a protractor for measuring angles. It is a simple, handy tool that is a welcome addition to any machinist's tool box. The head is graduated both left and right to 30, 45, and 60 degrees. The rule can be set to any of these angles by swinging the rule until the line on the turret coincides with the desired angle Head is made of hardened steel, ground, and nicely polished – 2 5/8" (66mm) long and 1/8" (3mm) wide One side of the base is cut out to permit easier and more accurate readings The center of the head is recessed so that the tool will lay flat to permit more accurate measurements A tempered rule that has been accurately machined divided, is smoothly fitted to the head and can be locked in position by a knurled nut

3547   Depth Gage, 6" Steel Rule, Starrett

  • Starrett steel rule depth gage, 0-6" range, 32nds/64ths
  • Starrett catalog number 237
These very handy depth gages can be used to quickly obtain measurements in 64th of an inch by simply adjusting the rule to the required depth. The gage consists of a nicely finished, hardened steel head and an accurate, machine divided, tempered steel rule. The rule is Starrett No. 610N. The gage can be smoothly adjusted to the required measurement and then locked into position by a knurled nut The base is cut out on one side, adjacent to the rule, permitting easier readings and more accurate measurements

1830   Dial Caliper, 6", Starrett

  • Starrett 6” white dial caliper and fitted case
  • Starrett catalog number 120A-6
This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable, and accurate. The Starrett 120 Series dial calipers are the only American made dial calipers on the market.

3166   Dial Caliper, 6", Starrett

  • Starrett 6” white dial caliper and fitted case
  • Starrett catalog number 3202-6
  • Sharp, clear dial graduations of .001" with .100" per revolution
  • Sharp, black graduations on the satin finished bar, every .100"
This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable, and accurate. With the ability to provide quick, accurate measurement of O.D., I.D. and depth, the dial caliper is the most versatile precision hand tool on the market. Imported

1835   Dial Indicator, 1", Starrett

  • Range: 1.000"
  • Face diameter: 2-1/4"
  • Graduations: 0.001"
  • Shockless, hardened steel gear train and jewel bearings
  • Lug on center of the back
Starrett catalog number 25-441J. These indicators have a shockless, hardened steel gear train and jewel bearings. They are furnished with a lug on the center of the back. This is an AGD Group 2 indicator with a 2.25" Diameter face, 0.375" shank, and #4-48 tip thread.

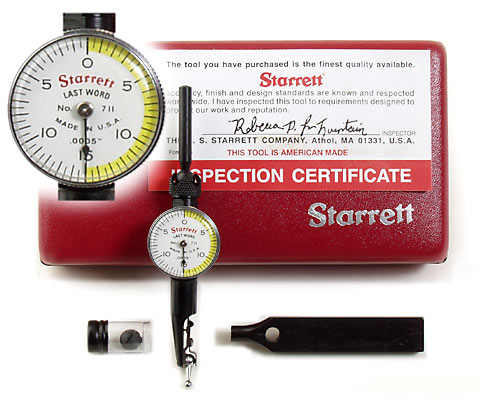

1819   Dial Indicator, Starrett Last Word

  • Starrett dial indicator with universal friction holder with shank
  • Graduation: 0.0005"
  • Range: 0.030"
  • Dial Reading: 0-15-0
Starrett catalog number 711LPSZ. Steel Contact Point Length: 5/32" (4 mm) Steel Contact Point Ball Diameter: 0.120" (3 mm) These handy test indicators are among the most versatile available. Their small size and variety of attachments handle all jobs with ease and accuracy. A very useful feature is the shaded dial - when used with a mirror, such as in a jig bore application, the operator always knows where he is.

3548   Dial Test Indicator, 0-5-0 x 0.0001", Dovetail Mount, Starrett

  • Starrett dial test indicator with dovetail mount
  • Starrett catalog number 708AZ
  • Dial test indicator with 0.0001" graduations
  • Range is 0.010"
These precision test indicators were designed to be positioned for easy and accurate readability. The versatility of the angled head, combined with the three dovetail mounts eliminates the need for having both vertical and horizontal style test indicators. These are the features that make this series of test indicators superior to ordinary types. Angled head for better reading position Large 1 3/8" (35mm) dial diameter Precision gear-driven design with smooth, jeweled movement Meet or exceed ISO accuracy specification For extreme accuracy we recommend positioning the lever contact so that it is approximately 15° from being horizontal with the workpiece. Three dovetail positioning mounts work with existing test indicator accessories Inch reading indicators are available with easy-to-read, shaded white, solid red, or solid black dials - millimeter reading indicators with solid yellow dials Contact point reverses automatically, always maintaining clockwise hand rotation Narrow body for inreach ability Satin chrome finish for durability Long carbide contacts 13/16" (20mm) are furnished as standard. Contacts are frictionally adjustable and replaceable

3168   Dial Test Indicator, 0-5-0 x 0.0001", Starrett

  • Starrett dial test indicator with attachments
  • Starrett catalog number 708ACZ
  • Range is 0.005" in either direction
  • Precision gear-driven design with smooth, jeweled movement
  • Dial test indicator comes in a fitted case
These precision test indicators were designed to be positioned for easy and accurate readability. The versatility of the angled head, combined with the three dovetail mounts eliminates the need for having both vertical and horizontal style test indicators. Includes a dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and a snug and rod unit. For extreme accuracy we recommend positioning the lever contact so that it is approximately 15° from being horizontal with the workpiece

3559   Double Square, 4", Starrett

  • Starrett 4" double square with graduated blade
  • Starrett catalog number 13A
  • Popular with machinists, toolmakers, and patternmakers
The sliding blade is adjustable making it more practical for a wide variety of uses than a common square with fixed blade. The faces of the head are ground square.

2025   Double Square, 6", Starrett

  • Starrett 6" double square with graduated blade
  • Starrett catalog number 13C
  • Popular with machinists, toolmakers, and patternmakers
  • The head is approximately 3-1/2" (90 mm) long
  • The faces are approximately 9/16" (14 mm) wide
The sliding blades are adjustable making it more practical for a wide variety of uses than a common square with fixed blade. The faces of the head are ground square, and the 6" (150 mm) size has a level. The beveled blade and the drill grinding blade shown at the bottom of the photo are not included with this product.

3669   Drawbar, 2MT x 3/8-16, 3501 Mill

  • For 3501 and KX1 CNC mill
  • 3/8"-16 drawbar thread
  • For 2MT spindle
  • 8-5/8" long when measured like a bolt

3761   Drawbar, 2MT x M10, 3501 Mill

  • For 3501 and KX1 CNC mill
  • M10 x 1.5 mm drawbar thread
  • For 2MT spindle
  • 8-5/8" long when measured like a bolt

3552   Drill Gage, A-Z Drill Sizes, Starrett

  • Starrett Standard Letter Size Drill Gage, A-Z range
  • Starrett catalog number 198
Letter size drills can be quickly and conveniently checked with this gage. Twenty-six holes are provided, giving corresponding drill sizes from "A" through "Z" with decimal equivalents from .234" diameter through .413" diameter. The gage is approximately 5/64" thick by 2 5/16" wide and 6 1/4" long, is hardened and has a satin finish. Thoroughly tested after hardening.

3551   Drill Gage, Jobbers, 1/16-1/2", Starrett

  • Starrett Jobbers' Drill Gage, 1/16-1/2" Range
  • Starrett catalog number 187
Using this gage, the size of any twist drill from 1/16-1/2" by 64ths can be quickly determined. The gage has a total of 29 holes, each marked with the drill size in inches and the decimal equivalent. Gage is rigidly tested after hardening and has a black matte finish. Gage information is steel stamped on one side and white marked on the reverse side for quick, clear reading. Approximately 5/64" thick by 2 5/16" by 6 1/4" long.

3557   Drill Point Gage, Starrett

  • Starrett Drill Point Gage, 59° bevel, 32nds graduations
  • Starrett catalog number 22C
  • The head is beveled to 59° (the correct drill point angle)
  • Graduated in 32nds along the 59° face for measuring the drill lips
This gage was designed specifically for use in drill grinding. It provides a quick, accurate way for determining the correct drill point angle of 59° and the correct length of drill lips necessary for clean-cut drilling at maximum feeds and speeds. The sliding head may be adjusted to any position along the rule and locked by a thumb nut. The head is beveled to 59° (the correct drill point angle), and is also graduated in 32nds along the 59° face for measuring the drill lips which should be of equal lengths. The hook rule has accurate, machine-divided graduations in 8ths, 16ths, quick-reading 32nds and 64ths. Hook is adjustable and can be shortened or extended on either side of the rule, and may also be removed if desired. Tool can also be used as a plain rule, hook rule, depth gage, and slide caliper. The No. 22D Head-only will fit all steel rules 3/4" wide by 3/64" thick

3884   Drive Pin Punches, Extra Long, Starrett

  • Set of 5 extra long 8" pin punches
  • Includes 1/8", 3/16", 1/4", 5/16", and 3/8" punches
  • Well proportioned, hardened, proper tempered with a knurled grip
  • Includes vinyl case
  • Starrett catalog number S248PC
Starrett No. 248 Drive Pin Punches are extra-long, measuring 8" (200 mm). The bodies are 4-1/2" (115 mm) and the drive pin sections are 3-1/2" (90 mm) long. They are well-proportioned, hardened, properly tempered, and have a knurled grip. They are designed to withstand hard use and provide a most satisfactory punch for machine shop and motor service work. Just the punch to follow long cotter pins and the like into holes without hindrance. The diameters of the punches are slightly under the sizes listed. ALWAYS WEAR SAFETY GLASSES WHEN USING STRIKING AND STRUCK TOOLS.

1821   Drive Pin Punches, Starrett
Starrett 8 piece drive pin punch set. Set of 8, Nos. 565A/B/C/D/E/F/G/H in a round container. Starrett catalog number S565WB. This set includes the following diameter punches: 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 5/16". Starrett No. 565 Drive Pin Punches are well proportioned, hardened, properly tempered, nicely finished, and have a knurled finger grip. Each punch has the size stamped on the head. These punches are universally used, but most often by machinists. They are well-proportioned for ease of use. The specially selected tool steel is hardened and tempered to the proper hardness. All of them feature nicely knurled finger grips for ease of handling. A special tempering process makes the head less likely to fracture from a hard, off-center blow. ALWAYS WEAR SAFETY GLASSES WHEN USING STRIKING AND STRUCK TOOLS.

3793   Edge and Center Finder, Metric, Starrett
Starrett double end edge and center finder. Starrett catalog number 827MB. The body is 10 mm diameter. One end has a 6 mm diameter contact. The other end has a pointed contact. Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels, or center points and scribed lines - all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.

1822   Edge and Center Finder, Starrett
Starrett double end edge and center finder. Starrett catalog number 827B. The body is 0.500” diameter. One end has a 0.200” diameter contact. The other end has a pointed contact. Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels, or center points and scribed lines - all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.

1823   Edge Finder, Starrett
Starrett single end edge finder. Starrett catalog number 827A. The body is 0.375” diameter. The contact end is 0.200” diameter. Work surfaces may be located easily, quickly and accurately with these Starrett edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels, or center points and scribed lines - all can be accurately located with this machinist edge finder. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.

4458   Electronic Digital Caliper, 6", Starrett 798

  • Large, easy-to-read LCD display
  • IP67 level of protection against coolant, water, dirt and dust
  • Hardened stainless steel measuring surface for long life
  • Fine adjustment for precision measurements
  • Resolution is .0005" (0.01 mm)
Starrett 6” electronic digital caliper resists coolant, water, dirt and dust. Starrett catalog number 798A-6/150. The Starrett 798 electronic caliper provides an IP67 level of protection against foreign matter in hostile shop environments. In addition to being coolant and water resistant, the 798 also offers excellent protection against chips, dirt, dust, and other contaminants. The extra large LCD (character height .310") makes the 798 exceptionally easy to read. All 798 models also include an output port for RS232 equipped devices. While there are other IP67 electronic calipers available, only the 798 is a Starrett - for a century and a quarter, the tool of choice for the most experienced toolmakers and machinists when the measurements are most critical. According to IEC529, in IP67 the first number "6" identifies protection against ingress of dust and the second number "7" identifies submersion in water under standardized conditions of pressure for 30 minutes. With this caliper you can set zero at any position, read inches or millimeters, and lock the slide in position. There is a manual on/off button, plus the caliper turns itself off after thirty minutes of inactivity.

2752   Electronic Digital Caliper, 6", Starrett 799

  • Large, easy-to-read LCD display can be zeroed at any position
  • Automatic shut-off after 5 minutes of nonuse, last measuring position retained when shut off
  • Hardened stainless steel body for long life
  • Fine adjustment thumb wheel
  • Resolution is .0005" (0.01mm) and linear accuracy meets DIN 862 standard
Starrett 6” electronic digital caliper Starrett catalog number 799A-6/150 Starrett's 799 series electronic calipers are light, comfortable, easy to use, and constructed with features that have made Starrett slide calipers the machinist's first choice for many years. They have a slim, streamlined profile, function buttons for zero and inch/mm, a large, clear, easy-to-read LCD display, and long battery life. The 799 Calipers are furnished in a fitted, protective case. Jaw Depths: 1 1/2" outside, 5/8" inside.

3167   Electronic Digital Indicator, 0.5", Starrett

  • Starrett 0.5" digital electronic AGD Group 2 indicator
  • Starrett catalog number 3600-5
  • Range .500" (12.7mm)
  • Resolution .0005" (.01mm)
  • Reverse travel (± control indicates direction)
This electronic digital indicator features a large, easy to read LCD display. You can set zero at any position and change the direction that shows positive dimensions. The indicator has a 3/8" shank and the tip thread is #4-48. The case has a mounting lug on the back.

5377   Electronic Digital Indicator, 0.5", Starrett Style

  • 0.5" digital electronic AGD Group 2 indicator
  • Range .500" (12.7mm)
  • Resolution .0005" (.01mm)
  • Reverse travel (± control indicates direction)
  • True inch/mm conversion
This electronic digital indicator features a large, easy to read LCD display. You can set zero at any position and change the direction that shows positive dimensions. The indicator has a 3/8" shank and the tip thread is #4-48. The case has a mounting lug on the back. Front battery cover allows easy access to change battery. Extra large LCD display. Absolute zero reset button. Zero at any point. On/Off button. Flat Back with Lug Back included Battery included: SR44, 1.55V. Supplied with fitted case.

1850   Hacksaw Blade, Bi-Metal, 18 TPI, Starrett

  • Starrett bi-metal uniqueHSS Safe-Flex hacksaw blade
  • Starrett catalog number BS1218
This blade is 12” long, 1/2" wide, and has 18 teeth per inch. The blade is 0.025” thick. Starrett bi-metal unique high speed steel Safe-Flex hacksaw blades are made with a patented solid-state diffusion process with 170% more HSS weld area and ground teeth for reduced blade fracture, faster cutting and longer life.

1851   Hacksaw Blade, Bi-Metal, 24 TPI, Starrett

  • Starrett bi-metal unique HSS Safe-Flex hacksaw blade
  • Starrett catalog number BS1224
This blade is 12" long, 1/2" wide and has 24 teeth per inch. The blade is 0.025" thick. bi-metal unique high speed steel Safe-Flex hacksaw blades are made with a patented solid-state diffusion process with 170% more HSS weld area and ground teeth for reduced blade fracture, faster cutting and longer life.

3561   Hacksaw Blade, Bi-Metal, 32 TPI, Starrett

  • Starrett bi-metal unique HSS Safe-Flex hacksaw blade
  • Starrett catalog number BS1232
This blade is 12" long, 1/2" wide and has 32 teeth per inch. The blade is 0.025" thick. bi-metal unique high speed steel Safe-Flex hacksaw blades are made with a patented solid-state diffusion process with 170% more HSS weld area and ground teeth for reduced blade fracture, faster cutting and longer life.

4319   Hacksaw Blades, Bi-Metal, Individual Sizes, Starrett

  • Starrett bi-metal uniqueHSS Safe-Flex hacksaw blades
These blades are 12" long, 1/2" wide and are 0.025" thick. Bi-metal unique High Speed Steel Safe-Flex hacksaw blades are made with a patented solid-state diffusion process with 170% more HSS weld area and ground teeth for reduced blade fracture, faster cutting and longer life.

3562   Hacksaw Frame, Heavy Duty, Starrett

  • Starrett Closed Grip Heavy Duty High-Tension Hacksaw Frame
  • Starrett catalog number K145
  • 12" (300mm) frame
  • 4-3/8" (110mm) throat depth
The K145 is a rugged, professional quality high-tension frame constructed of cast aluminum with an extra-thick tubular steel bar for added strength. The steel tube also provides on-hand storage for spare blades. The K145 High-Tension Frame is engineered for use with Starrett bi-metal Bluestripe® and Greenstripe® blades. With just three 360° turns, the easy to use adjusting screw will tension the blade up to 28,000 psi (2,000kg/cm) which prevents the blade from twisting and binding when bearing down on the cut. Each K145 Heavy Duty High-Tension Frame is shipped with a Starrett Bluestripe bi-metal unique ground tooth hacksaw blade.

3181   Height Gage, 6", Digital, Starrett

  • Starrett 0-6" (0-150 mm) range digital height gage
  • Starrett catalog number 3751AZ-6/150
  • Easy-to-read LCD with .32" high characters
  • Linear Accuracy: 0.001" (0.02mm)
  • Resolution: .0005" (0.01mm)
Rounded nose scriber cuts clean, sharp lines Easy-to-read LCD with .32" high characters This digital height gage features Inch-millimeter conversion & zero at any position. It has a manual ON/OFF button but will also turn off automatically after 5 minutes of inactivity. The stainless steel bar is hardened for long life. The scriber can reference zero from the base bottom. It also has a slide lock & fine adjustment thumb roll, plus it features a hardened, ground, and lapped base.

4118   Jog & Shuttle Controller, Tormach
The Jog/Shuttle controller is a self contained unit that can be used hand-held or mounted in a convenient surface of the mill. It has three sets of controls: - A spring loaded ring - A central jog wheel - Five buttons Manual machining is a breeze with full velocity and position control on all 4 axis (X, Y, Z, and A rotary). Far superior to a standard CNC positioning wheel, this USB connected electronic hand wheel has two concentric wheels controlling both position and velocity. The inner wheel operates as a standard CNC jog wheel and allows precise position control of any axis. Each click on the inner wheel will move an axis a specific distance. You can select 0.0001", 0.0010", 0.0100", or define your own increment sizes like 1/16, 1/32, or 1/64. The outer wheel is spring loaded to center and can be used to control velocity of any axis, anything from a very slow crawl to full rapids. This combination of velocity and position in one control is very handy. This product only works with Tormach machines because the software is already installed.

3414   Jog Dial for CNC Machines

  • The ideal Mach3 accessory
  • Fully configurable
  • USB Interface
  • Setup software included
  • Complete jog pendent
The Z-Bot Jog Dial II replaces the hand cranks on CNC mills. The Z-Bot Jog Dial II is a USB jog pendent controller developed to work in conjunction with the popular Mach3 CNC control software. It is supplied with an installation disc that contains a Mach3 custom plug-in. The Jog Dial II is highly flexible, easy to use, requires minimal configuration, and does not use any parallel port pins. The Jog Dial II USB controller has an inner and outer dial. Used for rapid coarse positioning, the outer dial will jog progressively faster, up to the full jog speed configured in Mach3, as the dial is turned further to the right or left of the center detent. The outer dial springs back to center position when released. Used for fine positioning, the inner dial jogs the machine one step increment, as configured in Mach3 for each "click." Four buttons are used to select the axis to jog. The fifth button is easily configured for a variety of Mach3 functions using the plug-in supplied.

4277   Lathe Chuck, 4 Jaw 5" for 6" Tormach Rotary Table
4 jaw independent chuck with reversible jaws, 125mm (4.9”) diameter with adapter plate and mounting hardware for the Tormach 6" motorized rotary table.

3195   M1 Lubricant, 12 oz. Aerosol Can, Starrett

  • Starrett M1 all-purpose lubricant in 12 oz. Aerosol can
  • Must be shipped by ground; not available outside the continental US
M1® is the "modern one" - the superior alternative. It dries and will not attract dirt or other contaminants as other leading lubricants do. Simultaneously dries as it protects, avoiding dirt and grime. Dries to leave a film that protects and lubricates. Lubricates without silicone. Penetrates to quickly to free frozen nuts, bolts and metal parts. Prevents rust and corrosion damage by providing a molecular shield that locks to the metal. Non-soluble in water so it displaces moisture to lift it away from the surface to be protected. Nonconductive, preventing short circuits. Applications for industry are nearly endless. Protect working surfaces of machinery; use in dip tanks to protect production parts in process, or apply on tools when stored. M1 is also ideal in highly corrosive situations that destroy metal equipment used in marine environments.

3179   M1 Lubricant, Case of 12 Aerosol Cans, Starrett

  • Starrett M1 all-purpose lubricant in 12 oz. Aerosol can
M1® is the "modern one" - the superior alternative. It dries and will not attract dirt, dirt or other contaminants as other leading lubricants do. Simultaneously dries as it protects, avoiding dirt and grime. Dries to leave a film that protects and lubricates. Lubricates without silicone. Penetrates to quickly to free frozen nuts, bolts and metal parts. Prevents rust and corrosion damage by providing a molecular shield that locks to the metal. Non-soluble in water so it displaces moisture to lift it away from the surface to be protected. Nonconductive, preventing short circuits. Applications for industry are nearly endless. Protect working surfaces of machinery; use in dip tanks to protect production parts in process, or apply on tools when stored. M1 is also ideal in highly corrosive situations that destroy metal equipment used in marine environments.

4236   Machine Arm, for Computer, Tormach

  • Standard VESA 75 mm or 100 mm mount
The machine arm can be mounted directly on the pre-drilled machine column. It has a rigid support with a machined cast iron support bracket, two sturdy steel extension arms, and a center pivot. Any LCD with a standard VESA 75 mm or 100 mm mount can be used.

4237   Machine Arm, for Tools, Tormach

  • Holds 20 Tormach Tooling System tools
The machine arm can be mounted directly on the pre-drilled machine column. It has a rigid support with a machined cast iron support bracket, two sturdy steel extension arms, and a center pivot. Includes a tool tray that holds 20 Tormach Tooling System tools.

3549   Magnetic Base Indicator Holder, Starrett

  • Starrett Magnetic Base with Attachments
  • Starrett catalog number 657AA
  • Powerfull magnetic base holds firmly to steel and iron surfaces
  • Push button turns magnet on or off for quick, one-hand set-up
For use with all Starrett Test, Back-Plunger, AGD, Dial and Miniature-Dial Indicators. Also accommodates similar indicators of other manufacturers.

3170   Magnetic Base Indicator Holder, Starrett

  • Magnetic base with triple-jointed arm and fine adjustment
  • Starrett catalog number 660
  • Positive On/Off switch
  • Very sensitive fine-adjustment thumb screw
The compact and versatile No. 660 Magnetic Base Indicator Holder has three adjustable pivots controlled by a single knob for fast, easy indicator positioning. Small but powerful magnetic base, with 70 lbs. (320 N) holding force. Base Dimensions: 1 3/16 x 1 9/16 x 1 3/8" (30 x 40 x 35mm) Horizontal and vertical mounting positions Will hold any indicator with a 3/8" (9.5mm) stem or standard dovetail mount Articulating arm with powerful central locking knob provides full 360° horizontal positioning and over 180° vertical positioning Maximum horizontal reach: 4.750" (120mm) Maximum vertical reach: 7.500" (190mm)

1836   Micrometer Set, 0-3", Starrett

  • Starrett 436 Series 0-3” Micrometer Set
  • Starrett catalog number ST436.1AXRLZ (was ST436AXRLZ).
All Starrett micrometer sets come with attractive, protective cases that keep micrometers and standards together, readily accessible. These are the most popular precision micrometers used by skilled workmen worldwide. They are accurate, rugged, and easy to use. Starrett satin chrome finish - no glare - resists rust Advanced sleeve design with staggered lines and distinct figures for precise and easy readability Convenient decimal equivalents on one-inch micrometers Balanced frame and thimble design insure easy handling Ring-type knurled lock nut for quick and sure locking Smooth friction thimble for uniform pressure, the combination ratchet and speeder for uniform pressure and quicker adjustment, or a plain micrometer that depends on your own "feel" Gracefully designed tapered frame for use in narrow slots and tight places Rigid one-piece steel frame ribbed for extra strength Extremely hard and stable one-piece spindle (the heart of our accuracy) Micro-lapped carbide measuring faces Quick and easy adjustment Starrett workmanship

3585   Micrometer, 0-1" Blade Type, Starrett

  • Starrett 0-1" blade type micrometer
  • Starrett catalog number 486P-1
  • Blades are .030" (0.8mm) thick
  • Will measure to 5/16" (8mm) depths.
This is a special function Starrett micrometer. It is designed for fast and accurate measurements of circular form tools, diameter and depth of narrow grooves, slots, keyways, recesses, and depths between lands and fins. Readability Features: Starrett satin chrome finish – no glare – resists rust, Advanced sleeve design with staggered lines and distinct figures for precise and easy readability. Ease-of-Handling Features: Balanced frame and thimble design insure easy handling and better readability, Speeder for quicker adjustment on all sizes, Non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder, The blades are .030" (0.8mm) thick, Blades will measure to 5/16" (8mm) depths. Accuracy and Long-Life Features: Rigid one-piece frame of drop forged steel, Extremely hard and stable one-piece spindle (the heart of our accuracy), Quick and easy adjustment Starrett workmanship

1845   Micrometer, 0-1" Digital, Starrett

  • Starrett 0-1" Electronic Digital Micrometer
  • Starrett catalog number 3732XFL-1
Starrett Digital Micrometer Action Features: ON/OFF button - also automatic OFF after 30 minutes of nonuse. Instant inch/millimeter conversion. Measurement HOLD button. Ability to zero tool at any position. Readability Features: Large, right-sized, high-contrast LCD digital readout is easy to read and reduces errors. Conventional inch or millimeter graduations standard. Attractive no-glare black wrinkle finish on the frame. Starrett no-glare satin chrome finish on thimble and sleeve. Ease-of-Handling Features: Balanced frame design for comfortable and accurate measuring. Ring-type knurled lock nut for quick and sure locking. Smooth friction thimble for uniform pressure. Gracefully designed tapered frame for use in narrow slots and tight places. Accuracy and Long-Life Features: Extremely hard and stable one-piece spindle (the heart of our accuracy). Micro-lapped carbide measuring faces. Starrett designed electronic microprocessor. One battery furnished for dependable power and over one year’s normal usage. Automatic OFF after 30 minutes of nonuse. Starrett workmanship.

3180   Micrometer, 0-1", Starrett

  • Starrett 0-1" micrometer
  • Starrett catalog number T230XRL
  • Accurate to 0.0001"
This is the jewel of precision micrometers used by skilled workmen worldwide. The spindle and anvil are sized at .235" (6mm) to reach places most micrometers cannot reach. The balanced frame and thimble design insure easy handling and better readability. A ring-type knurled lock nut provides quick and sure locking. The combination ratchet and speeder provides uniform pressure and quicker adjustment. A gracefully designed tapered frame allows use in narrow slots and tight places. The micrometer has a rigid one-piece frame of drop forged steel and an extremely hard and stable one-piece spindle (the heart of the accuracy). It features micro-lapped measuring faces, quick and easy adjustment, plus Starrett workmanship.

4651   Parallel cable for 3501 CNC Mill
This is the Parallel port cable that connects the 3501 CNC machine to the control computer.

4088   PathPilot Machine Controller, Tormach

  • Includes computer, monitor, mini keyboard, keyboard cover, and mouse
  • Tormach Performance Machine Controller (34119)
  • Standard LCD Monitor (30615)
  • Mini Keyboard (31371)
  • Keyboard Cover (31384)
Tormach provides a high performance computer pre-configured for machine control for general use with your PCNC 770 or PCNC 1100. This controller is recommended for performance applications such as large files, high block rates, or use of CAD or CAM on the controller. The configured computer includes a one year warranty with technical support provided by Tormach, power cable, and mouse.

3881   Pin Vise, 0.010 - 0.055", Starrett

  • Special tapered collet, provides maximum clamping surface
  • Smaller body diameter than the chuck to allow fast opening and closing and rapid rotation
  • Provides rapid rotation between the thumb and finger when used on small work
  • Starrett Catalog Number 240A
Starrett pin vises are useful for securely holding small stock, taps, drills, reamers, scribers, wire, small files, and other tools. The jaws on all are hardened and with a few turns of the binding nut, a firm grip may be obtained. Handles and binding nuts are nickel-plated except for the No. 166 Series. A hole extends through the full length of the handles so that wires of any length and any diameter up to the full size of the tool can be held.

3882   Pin Vise, 0.025 - 0.075", Starrett

  • Special tapered collet, provides maximum clamping surface
  • Smaller body diameter than the chuck to allow fast opening and closing and rapid rotation
  • Provides rapid rotation between the thumb and finger when used on small work
  • Starrett Catalog Number 240B
Starrett pin vises are useful for securely holding small stock, taps, drills, reamers, scribers, wire, small files, and other tools. The jaws on all are hardened and with a few turns of the binding nut, a firm grip may be obtained. Handles and binding nuts are nickel-plated except for the No. 166 Series. A hole extends through the full length of the handles so that wires of any length and any diameter up to the full size of the tool can be held.

3883   Pin Vise, 0.045 - 0.135", Starrett

  • Special tapered collet, provides maximum clamping surface
  • Smaller body diameter than the chuck to allow fast opening and closing and rapid rotation
  • Provides rapid rotation between the thumb and finger when used on small work
  • Starrett Catalog Number 240C
Starrett pin vises are useful for securely holding small stock, taps, drills, reamers, scribers, wire, small files, and other tools. The jaws on all are hardened and with a few turns of the binding nut, a firm grip may be obtained. Handles and binding nuts are nickel-plated except for the No. 166 Series. A hole extends through the full length of the handles so that wires of any length and any diameter up to the full size of the tool can be held.

4784   Pneumatic Hose Kit for PCNC Power Draw Bar/ATC

  • Provides necessary fittings for attaching the Power Draw Bar/ATC to the Syclone 4610 Air Compressor
This kit includes the necessary fittings for attaching the power draw bar and/or automatic tool changer for the Tormach PCNC 770 or 1100 to the Syclone 4610 Air Compressor. The kit includes 25 ft pneumatic tubing and assorted 1/4" NPT fittings.

3560   Pocket Level, Starrett

  • Starrett 3.5" pocket level
  • Starrett catalog number 135B
  • 3.5" (88 mm) long
  • Satin nickel plated finish
This is an extremely useful Starrett level that fits handily in the pocket with no sharp edges. Made from hexagonal stock with convex ends and satin nickel-plated finish.

4268   Power Drawbar, PCNC 1100

  • For Tormach PCNC 1100 CNC Milling Machine
  • Push-button drawbar operation
The Power Drawbar integrates with your PCNC 1100 for lightning-fast manual tool changes with the push of a button and eliminates the need to hand-tighten your drawbar. To change tools, a pneumatic multi-stack cylinder is actuated to depress the drawbar, releasing clamping pressure and opening the collet. When the cylinder is released, the drawbar tightens and the tool is held firmly in place. The power drawbar is designed for use with the Tormach Tooling System® (TTS), but easily pivots away to allow manual tightening of the drawbar if necessary for conventional R8 tooling. The Power Drawbar kit includes pneumatic cylinder assembly stack, drawbar, electronic control circuitry, push-button pendant, and all necessary pneumatic tubing and electronic wiring. Requires 90 psi air supply (not included).

4783   Power Drawbar, PCNC 770

  • For Tormach PCNC 770 CNC Milling Machine
  • Push-button drawbar operation
The Power Drawbar integrates with your PCNC 770 for lightning-fast manual tool changes with the push of a button and eliminates the need to hand-tighten your drawbar. To change tools, a pneumatic multi-stack cylinder is actuated to depress the drawbar, releasing clamping pressure and opening the collet. When the cylinder is released, the drawbar tightens and the tool is held firmly in place. The power drawbar is designed for use with the Tormach Tooling System® (TTS), but easily pivots away to allow manual tightening of the drawbar if necessary for conventional R8 tooling. The Power Drawbar kit includes pneumatic cylinder assembly stack, drawbar, electronic control circuitry, push-button pendant, and all necessary pneumatic tubing and electronic wiring. Requires 90 psi air supply (not included).

2423   Precision Machinists Level, 12", Starrett

  • Starrett machinist's improved level
  • Starrett catalog number 98-12
  • Ground and graduated main vials
  • Cross test vial and plumb vial
  • 0.005" per foot (0.42 mm per meter) accuracy
These Starrett Machinist Levels have ground and graduated main vials, and a cross test vial. The 12" level also has a plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage. The base of the precision machinists level features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work. The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length. Starrett Machinist Levels are the finest levels available, used for precision work that is typically required in industry. They all have these features: All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

2427   Precision Machinists Level, 18" and Case, Starrett

  • Starrett machinist's improved level in a wooden case
  • Starrett catalog number 98Z-18
  • Ground and graduated main vials
  • Cross test vial and plumb vial
  • 0.005" per foot (0.42 mm per meter) accuracy
This level comes in a wooden case. These levels have ground and graduated main vials, and a cross test vial. The 18" level also has a double plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage. The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work. The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length. These are the finest levels available, used for precision work that is typically required in industry. They all have these features: All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

2425   Precision Machinists Level, 18", Starrett

  • Starrett machinist's improved level
  • Starrett catalog number 98-18
  • Ground and graduated main vials
  • Cross test vial and plumb vial
  • 0.005" per foot (0.42 mm per meter) accuracy
These levels have ground and graduated main vials, and a cross test vial. The 18" level also has a double plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage. The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work. The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length. These are the finest levels available, used for precision work that is typically required in industry. They all have these features: All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

2320   Precision Machinists Level, 4", Starrett

  • Starrett catalog number 98-4
  • Ground and graduated vials.
This level has ground and graduated main vials. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage. The base of the level features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. The main level vials have graduations that are approximately 0.015" per foot (1.25 mm per meter). There are three lines on each side of the bubble. These are the finest levels available, used for precision work that is typically required in industry. They all have these features: All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

1846   Precision Machinists Level, 6", Starrett

  • Starrett machinist's improved level
  • Starrett catalog number 98-6
  • Ground and graduated main vials
  • Cross test vial
  • 0.005" per foot (0.42 mm per meter) accuracy
These levels have ground and graduated main vials, and a cross test vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage. The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work. The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length. These are the finest levels available, used for precision work that is typically required in industry. They all have these features: All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

3174   Precision Machinists Level, 8", Starrett

  • Starrett machinist's improved level
  • Starrett catalog number 98-8
  • Ground and graduated main vials
  • Cross test vial
  • 0.005" per foot (0.42 mm per meter) accuracy
These levels have ground and graduated main vials, and a cross test vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage. The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work. The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length. These are the finest levels available, used for precision work that is typically required in industry. They all have these features: All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

3556   Protractor, Rectangular Head, Starrett

  • Starrett steel protractor (0-180°), 6" blade, rectangular head
  • Starrett catalog number C183
  • Double graduations from 0-180° in two directions
  • The blade can be locked firmly at any angle by the lock nut
  • Satin chrome finish for ease of reading and resistance to rust
This is a highly useful and accurate tool for setting bevels, transferring angles, small squaring tasks, checking cutter clearances within certain limits, and many other applications. Double graduations from 0-180° in opposite directions permit the direct reading of angles and supplementary angles. The back of the tool is flat for ease of use.

1842   Radius Gage Set, Starrett

  • Starrett 25 piece radius gage set
  • Starrett catalog number S167CHZ
  • Radii Range: 1/64-17/64" 9/32-1/2"
  • Increments: 64ths, 32nds
Radii or fillets can be checked or laid out easier, faster, and more accurately with Starrett radius gages. Each set is furnished in an attractive case which provides complete protection and easy, instant selection of the right gage size for the job. Gage Features: Made of satin finish stainless steel - rust and stain resistant. Each gage is clearly marked with its radius. Each gage has five different gaging surfaces for both convex and concave radii. All gages have precision finished radii with extra smooth, accurate edges. Gage Holder Features: Any gage can be used with the Starrett No. 110 holder which is especially useful for checking radii in confined or hard-to-reach locations. Two slots are provided in the holder permitting gages to be held at 30° or 45°, either square in the slot or tipped to one side. The holder is 4" (100 mm) long, providing good reach and balance.

3838   Scanner, Tormach CNC
The Tormach CNC Scanner turns your PCNC into a high resolution 2D optical scanner and reverse engineering system. This is a unique tool has hundreds of uses, including toolmaking, artistry, repair and restoration, precision measurement, and quality assurance, to name a few. CNC Scanner utilizes a Mach3 plugin to take a series of photographs where the camera is automatically positioned for each photograph with CNC motion. A dimensionally scaled photomosaic is then assembled by stitching photographs together to build a larger image. After the photomosaic is assembled, it can be opened in Tormach CNC Scan CAD, a simple 2D CAD program with basic functionality for measuring distances and tracing shapes. This information can be exported as an industry standard .DXF file to other CAD/CAM programs for further work. CNC Scanner uses a spindle mounted adjustable focus USB microscope camera that features our Tormach Tooling System® quick change mounting system. It is also compatible with any CNC mill that utilizes Mach3 control software. Requires a spindle that is capable of holding 3/4" shank, such as R8 or MT-3 Co"plete CNC Scanner package contains all hardware and software necessary to integrate with a PCNC or other Mach3 controlled mill. Includes 1.3M USB 2.0 microscope featuring 10-50X continuous magnification AND 200X discrete magnification. Plastic shell. Included Software: Tormach CNC ScanCAD (with hardware license key dongle), and Mach3 Plug-ins for Tormach CNC Scope and CNC Scanner Utilities.

1834   Screw Pitch Gage, Inch 30 Leaves, Starrett
Starrett screw pitch gage with 30 leaves. Measures 60° threads from 4 threads per inch to 42 threads per inch. Starrett catalog number 6. Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

3176   Screw Pitch Gage, Inch 51 Leaves, Starrett

  • Starrett screw pitch gage with 51 leaves
  • Starrett catalog number 472
  • Measures 60° threads from 4 threads per inch to 84 threads per inch
Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

2617   Screw Pitch Gage, Metric 28 Leaves, Starrett
Starrett metric screw pitch gage with 28 leaves. Measures 60° threads from 0.25 mm to 2.50 mm. Starrett catalog number 156M. Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

3178   Screwdriver Set, Precision, Starrett

  • Set of 7 Starrett precision jewlers' screwdrivers in a case
  • Starrett catalog number S551Z-7
  • Set of 7 screwdrivers in a case
  • Durable hardened chrome-vanadium blade/contacts
The Starrett No. 551 Screwdrivers with soft-touch handle are lightweight and have a very ergonomic design, making them easy to work with. Yet the No. 551 is a rugged product. The blade/contacts are made of chrome-vanadium, molybdenum steel, hardened and chrome-plated, allowing them to hold up well in the toughest applications. Soft-touch handles are tapered and proportioned to blade for rapid rotation and spin-free finger control cap provides precise turning and control Flat Blade widths are: .060"/1.5mm, .080"/2.0mm, .100"/2.5mm, .120"/3.0mm Three Phillips blades: #00, #0, and #1 The precision-machined tips are top quality for an exact fit.

1824   Scriber with 2-3/8" Point, Starrett
Starrett hand scriber. Starrett catalog number 70A. The 1/4" diameter handle is of steel, knurled, and nickel plated. The scriber point is steel, properly hardened and finely tapered so that the location of the point is not obscured. The scriber is held firmly in the handle by a knurled chuck and when not in use can be reversed, telescoped into the handle, and locked by the chuck. The hexagon head prevents rolling. The scriber point is shipped reversed in the handle so the point is protected.

2655   Scriber with 2-7/8" Point, Starrett
Starrett hand scriber. Starrett catalog number 70B. The 3/8" diameter handle is of steel, knurled, and nickel plated. The scriber point is steel, properly hardened and finely tapered so that the location of the point is not obscured. The scriber is held firmly in the handle by a knurled chuck and when not in use can be reversed, telescoped into the handle, and locked by the chuck. The hexagon head prevents rolling. The scriber point is shipped reversed in the handle so the point is protected.

3885   Scriber with Two Tips, Starrett

  • Tempered well-finished steel
  • Points are finely tapered
  • Nickel plated knurled handle
Scribers are steel, properly tempered and well finished. The points are finely tapered so that the scriber point can be easily seen on the work. The handle, as well as the points, has a knurled grip. The length of the scriber is 9" (225mm). Points screw into the handle and fit either end. The knurled handle is nickel-plated.

3545   Small Hole Gage Set, 4-Piece, Starrett

  • Starrett 4- piece small hole gage set
  • Starrett catalog number S829EZ
  • Range of 0.125-0.500" (3.2-12.7 mm)
  • Hardened-ball measuring surface with two-point contact
  • Smooth, sensitive adjustment for better feel, giving more accurate measurements
These small hole gages are well balanced tools that are ideal for accurately measuring small holes, slots, grooves, and recesses in all kinds of work. The radius on each gage is less than the minimum diameter to be measured, which provides the two-point contact necessary for maximum accuracy. They have smooth, sensitive adjustment for better feel, giving more accurate measurements. The adjustment of the gage beyond their range is restricted by a safety stop that prevents breakage Accurate measurements are obtained by slightly "rocking" these gages in the hole to be measured. This will guarantee contact at the true diameter. The final size is then obtained by measuring over the ball contacts with a micrometer. Furnished in a vinyl pouch.

4109   Spindle, High Speed

  • 20,000 RPM Spindle Kit
  • Fits 3501 CNC Milling Machine
  • ER-16 Spindle nose
Fits serial numbers higher than 1-09-0001.

3172   Square, 3" Toolmakers, Starrett

  • Starrett toolmaker's grade stainless steel square
  • Starrett catalog number 3020-3
  • Blade length 2 31/32"
  • Beam length 1 31/32"
  • Squareness accuracy to .0002" (0.005mm) for every 6" (150mm)
These high quality toolmaker's squares feature hardened, ground, and lapped stainless steel construction on both the blade and the beam. The beam is machined at the inner corner for clearance.

3564   Square, 4" Toolmakers, Starrett

  • Starrett toolmaker's grade stainless steel square
  • Starrett catalog number 3020-4
  • Blade length 3 31/32"
  • Beam length 2 31/32"
  • Squareness accuracy to .0002" (0.005mm) for every 6" (150mm)
These high quality toolmaker's squares feature hardened, ground, and lapped stainless steel construction on both the blade and the beam. The beam is machined at the inner corner for clearance.

3173   Square, 6" Toolmakers, Starrett

  • Starrett toolmaker's grade stainless steel square
  • Starrett catalog number 3020-6
  • Blade length 5 29/32"
  • Beam length 3 29/32"
  • Squareness accuracy to .0002" (0.005mm) for every 6" (150mm)
These high quality toolmaker's squares feature hardened, ground, and lapped stainless steel construction on both the blade and the beam. The beam is machined at the inner corner for clearance.

3835   Stand, Deluxe Tormach PCNC 1100 CNC Mill
The Deluxe Machine Stand has been designed to maximize efficiency of your PCNC 1100. Chips and coolant stay contained with its generous tray depth, back and side guarding. The table mounted guard shields in the forward direction, while the integrated coolant system keeps you running at maximum speeds and feeds. Shown with the PCNC 1100 mill (not included).

3833   Stand, Tormach PCNC 770 CNC Mill
The PCNC 770 stand is a welded steel base designed to support the weight of the PCNC 770 without compromising portability – a pallet jack can be easily positioned underneath the base when the mill needs to be moved. Includes generous left and right side chip trays with leak resistant drip channeling, leveling feet, and storage compartments for both tools and control computer. Shown with the PCNC 770 mill (not included).

3175   Steel Rule, 12" 5R Flexible, Starrett

  • Starrett 12", 5R graduations, full-flexible steel rule.
  • Starrett catalog number C305R-12.
  • Graduation No. 5R - quick-reading 10ths, aircraft quick-reading 100ths, 32nds and 64ths.
  • This rule is 1/2" wide and 1/64" thick.
All Starrett precision steel rules are photoengraved and tempered for long life and flexibility. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

1828   Steel Rule, 150 mm 31 Flexible, Starrett
Starrett 150 mm (5 3/4") No. 31 graduations, full-flexible steel rule. Starrett catalog number C331-150. Graduated 150 mm end-to-end on mm edges and to 5-3/4" with a blank end on the inch edges. Graduations No. 31 - 32nds and 64ths on one side; mm and 1/2 mm on reverse. All four edges graduated from same end. This rule is 1/2" wide and 1/64" thick. All Starrett steel rules are photoengraved and tempered for long life and flexibility. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

1826   Steel Rule, 6" 4R Flexible, Starrett
Starrett 6", 4R graduations, full-flexible steel rule. Starrett catalog number C304R-6. Graduation No. 4R - 8ths, 16ths, quick-reading 32nds and 64ths. This rule is 1/2" wide and 1/64" thick. All Starrett precision steel rules are photoengraved and tempered for long life and flexibility. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

2233   Steel Rule, 6" 4R Rigid, Starrett

  • 4R Graduations - 8ths, 16ths, quick-reading 32nds and 64ths.
  • Starrett catalog number C604R-6
  • Rule is 3/4" wide and 3/64" thick
  • Spring-tempered steel rule
All Starrett precision steel rules are photoengraved and tempered for long life and flexibility. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

1827   Steel Rule, 6" 5R Flexible, Starrett
Starrett 6", 5R graduations, full-flexible steel rule. Starrett catalog number C305R-6. Graduation No. 5R - quick-reading 10ths, aircraft quick-reading 100ths, 32nds and 64ths. This rule is 1/2" wide and 1/64" thick. All Starrett precision steel rules are photoengraved and tempered for long life and flexibility. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

3434   T-Handle Tap Wrench for #0 to #10 Taps, Starrett

  • Starrett T-handle tap wrench
  • Starrett catalog number 93A
  • For holding taps, drills, reamers, and other small tools to be turned by hand
  • Fits machine screw taps from #0 to #10
  • Fits fractional thread taps from 1/16" to 3/16"
The body of this T-handle tap wrench is centered, enabling the worker to use it on lathe centers or on an upright drilling machine to start the tap straight. The jaws conform to the tool being held, making it rigid and less apt to loosen. They are properly heat treated to withstand ordinary shop use. The wrench has a sliding handle that is frictionally held. This feature permits the handle to be removed entirely or positioned so that leverage can be applied when working in close quarters. These tools are designed to hold square shanks. Round shanks can be gripped, but care must be used. Excessive tightening may break the binding nut.

3555   T-Handle Tap Wrench for 1/4" to1/2" Taps, Starrett

  • Starrett T-handle tap wrench
  • Starrett catalog number 93C
  • For holding taps, drills, reamers, and other small tools to be turned by hand
  • Fits fractional thread taps from 1/4-1/2"
The body of this T-handle tap wrench is centered, enabling the worker to use it on lathe centers or on an upright drilling machine to start the tap straight. The jaws conform to the tool being held, making it rigid and less apt to loosen. They are properly heat treated to withstand ordinary shop use. The wrench has a sliding handle that is frictionally held. This feature permits the handle to be removed entirely or positioned so that leverage can be applied when working in close quarters. These tools are designed to hold square shanks. Round shanks can be gripped, but care must be used. Excessive tightening may break the binding nut.

3554   T-Handle Tap Wrench for 7/32" to 7/16" Taps, Starrett

  • Starrett T-handle tap wrench
  • Starrett catalog number 93B
  • For holding taps, drills, reamers, and other small tools to be turned by hand
  • Fits fractional thread taps from 7/32-7/16"
The body of this T-handle tap wrench is centered, enabling the worker to use it on lathe centers or on an upright drilling machine to start the tap straight. The jaws conform to the tool being held, making it rigid and less apt to loosen. They are properly heat treated to withstand ordinary shop use. The wrench has a sliding handle that is frictionally held. This feature permits the handle to be removed entirely or positioned so that leverage can be applied when working in close quarters. These tools are designed to hold square shanks. Round shanks can be gripped, but care must be used. Excessive tightening may break the binding nut.

3550   Tap and Drill Gage, Starrett "Time Saver"

  • Starrett hardened tap and drill gage
  • Starrett catalog number 185
  • Drill sizes number 1-60 (0.228-0.040")
This highly useful gage shows at a glance the correct size tap drill for any common size machine screw tap in "NF" National Fine or "NC" National Coarse Thread Series, that will leave the right amount of stock for approximately 65% full thread. The gage also shows the correct body size drill to use. In addition, there are 60 holes marked with the number size and decimal equivalent of the drill that fits each hole. Example: a size 2-56 tap (No. 2 tap with 56 pitch) calls for a No. 50 tap drill and a No. 44 body drill. The gage has a black matte finish with information steel stamped on one side and white marked on the reverse side for quick, clear reading. The gage is thoroughly tested for accuracy after hardening. Approximate size, 5/64" thick by 2 5/16" wide by 6 1/4" long.

2621   Tap Wrench 3-5/8", Starrett

  • Body length: 3-5/8" (90mm)
  • Capacity tap size: No. 0-14
  • Square shank: 1/4" (6.35mm)
  • Starrett catalog number 174
This is a well-designed tap wrench, ideal for holding smaller diameter taps, drills, reamers, and other tools up to 1/4" (6.35 mm) in diameter. It works with 0-14 tap sizes. It will firmly grip round or square shanks, is lightweight and well proportioned. The gripping surface is properly heat treated to withstand any ordinary use.

3177   Tap Wrench 6", Starrett

  • Body length: 6" (150 mm)
  • Capacity tap size: 1/16"-1/4" (1.6-4.7 mm)
  • Square shank: 3/32"-5/32" (2.4-4 mm)
  • Starrett catalog number 91A
Starrett No. 91 Tap Wrenches are strong and well proportioned. They are nicely finished and the gripping surfaces are properly tempered. They will firmly hold square or round shanks. Plunger operated by a knurled sleeve. The spring inside the sleeve causes the plunger to back off when pressure is removed. NOTE: The round shanks can be gripped, but care must be used. Excessive pressure may break the moveable V-jaw.

5122   Tap Wrench 9", Starrett

  • Body length: 9" (225 mm)
  • Capacity tap size: 3/16-1/2" (4.7-12.7mm)
  • Square shank: 5/32"-9/32" (4-7 mm)
  • Starrett catalog number 91B
Starrett No. 91 Tap Wrenches are strong and well proportioned. They are nicely finished and the gripping surfaces are properly tempered. They will firmly hold square or round shanks. Plunger operated by a knurled sleeve. The spring inside the sleeve causes the plunger to back off when pressure is removed. NOTE: The round shanks can be gripped, but care must be used. Excessive pressure may break the moveable V-jaw.

1840   Telescoping Gage Set, 4-Piece, Starrett

  • Starrett telescoping gage set
  • Starrett catalog number S579GZ
  • Range: Four gages, 5/16" to 2-1/8"
Starrett telescoping gages are used for determining the true size of holes, slots, and recesses up to 2-1/8" (54 mm). The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. These tools must be slightly "rocked" in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer. The No. 579 Series telescoping gages have handles that are rigidly attached to the contact plungers and are automatically self-centering. Also, the No. 579 gages have two telescoping contacts. The handles are approximately 2-3/8" (60 mm) long. Constant spring tension gives uniform contact pressure and both plungers are easily locked at any desired setting.

2959   Telescoping Gage Set, 6-Piece, Starrett

  • Starrett telescoping gage set
  • Starrett catalog number S579HZ
  • Range: Six gages with a range of 5/16" to 6"
Starrett telescoping gages are used for determining the true size of holes, slots, and recesses up to 6" (152 mm). The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. These tools must be slightly "rocked" in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer. The No. 579 Series telescoping gages have handles that are rigidly attached to the contact plungers and are automatically self-centering. Also, the No. 579 gages have two telescoping contacts. The handles are approximately 2-3/8" (60 mm) long. Constant spring tension gives uniform contact pressure and both plungers are easily locked at any desired setting.

4906   Thickness Gage Assortment, Starrett

  • 12" long by 1/2" Wide
  • 0.001" through 0.030" thick
  • Finest tempered steel with rounded edges for ease of use
  • Marked every 6" with thickness with 3/16" hole for hanging
  • Starrett catalog number S667A
Starrett thickness gage or feeler stock assortment This set consists of one each of 32 different pieces, 1/2" wide x 12" long from 0 001" through 0 030" thick. The gages have rounded ends and rounded edges to make the gages easier to work with. They are marked every 6" with the thickness and have a convenient 3/16" (5mm) hole punched in the end for hanging. These gages are widely used in automotive, aviation, diesel and farm equipment manufacture and service and also in jig, fixture, gage and experimental work.

1843   Thickness Gage Set, Starrett
Starrett thickness gage set (feeler gage) Starrett catalog number 66T. 26 Tapered Leaves, 1/2 - 1/4 x 3-1/32" Range .0025-.025" Leaf Thickness (Inches): .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .012, .013, .014, .015, .016, .017, .018, .019, .020, .021, .022, .023, .024, .025 These gages are used in automotive, aviation, diesel, and farm equipment manufacture and service, and also in jig, fixture, gage, and experimental work. Especially useful in adjusting tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins, and gaging narrow slots. Leaves made of finest tempered-steel, carefully finished to correct thickness, individually tested and marked with thickness Locking device on most gages - permits securely locking one or more leaves in position Leaves easily removed or replaced Rugged, substantial steel case protects leaves

1825   Tool and Instrument Oil, Starrett

  • Starrett catalog number 1620
This oil is the same extra-fine lubricant made to Starrett specifications and used in the Starrett factory to lubricate and protect their precision measuring tools and instruments. It is also perfect for all mechanics, homeowners, hobbyists, and sportsmen who require the finest all-purpose oil. Special high-refining makes Starrett Tool and Instrument Oil colorless, ensures thorough lubrication of close-fitting parts at high temperatures and below zero, and provides a strong lasting film over all areas requiring protection against rust. This oil has not been adulterated by additives for color and odor.

4910   Tool Conversion Kit, Tormach TTS

  • Convert many conventional tools into Tormach Quick Change tools
  • Works with most tools with a 3/4" straight shank and a shoulder wider than 3/4"
  • Use for face mill, fly cutters and boring heads
  • Press Fit on .750" shaft, No adhesive required
  • Groove Geometry is compatible with Tormach ATC
This kit can be used to convert many conventional tools into Tormach Tooling System tools.

3869   Tooling Package, 3501 CNC Mill

  • 3” Toolmakers Screwless Vise and 10 Pairs of 3” long thin parallels
  • Precision 1-2-3 Blocks and 36-piece Clamping Kit – 8mm T-Slot
  • Two 6-piece end mill sets, 2 & 4 flute and 5 Center Drills
  • Four 2MT End Mill Holders
  • Combination Edge and Center Finder
Tooling package with all the essentials for a 3501 CNC Mill. Toolmakers Vise: 3” toolmakers screwless vice has a one-piece body. The body and jaws are hardened to RC 58-62. All sides are flat, square and parallel to 0.0002". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects. The vise jaws are 1.38" deep and open to 3.78" capacity. The vise is 7.28" long, 2.76" tall and 2.785" wide. Thin Parallels: Set of ten pairs, 1/8” thick x 3” long, in fitted case. Made of high-grade alloy steel hardened to 52–58 RC, parallel within 0.0002” on top and bottom. Parallel heights: 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, and 1-5/8” (pairs matched within 0.0004”). Clamping Kit: 36-piece kit fits 8mm T-slots on a micro mill. Includes 10 M6 studs, 4 step block pairs, 6 T-slot nuts, 6 flange nuts, and 6 step clamps. End Mills: 6-piece 4 flute & 6-piece 2 flute, HSS, center cutting end mill sets. Sizes 1/8", 3/16", 1/4", 5/16", 3/8", and 1/2". All with 3/8" shanks. End Mill Holders: Set of four 2 Morse taper, high-grade tool hardened steel end mill holders. Sizes 3/16", 3/8", 1/2", and 5/8". The drawbar thread is 3/8"-16. This set includes all the sizes required for common end mills. 1-2-3 Blocks: Ground and hardened on all sides to 50-60 RC, sizes 1” x 2” x 3”. Parallel within 0.0002”, flat within 0.0002”, and square within 0.00021”. Set has two matched blocks, 23 holes of which 5 are threaded 3/8”-16 NC. Center Drills: Five sizes combined drills and countersinks made of high speed steel. Sizes 1, 2, 3, 4, and 5 with 60 degree counter sinks. This tooling package is perfect for KX1 CNC Mills.

2452   Universal Back-Plunger Dial Indicator, Starrett

  • Starrett Back-Plunger Dial Indicator
  • Starrett catalog number 196A1Z
  • 0-100 with 3 contact points, adapter, 4 attachments in case
  • Accurate and reliable
  • Rugged, with few moving parts
The Starrett No. 196 Indicator is one of the most versatile indicators available, and it is the "granddaddy" of them all. Over the years this tool has been improved by methods and materials but the basic design is unchanged. The design is older than most of you and has withstood the test of time and beaten all challengers because it is: Accurate and reliable Simple to operate Rugged, with few moving parts Smooth in operation Inexpensive - the best indicator value you can buy This indicator with graduations to .001" will handle by far the majority of jobs. Shank diameter is 1/4" (6.3 mm). For full use, first choose the proper contact from the three hardened contact points that are included. Then the contact is brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.

2227   Universal Bevel, Starrett

  • Starrett Universal Bevel
  • Starrett catalog number 47
  • Wide variety of adjustment and angle settings
  • Blade is 6" (150 mm) long
This improved Universal Bevel has both offset and straight slots in the blade, in combination with straight slots in the stock that allow for a wide variety of adjustment and angle settings that are impossible to obtain with many ordinary bevels. Length of the blade is 6" (150 mm), and the stock, 3-1/2" (90 mm). The stock lies flat on the work or paper since the head of the clamping bolt is recessed. This tool can be set to duplicate an angle from a master, or it may be easily converted into a Bevel Protractor by using this tool with the No. 193 Protractor (PN 1833).

5590   Vise, 3" CNC Mill

  • Lock down type
  • Compact size allows multiple vises on CNC mill table
  • Flatness of all sides within 0.001"
  • Mount upright, or on left or right sides
  • Sides parallel within 0.0005" in 4"
This vise is designed for CNC milling machines where a swivel base is never required. The compact size allows you to mount multiple vises on the CNC mill table so you can machine several items in one setup. The vise closes with up to 3000 lbs. of clamping force. The vise is 3.15" (90mm) wide, 9.06" (230mm) long, and 2.76" (70mm) tall. The jaws are 0.944" (24mm) deep and open 2.95" (75mm).

3857   Vise, 4" CNC Mill

  • Lock down type
  • Compact size allows multiple vises on CNC mill table
  • Flatness of all sides within 0.001"
  • Mount upright, or on left or right sides
  • Sides parallel within 0.0005" in 4"
This vise is designed for CNC milling machines where a swivel base is never required. The compact size allows you to mount multiple vises on the CNC mill table so you can machine several items in one setup. The vise closes with up to 3000 lbs. of clamping force. The vise is 4.13" wide, 11.25" long, and 4" tall. The jaws are 1.5" deep and open 4".

4834   Vise, 5" CNC Mill, Tormach

  • Lock down type
  • Compact size allows multiple vises on CNC mill table
  • Flatness of all sides within 0.001"
  • Mount upright, or on left or right sides
  • Sides parallel within 0.0005" in 4"
A versatile and compact 5" CNC Vise that can be mounted upright or on either side. Includes a Bridge Clamp for compact side by side mounting – up to 3 vises on the PCNC 1100 or 2 vices on the PCNC 770. Also features 6 tapped holes for mounting to base plate or trunnion. Vise includes economy cast steel handle, not shown here.

2278   Wiggler Center Finder Set, Starrett
Starrett Wiggler Center Finder. Starrett catalog number S828. The wiggler center finder and three different attachments adapt to countless applications and are readily interchangeable. The attachments are snapped in the chuck without removing the collet nut and are clamped by a ball swivel-joint, which permits adjustment to an angular position or true concentricity. With the pointed shank, working centers can be quickly and accurately located. Spring tension on the ball of the point permits guiding the point to true concentricity so that the work can be brought into perfect alignment with the machine spindle. The ball contact is useful in locating work by first bringing the contact (ball diameter 0.250" or 6.3 mm) against the work, a slot, hole, shoulder, or end, and indexing the work to the desired position relative to the spindle. The disc contact, which has a small disc at the end (0.100"/2.5 mm) diameter, permits use in more confined areas such as slots or shallow holes. The wiggler shank is 0.375" diameter.

2279   Wiggler Center Finder, Starrett
Starrett Wiggler Center Finder. Starrett catalog number 828A. The wiggler center finder and pointed shank quickly and accurately locates working centers. Spring tension on the ball of the point permits guiding the point to true concentricity so that the work can be brought into perfect alignment with the machine spindle. The attachment is snapped in the chuck without removing the collet nut and is clamped by a ball swivel-joint, which permits adjustment to an angular position or true concentricity.

Contact Us / Company Info / Privacy Policy / Warranty / Terms & Conditions / Payment Options / Shipping Rates & Policies
Copyright © 2007-2017 LittleMachineShop.com

Phone: (800) 981-9663
